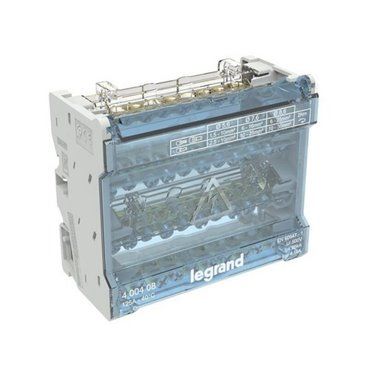

Repartidor modular de barras escalonadas 4 Polos, 125 A, 10 salidas, 6 módulos

LEGRAND 400408 | 4P 125A 10-output modular staggered busbar distributor 6 modules

LEGRAND 400408
Available
€52.04
VAT included
Staggered modular distributors. Mounting on DIN rail. Possibility of adding IP2X terminals to increase the number of earth or neutral conductors. They include removable and rotating lid. Quick and easy to install. Transparent insulating protection between each bar and on the back of the distributor. Tertrapolar. Imax: 125 A. Rigid bar connections: 3x10 to 25mm² + 7x2.5 to 10mm². Flexible bar connections: 3x6 to 16mm² + 7x1.5 to 10mm². Ipk: 26kA. Icw: 4.5kA. Number of modules: 6
153 Items

Certificación
Wrapper image

EAN
3414971978645
Manufacturer
LEGRAND
Weight (kg)
0
Reference
LEGRAND 400408
Certification
CE
