Repartidor modular de barras escalonadas 2 Polos, 40 A, 12 salidas, 6 módulos

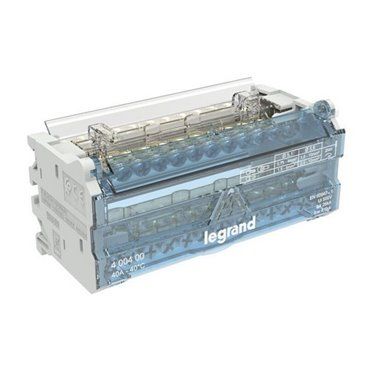

LEGRAND 400400 | 2P 40A staggered busbar modular distributor 12 outputs 6 modules

LEGRAND 400400
Available
€32.37
VAT included
Staggered modular distributors. Mounting on DIN rail. Possibility of adding IP2X terminals to increase the number of earth or neutral conductors. They include removable and rotating lid. Quick and easy to install. Transparent insulating protection between each bar and on the back of the distributor. Bipolar. Imax: 40 A. Rigid bar connections: 2x2.5 to 10mm² + 10x1.5 to 6mm². Flexible bar connections: 2x1.5 to 10mm² + 10x0.75 to 4mm². Ipk: 26kA. Icw: 4.5kA. Number of modules: 6
30 Items

Certificación
Wrapper image

EAN
3414971978409
Manufacturer
LEGRAND
Reference
LEGRAND 400400
Certification
CE
Safety warning
No
