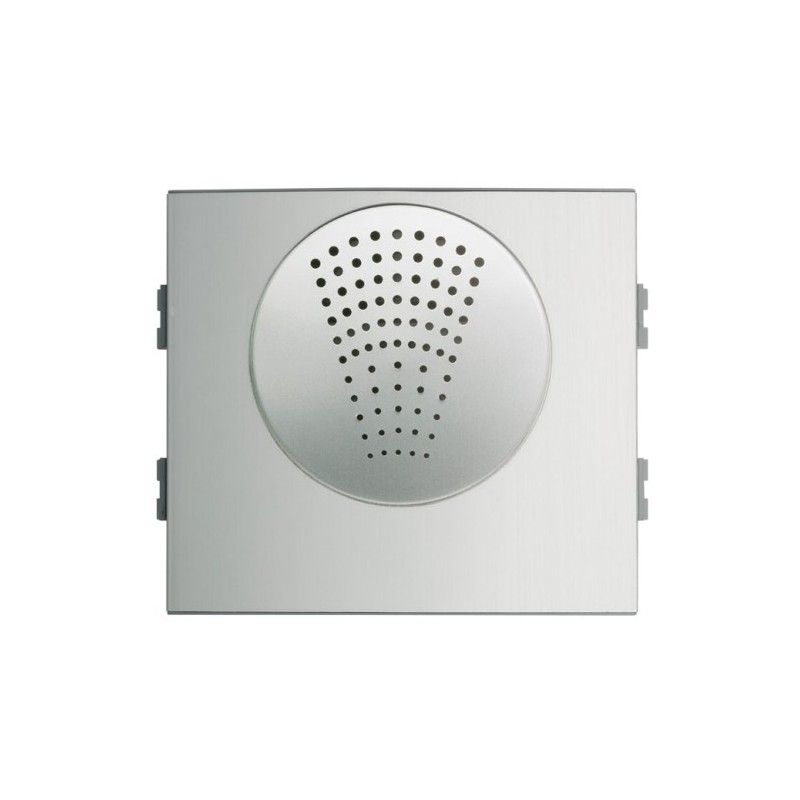

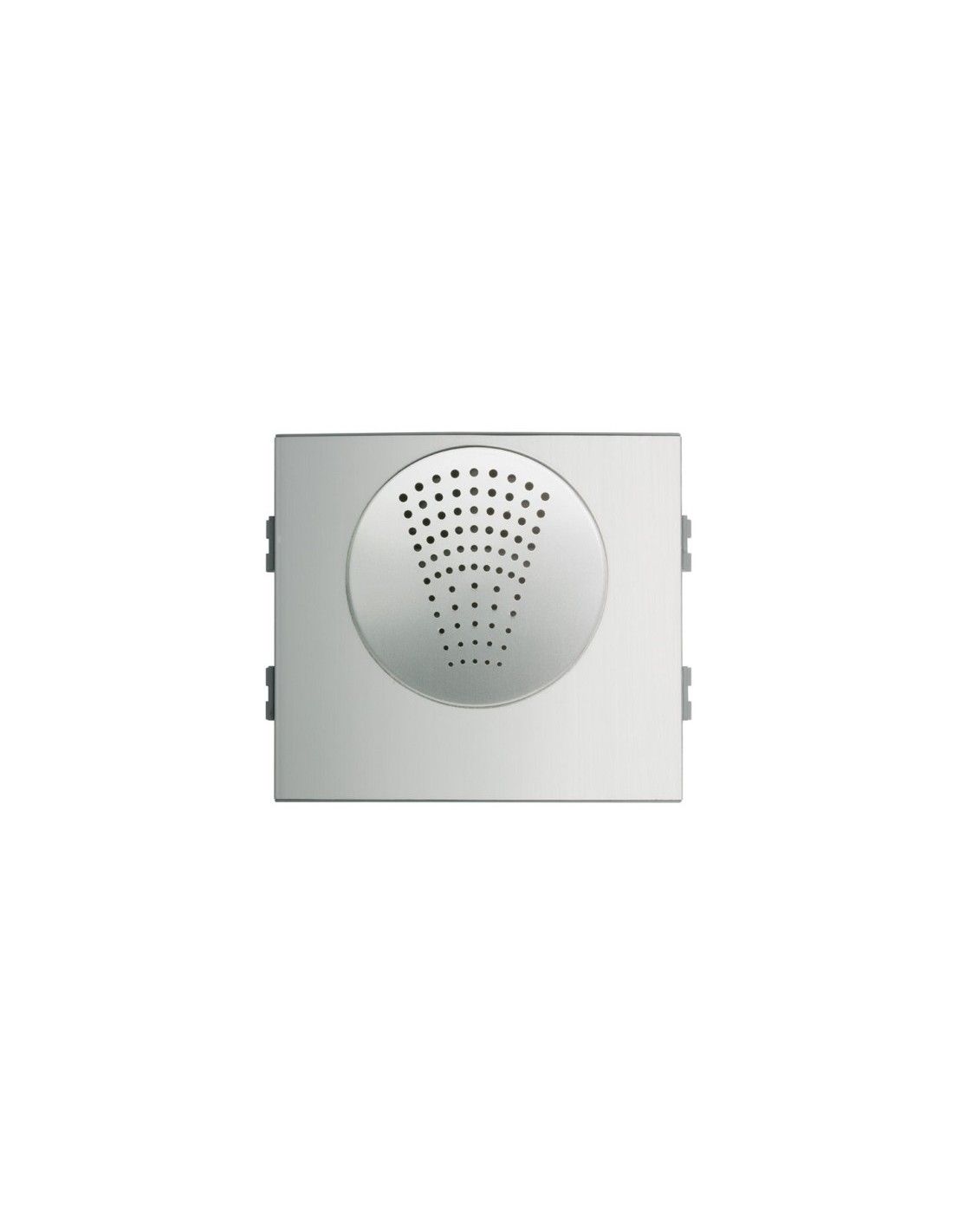

VDS FERMAX 7415 audio module

DESCRIPTION

Amplifier module to be incorporated into SKYLINE door entry panels.
It is the module (speaker unit) that incorporates the electronic circuits Necessary for the operation of the audio system, door opening, etc. .. in the intercom facilities. It has volume adjustments, both in the street-house and house-street direction, so that the installer can adjust the optimal level.

The New SKYLINE electronic and video door entry panel is a robust and elegant panel, It stands out for its durability and beauty, resistance and reliability.

SKYLINE is the new line of entrance panels for electronic and video entry phones with a continuous profile and modular composition from Fermax. The line is made up of 8 frames of different sizes where the different modules are easily fitted: push buttons, card holder, camera, amplifier, access control, etc. Frames allow a specified number of modules to be attached. There are two sizes of modules: V and W. The W modules are twice the size of the V modules.
Module Measurements.
- V Module: 105.2x47.5 mm (width-height).
- Module W: 105.2x95 mm (width-height).

It is possible to combine two or more plates, as long as they are from the same series, to have a greater capacity for pushbuttons and accessories.

VDS system:
Simplified installation of doorphone and video doorphone system, which does not use call wires per home.
The call is made by transmission of a digital call code generated by the VDS amplifier.

- In new construction, the installation can be done with the following type of cabling: UTP CAT5/5-Wire/3-wire + Coaxial (video). It allows managing buildings with up to 199 homes, 2 entrance entrances and a concierge center.
Maximum distance from first access to last home: 200 m.

- In replacement, the change can be made from analogue doorphone to video doorphone taking advantage of the existing wiring. The capacity and distance of the system will depend on the wiring of the installation.

The VDS amplifier includes a voice synthesizer as standard. When the lock release is activated, a message is issued: "door open, close after entering".

The residential terminals require a simple programming that is carried out from the entrance panel. Through this programming, each terminal (telephone or monitor) is assigned a calling code.

Communication is private.

Wiring
Audio: 3-wire bus .
Video: UTP CAT5/5 wires/3 wires + Coaxial (video).
Maximum distance from first access to last home: 200 m.

Module to be located in the frame of the New SKYLINE plate.
