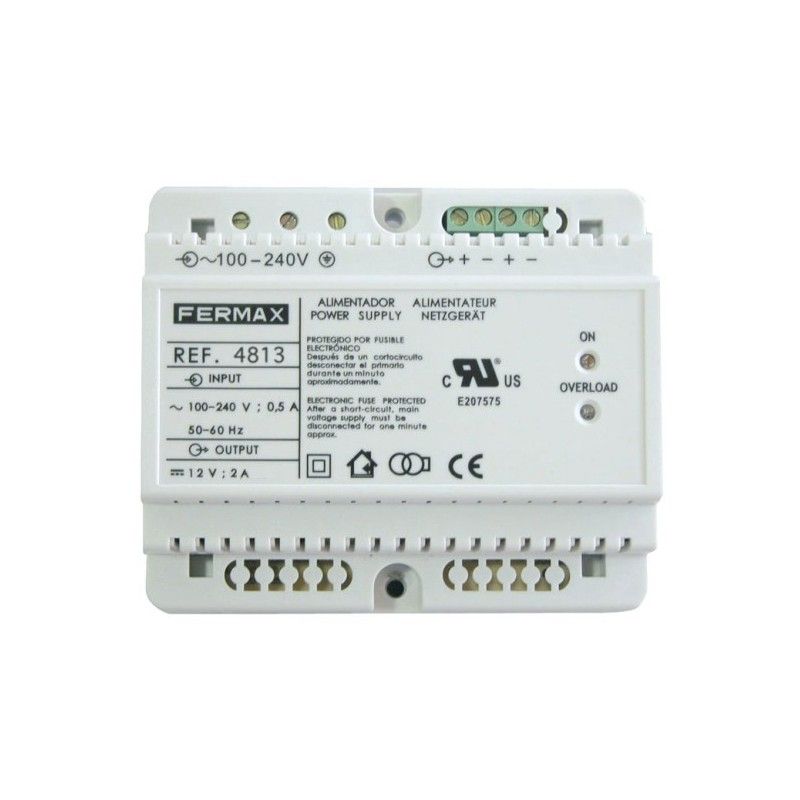

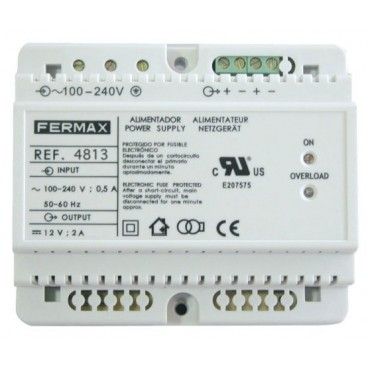

It is used to power the different equipment of an installation of Fermax.
Built in material self-extinguishing VO.
Include a set of caps to protect the connection terminals.
Format DIN rail-6 to facilitate its installation in the interior of an enclosure of electrical equipment, or it can be screwed directly on the wall.
Dimensions DIN 6: 105x 90 x60 mm
Input voltage: 100-240 Vac
Output voltage: 12 Vdc
Maximum output current: 2A
Protection input: PTC and fuse from 2.3 To
Protection outputs: Limitation electronics for overload and short-circuit
Input frequency: 50-60 Hz
Has two indicator leds operation:
- Led ON power: indicates that the feeder is in operation.
- Led OVERLOAD lit: indicates maximum current exceeded (it will be necessary to decrease the load of the installation or add feeder/is an additional/is).
- Led ON+OVERLOAD blinking: indicates short circuit.
Weight: 0,3146 kg
Product dimensions packed: 11x9,5x6,5 cm
EAN 13: 8424299048130
