Framework Skyline
Manufacturer: FERMAX
The New plate SKYLINE entryphone and video entryphone, which is a plate-robust and elegant, which stands out for its durability and beauty, strength and reliability.
SKYLINE is the new line of plates of street of door phone and video door profile continuous and modular composition of Fermax. The line consists of 8 frames of different sizes which will easily fit the different modules: push buttons, card holder, camera, amplifier, access control, etc., frames enable you to add a certain number of modules. There are two module sizes: V and W. The modules W measure the double modules V.
Measures Modules.
- Module V: 105,2x47,5 mm (width-height).
- Module W: 105,2x95 mm (width-height).
It is possible to combine two or more plates, provided that they are of the same series, to have a greater capacity for pushbutton and accessories.

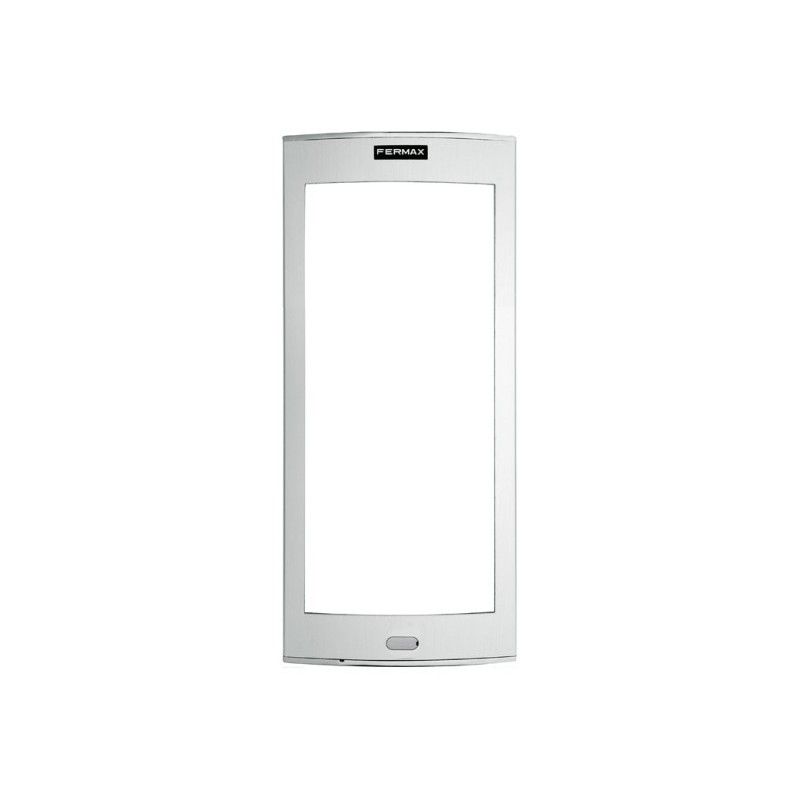

Framework SKYLINE 5V.
Plate of the 6-Series.
- Measures plate: 130x294 mm (width-height).
- Measures flush box: 115x280x45 mm (width-height-deep).
- Measures surface box: 130x294x33 mm (width-height-deep).
Weight: 0,468839 kg
Product dimensions packed: 31,5x13,8x4,2 cm
EAN 13: 8424299073354
Located in our accessories section for doormen and video door entry system, all the cover frames for the products FERMAX. If you can't find any reference, please contact us.
