Description

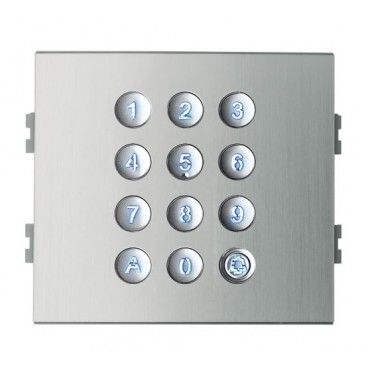

The module keyboard/digital direct allows you to make calls, by entering the corresponding code assigned to the housing..
Incorporates access control functions using codes of keyboard (pre-programmed), activating the door opener when you dial a particular code.
Each technology can manage a number of codes of door opening.
Available modules:
- Module, digital keyboard, BUS2/VDS/MDS
- Module keyboard direct BUS2/VDS
Module to locate in the framework of the New plate SKYLINE.
Specifications
Measure Module.
- Module W: 105,2x95 mm (width-height).
Each technology can manage a number of codes of opening door:
- Module, Digital Keyboard, BUS2/VDS/MDS:
* BUS2/VDS: 350 codes
* MDS: 1020 codes
- Module keyboard direct BUS2/VDS:
* BUS2/VDS: 1 code
Basic modules for the configuration of plates according to technologies:
- Module, digital keyboard, BUS2/VDS/MDS
* Digital plate BUS2: Mód. Amplifier BUS2 + Module digital display BUS2/VDS + Mód. Digital keyboard, BUS2/VDS/MDS
* Digital plate VDS: Mód. VDS amplifier + Module digital display BUS2/VDS + Mód. Digital keyboard, BUS2/VDS/MDS
* Digital plate MDS: Mód. Amplifier 4+N + Module digital display MDS + Mód. Digital keyboard, BUS2/VDS/MDS
- Module keyboard direct BUS2/VDS
* Board Direct BUS2: Mód. Amplifier BUS2 + Module keyboard direct BUS2/VDS
* Board Direct VDS: Mód. VDS amplifier + Module keyboard direct BUS2/VDS
Weight: 0,3021 kg
Product dimensions packed: 13,5x10x6 cm
EAN 13: 8424299074399
