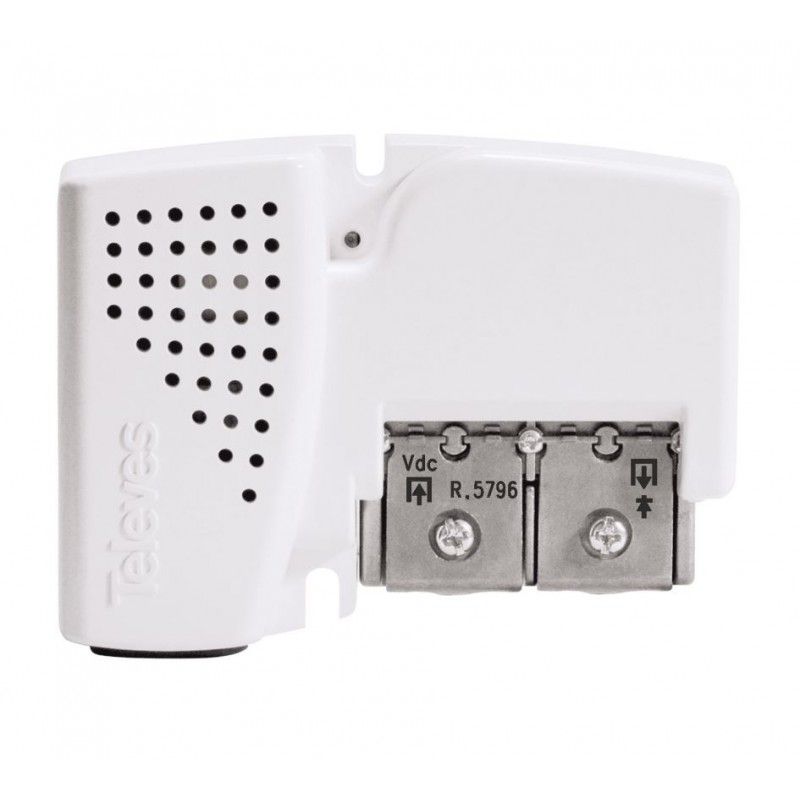

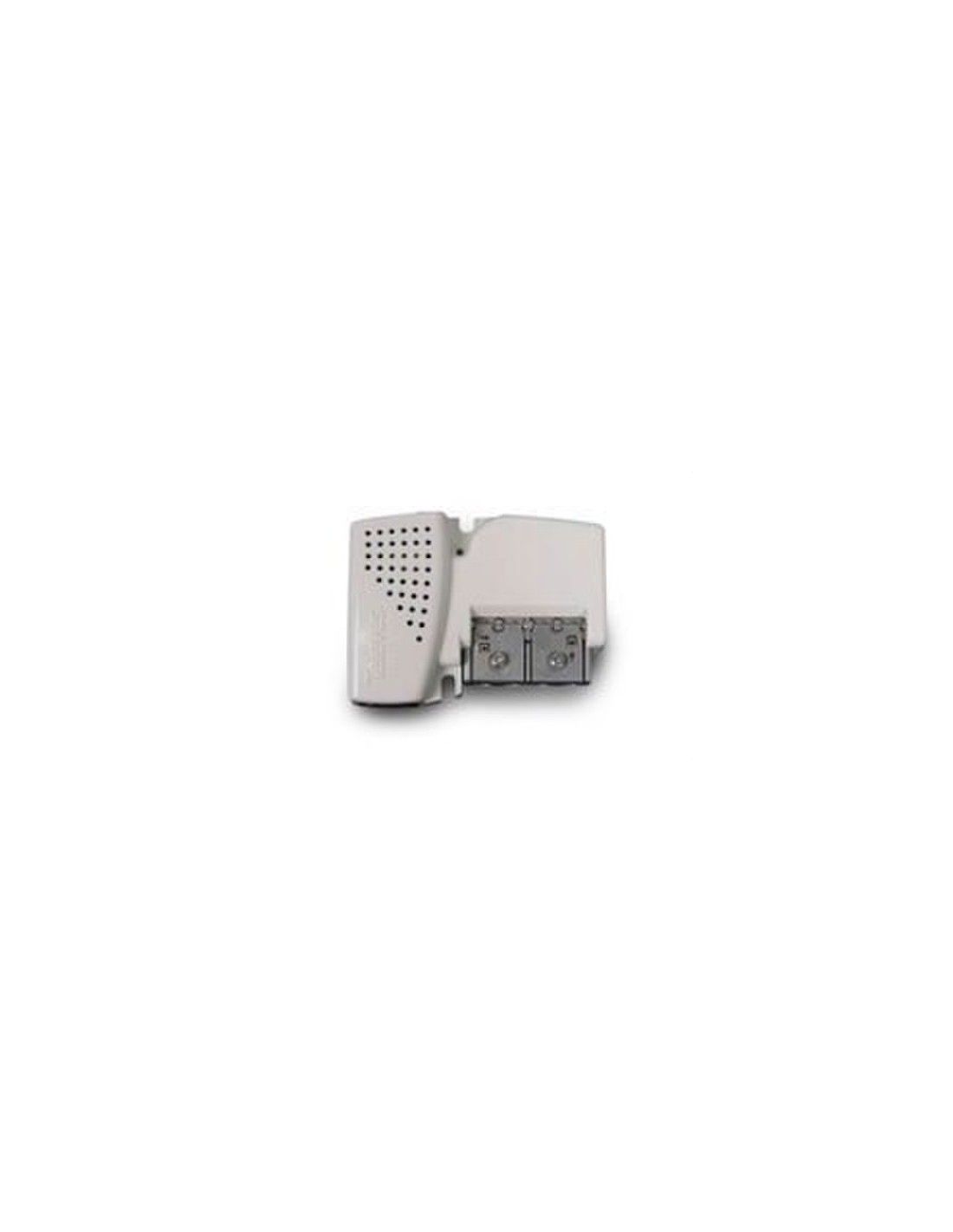

PicoKom power supply for FImix 12V 1 Televes 5796 output

• Source switched high-performance: savings in the consumption of up to 40%
• Very low power consumption
• Aesthetic design and size ultrarreducido: can be installed in junction boxes 100x100mm
• Connection system EasyF
• Manufacturing completely automated and subjected to rigorous quality controls

• Heavy duty screw in wall
• Functionality FImix that allows allows you to operate in a satellite facility in compliance the power supply of the LNB

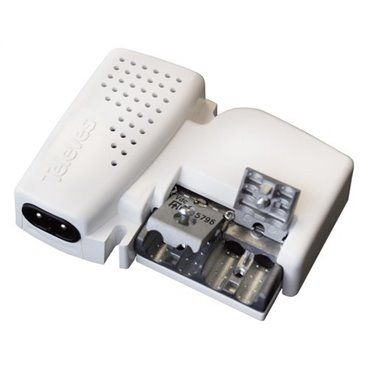

Connection system EasyF: simplicity and savings

The EasyF it is an innovative concept of connecting the inner conductor of the coaxial cable (live), which is inserted directly into the device to increase the reliability of the connection. Moreover, thanks to the absence of connectors "F", it is possible to reduce the chassis and secure the connection of two cables with a single screw.

• Actual time saving: speed up the installation it is possible to, not being required to perform the connectorization of coaxial cables. In addition, it prevents the threading process of the connectors on the device, which sometimes is difficult when the space is not enough
• Reliability of connection: the flange that holds the wires prevents the coaxial release
• Cost savings: no need for any connectors (or "F" or "IEC") extra
• Space optimization: the inputs and outputs are always located on the same side of the device, avoiding bending the coaxial cable and facilitating the work inside cupboards and records
• Mounting is very simple in three steps: it is only required to screw and unscrew the caps to connect two cables:

1. Unscrew the device cover to access the connection

2. Insert the coaxial cable previously peeled

3. Close the cover and screw to secure the connection

Find out more about the reliability of the system EasyF

With EasyF, the connection of the coaxial cable in the device is performed by using an automated system for the insertion of the live (inner conductor) by contact, requiring no welding.

• As the first day: the life time of the device is increased by eliminating the possible deterioration of the welds with the passage of time
• Reducing the rate of malfunctions: generally produced by welding cold
• Optimization of the emc behavior: at high frequencies
• Reinforcement of our commitment to the environment: it eliminates the pollution caused by the welding process and reduces the power consumption in the production
