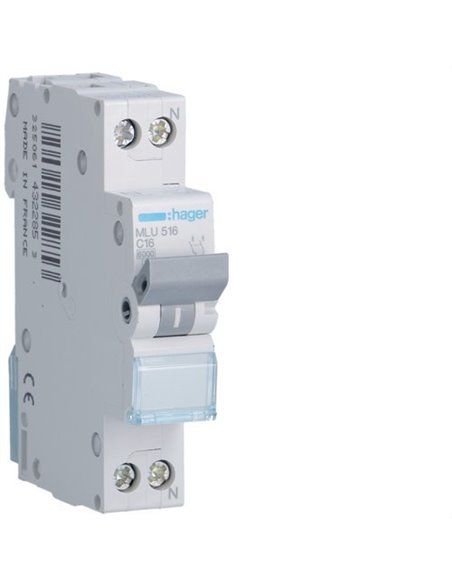

HAGER MLU516 | Circuit breaker ML curve-C 1P+N 16A
HAGER MLU516 | Circuit breaker ML curve-C 1P+N 16A

HAGER MLU516 | Circuit breaker ML curve-C 1P+N 16A

HAGER MLU516
Out of stock
€26.29
VAT included
1P+N magneto-thermal automatic switch with a nominal current of 16A. This curve C accessory has a voltage of 230/240V AC 50/60Hz and a breaking capacity of 6kA. Thus, the switch with a tightening torque of 2.8Nm has dimensions of 84.7x17.5x70mm. This device is characterized by maintaining the IP20 protection degree and an operating temperature of -25 to 60°C. In addition, the ML series offers a variety of products with innovative and timeless designs with a focus on functionality. Likewise, the range offers the switch with different technical characteristics.

Product Details

Rated current (A)
16
Curve
C
EAN
3250614322853
Manufacturer
HAGER
No. of poles
1P+N
Weight (kg)
0
Reference
HAGER MLU516
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / contact@hager.com / +33 388495050
GPSR EU responsible person
HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / contact@hager.com / +33 388495050
GPSR e-mail manufacturer
contact@hager.com
