INT.AUT Schneider iC60N 1P 6A C 6000A Acc
INT.AUT Schneider iC60N 1P 6A C 6000A Acc

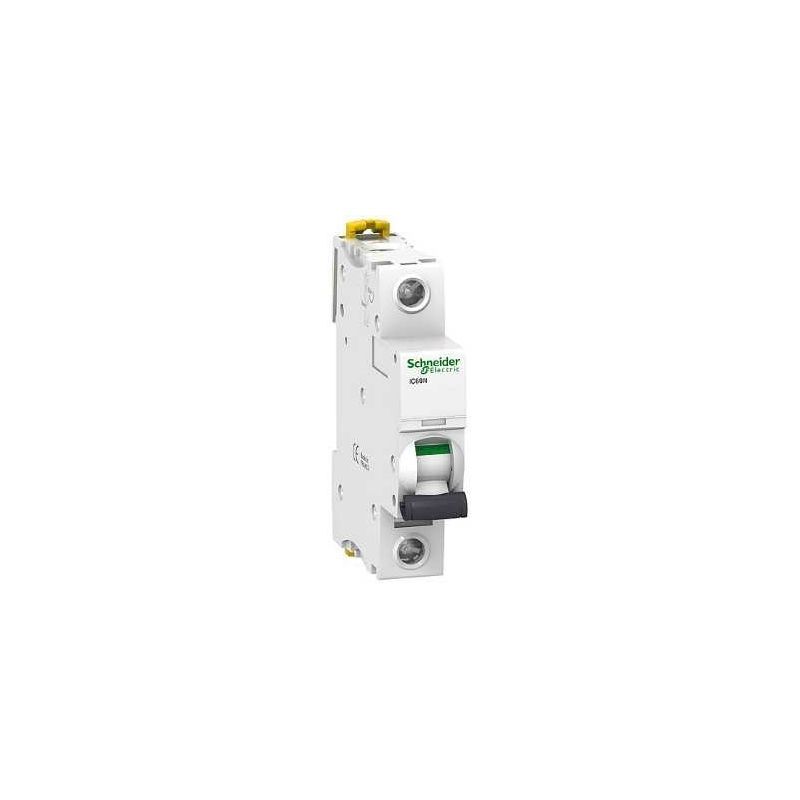

Automatic circuit breaker iC60N 1P 6A curve-C

SCHNEIDER A9F79106
Available
€18.69
VAT included
Circuit breaker iC60N Acti 9, 1P, 6A, curve C, IP20, 6000A Icn according to EN 60898-1, 230V AC 50/60Hz, thermal-magnetic, suitable for sectioning, contact position indicator, handle control, trip indicator, fixed mounting, DIN rail support, without protection against earth leakage, measures 85x18x78.5mm, weighs 0.215kg and is white. Breaking capacity: 6000 A Icn according to IEC 60898-1, 230 V AC 50/60 Hz, 15 kA Icu according to IEC 60947-2, 12...60 V DC, 6000 A Icn according to EN 60898 -1, 230 V AC 50/60 Hz, 20 kA Icu conforming to EN 60947-2, 100...133 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2, 72 V DC, 20 kA Icu conforming to IEC 60947-2, 100...133 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu conforming with EN 60947-2, 220...240 V AC 50/60 Hz, 15 kA Icu according to EN 60947-2, 12...60 V DC, 36 kA Icu according to EN 60947-2, 12. ..60 V AC 50/60 Hz, 36 kA Icu conforming to IEC 60947-2, 12...60 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 72 V DC, category of use A according to EN 60947-2 and IEC 60947-2, suitable for isolation according to EN 60898-1, EN 60947-2, IEC 60947-2 and IEC 60898-1, standards: IEC 60898-1, EN 60898 -1, EN 60947-2 and IEC 60947-2.
34 Items

Order now and receive it...

27-01-2025   with  MRW

between 27-01-2025 and 28-01-2025   with  Correos

Product Details

Rated current (A)
6
Curve
C
EAN
3606480093128
Manufacturer
Schneider
No. of poles
1P
Reference
SCHNEIDER A9F79106
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR e-mail manufacturer
info@schneider-electric.com
