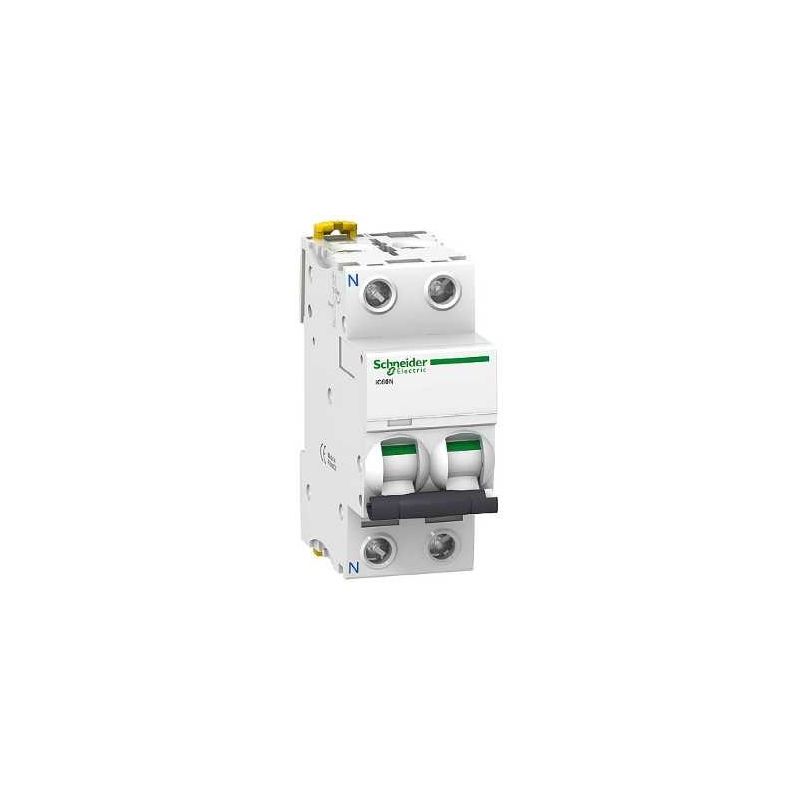

INT.AUT Schneider iC60N 1PN 10A C 6000A Acc
INT.AUT Schneider iC60N 1PN 10A C 6000A Acc

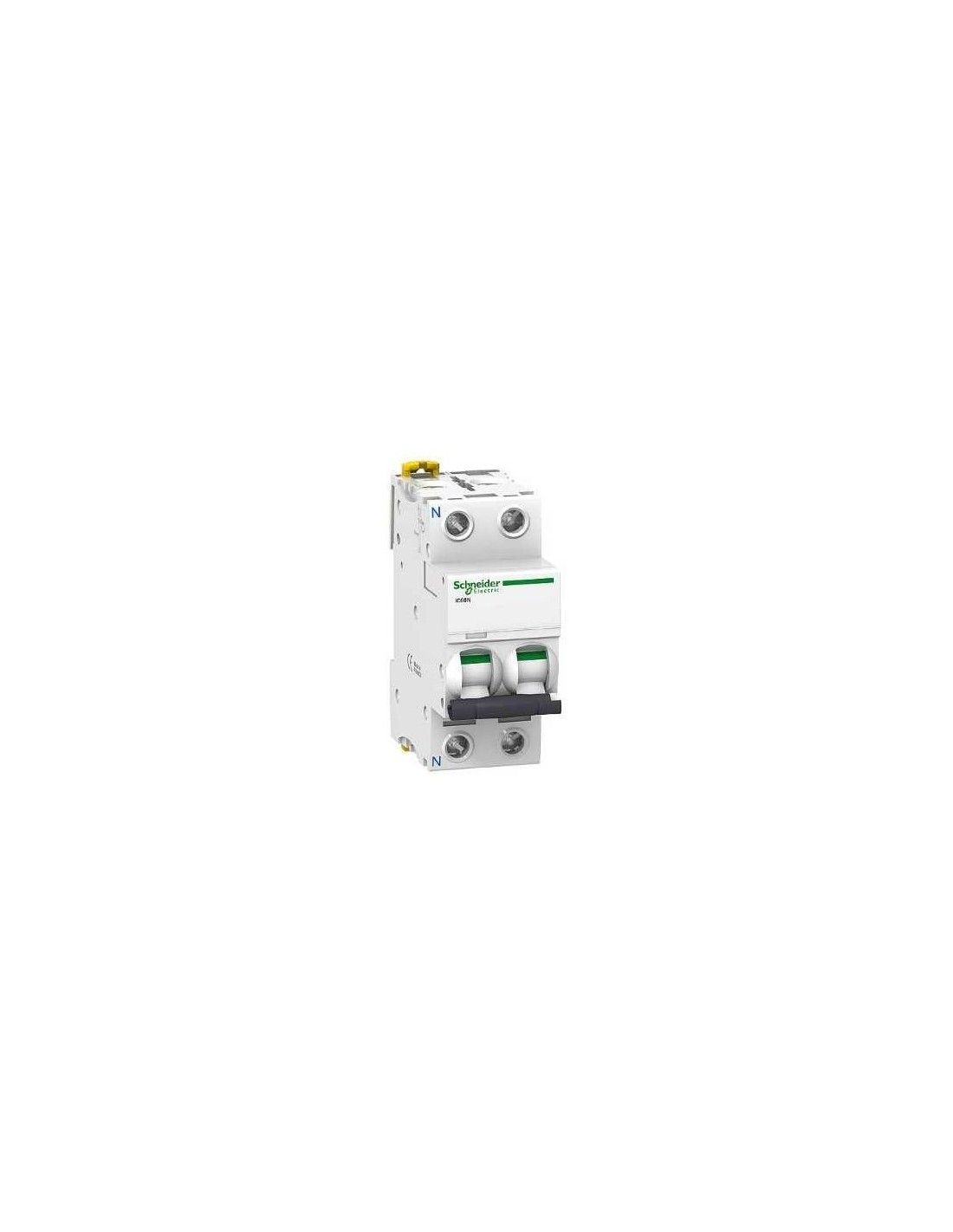

Automatic circuit breaker iC60N 1P+N 10A curve-C

SCHNEIDER A9F79610
Available
€29.58
VAT included
iC60N Acti 9 thermal-magnetic circuit breaker, 1P+N, 10A, curve C, IP20, thermal-magnetic, suitable for isolation, contact position indicator, handle control, trip indicator, fixed mounting, DIN rail support, protection against ground leakage with independent block, measures 85x36x78.5mm, weighs 0.25kg and is white. Breaking capacity: 20 kA Icu according to IEC 60947-2, 100...133 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn conforming to IEC 60898-1, 230 V AC 50/60 Hz, 36 kA Icu conforming to IEC 60947 -2, 12...60 V AC 50/60 Hz, 6000 A Icn according to EN 60898-1, 230 V AC 50/60 Hz, 20 kA Icu according to EN 60947-2, 100...133 V AC 50/60 Hz, 36 kA Icu conforming to EN 60947-2, 12...60 V AC 50/60 Hz, utilization category A conforming to IEC 60947-2 and EN 60947-2, suitable for isolating according to EN 60898-1, IEC 60947-2, IEC 60898-1 and EN 60947-2, standards: EN 60898-1, IEC 60947-2, IEC 60898-1 and EN 60947-2.
109 Items

Order now and receive it...

10-02-2025   with  MRW

between 10-02-2025 and 11-02-2025   with  Correos

Product Details

Rated current (A)
10
Curve
C
EAN
3606480093494
Manufacturer
Schneider
No. of poles
1P+N
Weight (kg)
0,25
Reference
SCHNEIDER A9F79610
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR e-mail manufacturer
info@schneider-electric.com
