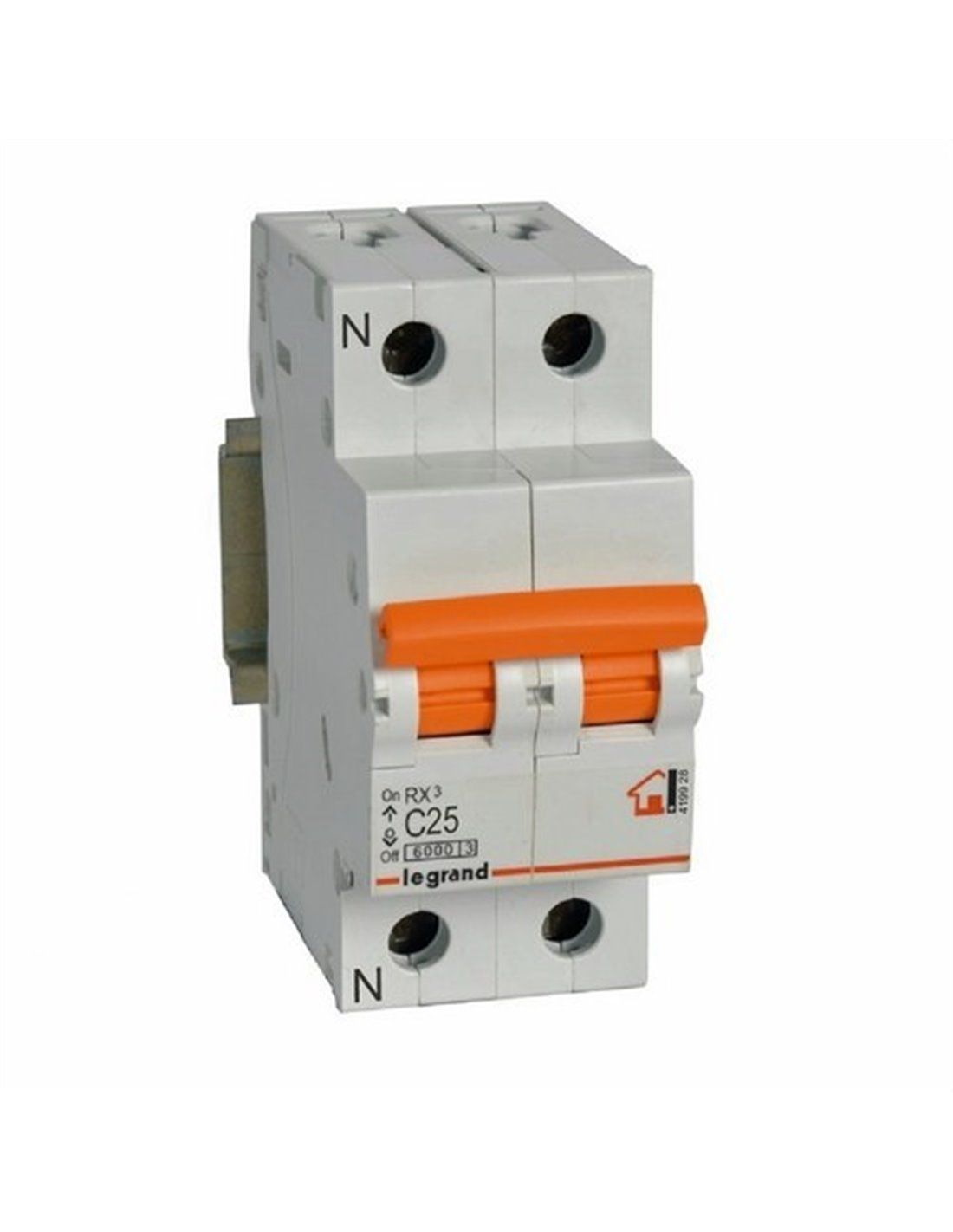

Circuit breaker 1 pole + neutral 25A for Legrand RX3 Housing range 419928
Characteristics:
Family: Legrand protection RX3 housing
Number of poles: 1P+N
Number of modules: 2
Nominal intensity: 25A
Curve: C
Service breaking capacity according to UNE EN-60898-1 Standard : 6 kA
Rated alternating working voltage: 230- Rated frequency: 50/60 Hz
Captitive and mixed-head screws
Mounting on symmetrical profile
A circuit breaker is an electrical protection device used to cut off the current in the event of an overload or short circuit in an electrical installation. These switches are designed to detect when electrical current exceeds a safe level and act quickly to shut off the current before a fire or damage to electrical equipment occurs.
A circuit breaker consists of a temperature sensor and a magnet. When the electrical current exceeds the safe level, the temperature sensor heats up and activates the magnet, which actuates the switch to cut off the current. Once the normal situation has been restored, the switch can be manually reactivated.
Legrand is a brand of electrical products recognized worldwide for its high quality and durability. Founded in France in 1860, the company has grown to become one of the leading manufacturers of electrical products for residential, commercial and industrial use.
Offers a wide range of products, ranging from switches and outlets to lighting and power control systems. All its products are designed and manufactured according to the highest quality standards, and have been certified by prestigious international organizations.
Legrand is a reliable and high-quality brand in the field of electrical products, and its wide range of products and its commitment to the environment makes it an excellent choice for any electrical project.
