INT.AUT Legrand DX3 2P 10A C 6000A Acc
INT.AUT Legrand DX3 2P 10A C 6000A Acc

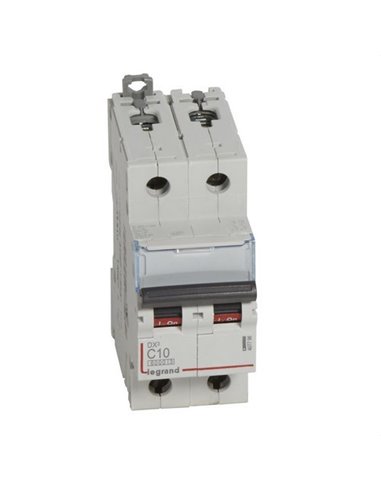

Circuit breaker DX3 6/10kA-C 2P 10A

LEGRAND 407798
Out of stock
€37.49
VAT included

The DX3 6/10KA-C circuit breaker is a two-pole circuit breaker for alternating current, with a nominal intensity of 10 amps and a C curve. It is a high quality, durable and resistant product.

Technical characteristics:

  • Type: 2-pole DX3 6/10KA-C circuit breaker.
  • Nominal voltage: 230/400 V~
  • Rated current: 10A.
  • Curve: C curve.
  • Number of modules: 2.
  • Breaking capacity: 6000A.
  • In accordance with UNE EN-60898-1 and UNE EN-60947-2 standards.
  • Admits connection with unipolar combs and multipolar combs.
  • They can be equipped with differential blocks, controls motorized and auxiliary control and signaling DX³.
  • Incorporated label holder.

Product Details

Standards
UNE EN 60898-1
High
77,8
Width
35,4
Curve
C
EAN
3245064077989
Manufacturer
LEGRAND
Intensity
10
# Elements
2
No. of poles
2P
Weight (kg)
0
Protection
IP20
Reference
LEGRAND 407798
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR EU responsible person
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR e-mail manufacturer
sat.espana@legrandgroup.es
