- Standards
- UNE EN 60898-1
- High
- 77,8
- Width
- 17,8
- Curve
- C
- EAN
- 3245064035750
- Manufacturer
- LEGRAND
- Intensity
- 10
- # Elements
- 1
- No. of poles
- 1P
- Weight (kg)
- 0
- Protection
- IP20
- Reference
- LEGRAND 403575
- Certification
- CE
- Safety warning
- No
- GPSR Safety warning
- No
- GPSR Manufacturer information
- LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
- GPSR EU responsible person
- LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
- GPSR e-mail manufacturer
- sat.espana@legrandgroup.es

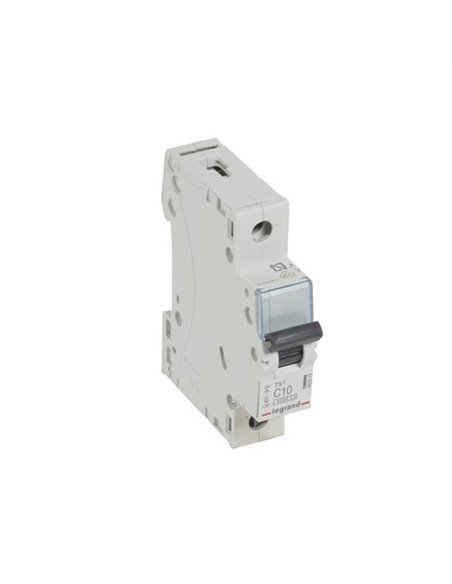

The TX3 6KA-C Circuit Breaker is a single pole circuit breaker with the capacity to withstand up to 10A and a breaking capacity of 6000A. It is an ideal option to protect electrical circuits in industrial and residential installations.
Technical characteristics:
- Type: Single-pole magnetothermic automatic switch
- Voltage: 230/400 V~
- Curve: C
- Rated current: 10A
- Number of poles: 1
- Breaking capacity: 6000A
- In accordance with the UNE EN-60898-1 standard
- Connection with terminals protected against direct contact (IP20)
- Captive screws
- Built-in label holder
- Terminal connection capacity: 25 mm² flexible/35 mm² rigid
- They can be equipped with motorized controls and DX³ control and signaling auxiliaries.
