INT.AUT LEGRAND TX3 2P 16A C 6000A ACC

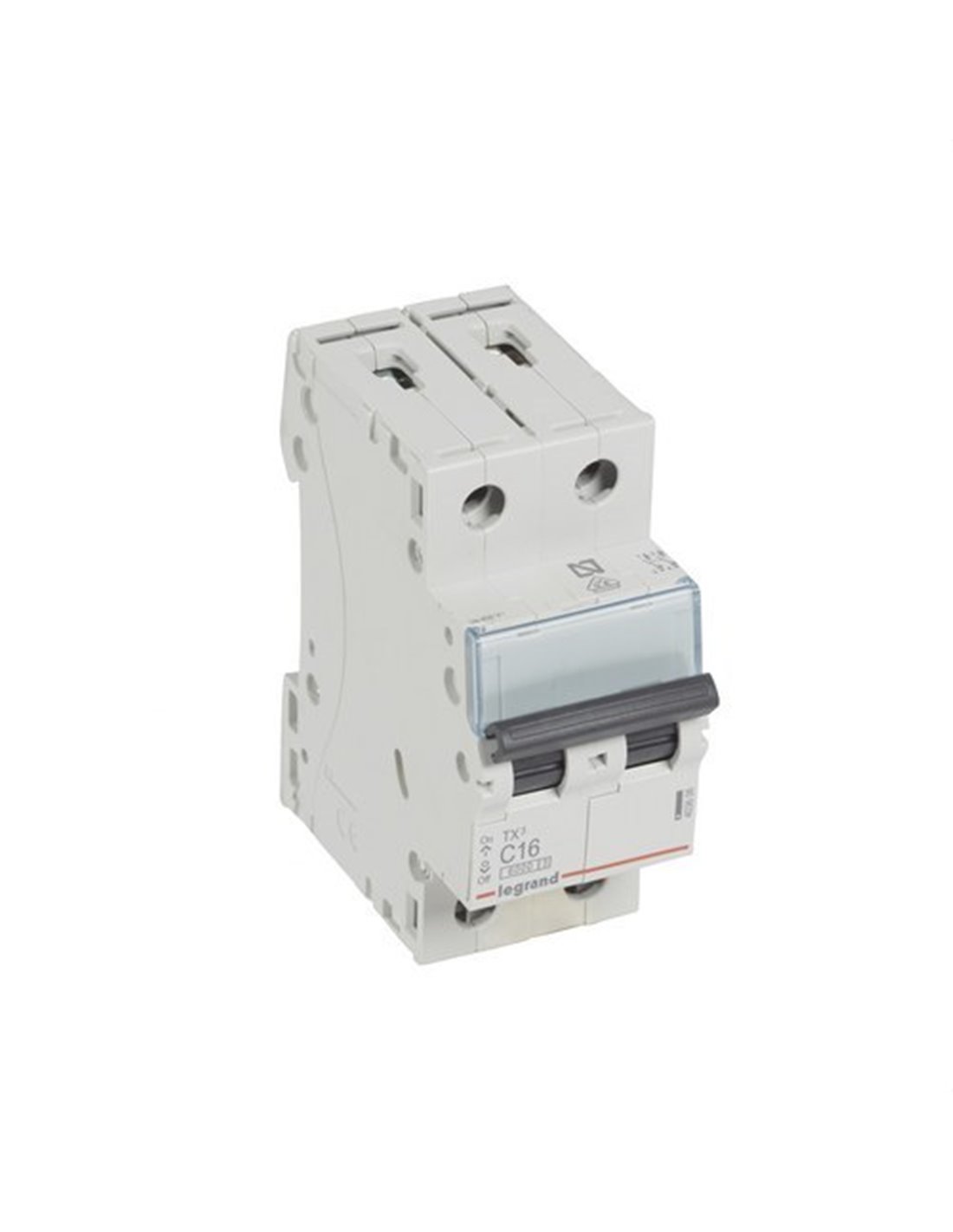

Circuit breaker TX3 6kA-C 2P 16A

LEGRAND 403606
Available
€16.93
VAT included

The TX3 6KA-C Circuit Breaker is a 16A bipolar automatic switch, designed to protect electrical circuits against overloads and short circuits. This product has a C curve and complies with the UNE EN-60898-1 standard.

Technical characteristics:

  • Type of switch: TX3 magnetothermic
  • Pole: bipolar
  • Rated voltage: 230/400 V~
  • Tripping curve: C curve
  • Rated current: 16A
  • Number of modules: 2
  • Breaking capacity: 6000A
  • Connection with terminals protected against direct contact (IP20)
  • Captive screws
  • Incorporated label holder
  • Terminalization capacity: 25 mm² flexible/35 mm² rigid
  • Compatible with motorized controls and DX³ control and signaling auxiliaries
243 Items

Wrapper image

Order now and receive it...

✔ 26-09-2024   with  MRW

✔ between 26-09-2024 and 27-09-2024   with  Correos


Standards
UNE EN 60898-1
High
77,8
Width
35,4
Curve
C
EAN
3245064036061
Manufacturer
LEGRAND
Intensity
16
# Elements
2
No. of poles
2P
Weight (kg)
0
Protection
IP20
Reference
LEGRAND 403606
