Emuca Hardware kit for wardrobe with 2 sliding doors and soft closing Placard 90, Vall profile, thickness 19mm, boards not inclu

EMUCA 6030962
Out of stock
€195.20
VAT included
  • Sliding system to create a wardrobe with two lower rolling sliding doors.
  • The boards are not included.
  • Composed of trolleys with ball bearings in steel.
  • The lower carriage has a height adjustment of ± 5 mm from the door.
  • The upper and lower rails are supplied at a size of 2350mm to be cut to the desired size.
  • The handle profiles are supplied in a size of 2350mm to be cut to the desired size.
  • Includes an anti-derailment system using a spring in the lower carriage and an adjustable anti-jump stop on the upper skate.
  • It has locking mechanisms for the spring of the lower carriage that facilitates the installation of the doors.
  • Includes a brake device for the smooth opening and closing of the doors. doors.
  • The device has greater retention power thanks to its hydraulic piston, which thus achieves progressive and precise closing.
  • The system supports a maximum weight of 30 kg per door .

Description

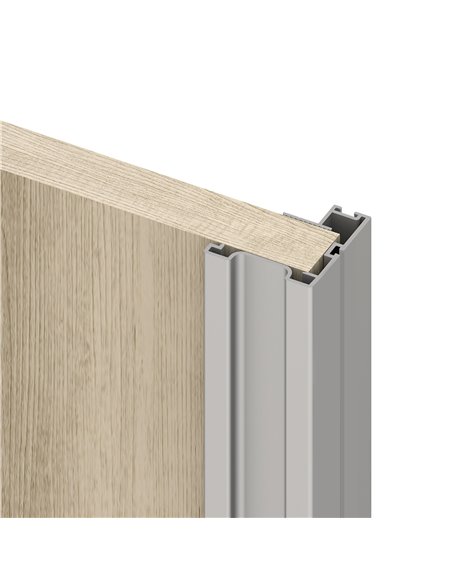

Kit for Placard 90 wardrobe with two sliding doors that includes all the hardware and profiles necessary for assembly and installation except the boards.This system of hardware and profiles allows you to create your own closet or dressing room with two sliding doors with lower support and smooth and silent sliding. The Placard sliding system has lower carriages with steel ball bearings, a door height adjustment of ± 5 mm and a spring locking mechanism that facilitates the installation of the doors. It includes an anti-derailment system using a spring in the lower carriage and an adjustable anti-jump stop on the upper skid. It also incorporates a brake device for soft opening and closing of the doors, with a maximum weight of 30 kg per door. This system has greater retention power thanks to its hydraulic piston, thus achieving progressive and precise closing. The composition of the doors includes a U-shaped crossbar profile and Vall handle profiles made of matte anodized aluminum, designed for doors with thicknesses of 19 mm.

Product Details

High
9
Width
5
19
Color
Matte anodizing
EAN
8432393286860
Manufacturer
EMUCA
Material
Aluminio
Weight (kg)
9
97
Depth
240
Reference
EMUCA 6030962
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
