Emuca Hardware kit for wardrobe with 2 sliding doors and soft closing Placard 74, Wave profile, thickness 16mm, boards not inclu

EMUCA 6031312
Out of stock
€167.33
VAT included
  • Sliding system to create a wardrobe with two lower rolling sliding doors.
  • The boards are not included.
  • Composed of trolleys with ball bearings in steel.
  • The lower carriage has a height adjustment of ± 5 mm from the door.
  • The upper and lower rails are supplied at a size of 2,350 mm to be cut to the desired size.
  • The handle profiles are supplied in a size of 2,350 mm to be cut to the desired size.
  • Includes an anti-derailment system through a spring in the lower carriage and an adjustable anti-stop stop -jump on the upper skid.
  • It has locking mechanisms for the spring of the lower carriage that facilitates the installation of the doors.
  • Includes a brake device for smooth opening and closing of the doors.
  • The device has greater retention power thanks to its hydraulic piston that thus achieves progressive and precise closing.
  • The system supports a maximum weight of 30 kg by door.

Quantity Unit discount You Save
5 10% €83.67
10 20% €334.66

Description

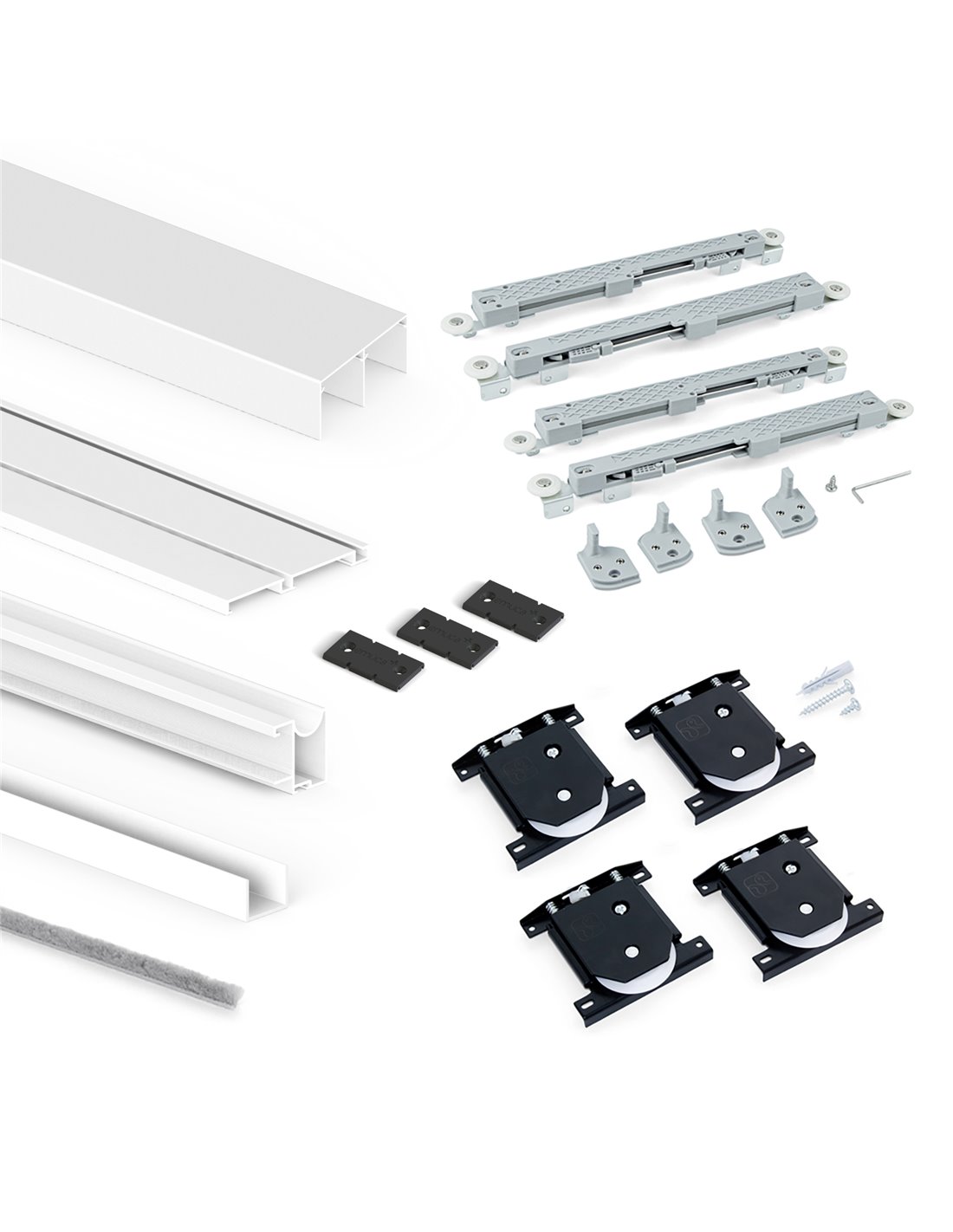

Kit for Placard wardrobe with two sliding doors that includes all hardware and profiles necessary for assembly and installation except the boards. This system of hardware and profiles allows you to create your own closet or dressing room with two sliding doors with lower support and smooth and silent sliding. The Placard sliding system has lower carriages with steel ball bearings, a door height adjustment of ± 5 mm and a spring locking mechanism that facilitates the installation of the doors. It includes an anti-derailment system using a spring in the lower carriage and an adjustable anti-jump stop on the upper skid.

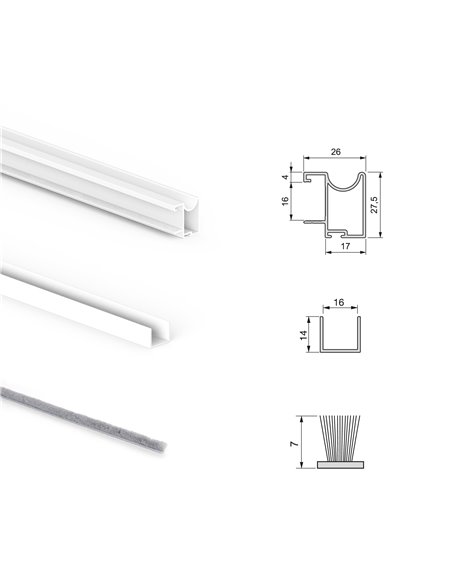

It also incorporates a braking device for the soft opening and closing of the doors, with a maximum weight of 30 kg per door. This system has greater retention power thanks to its hydraulic piston, thus achieving progressive and precise closing. The composition of the doors includes a U-shaped crossbar profile and Wave handle profiles made of aluminum and a white finish, designed for doors with thicknesses of 16 mm.

Product Details

High
5
Width
5
19
Color
Pintado blanco
EAN
8432393286792
Manufacturer
EMUCA
Material
Aluminio
Weight (kg)
8
47
Depth
240
Reference
EMUCA 6031312
Certification
CE
Safety warning
No
GPSR Safety warning
No
