Emuca Multiconnector for desktop Atom 14, 130x115mm, 1 Schuko type plug, 2 USB type A, 1 HDMI, Steel and Plastic and Aluminum

The Atom Emuca multiconnector is an efficient solution that provides functionality to furniture. Its innovative design with aluminum or black painted finish allows its complete integration into office and home furniture.

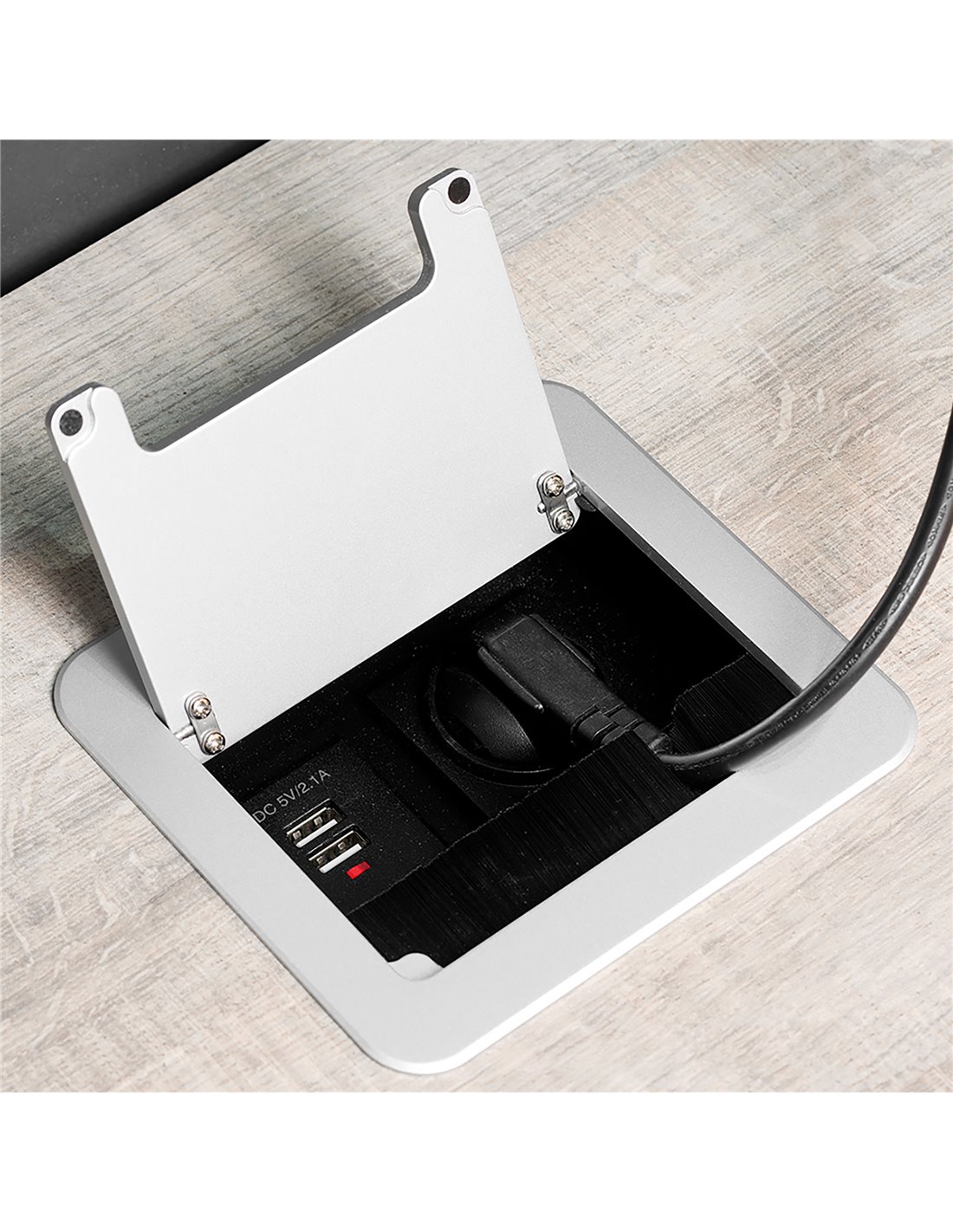

Depending on the model chosen, it has one or two plugs type F Schuko (EU) or type G (UK) with a maximum allowable power of up to 3,000W - 13A, two USB connectors for charging electronic devices 5V DC (1 x 2A/2 x 1.5A), an RJ45 network port and an HDMI 2.0 connector. It incorporates a cover for easy access to the connectors and a discreet LED power indicator.

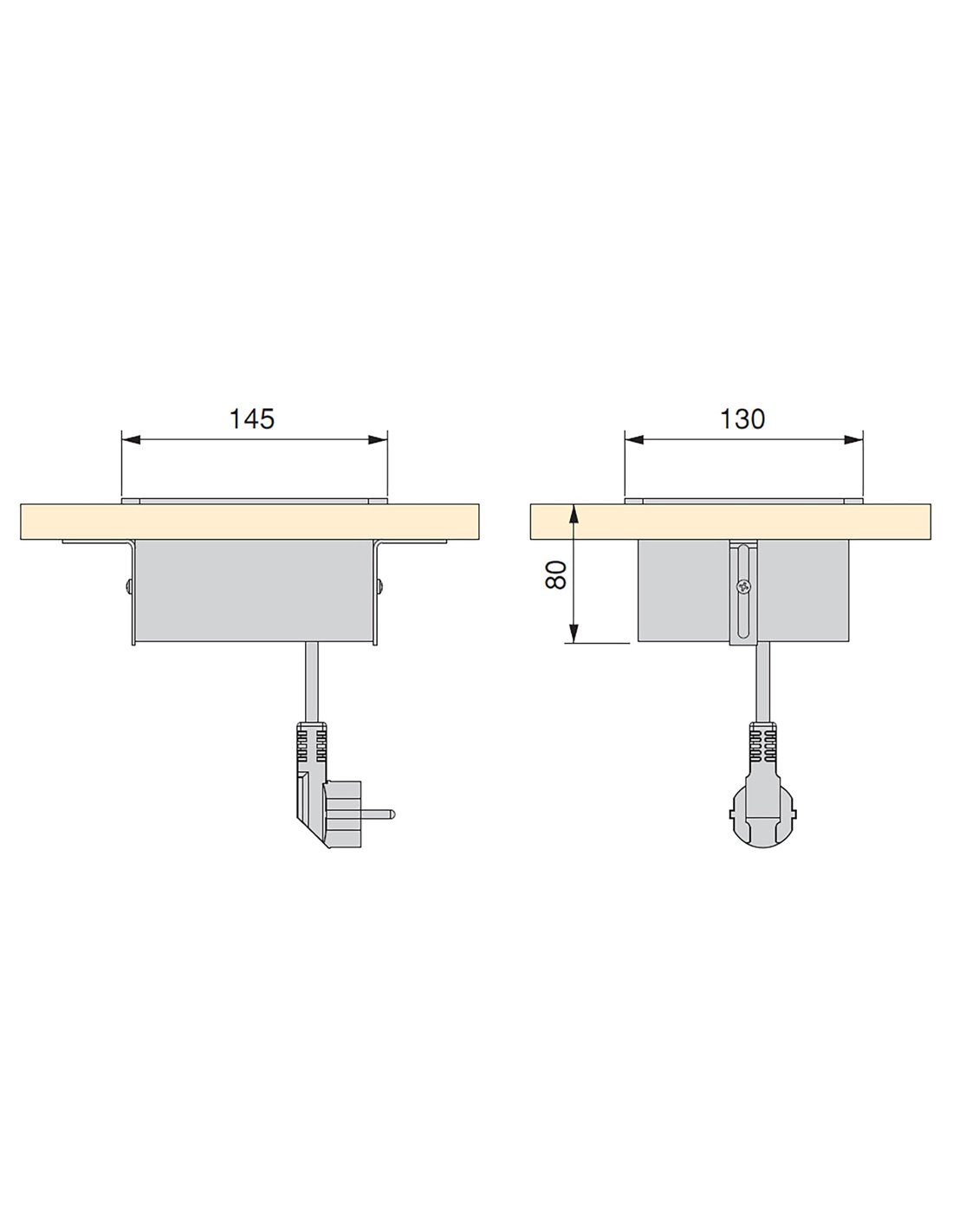

Its installation is very versatile since it includes the connection cables strong> to connect peripherals without using tools in addition to a 1.5 m cable with plug for 250V AC 50Hz operation. This requires machining on the board and allows mounting on very thick surfaces, a maximum of 36mm. Fixing to the furniture is done with the brackets and screws included in the supply.
