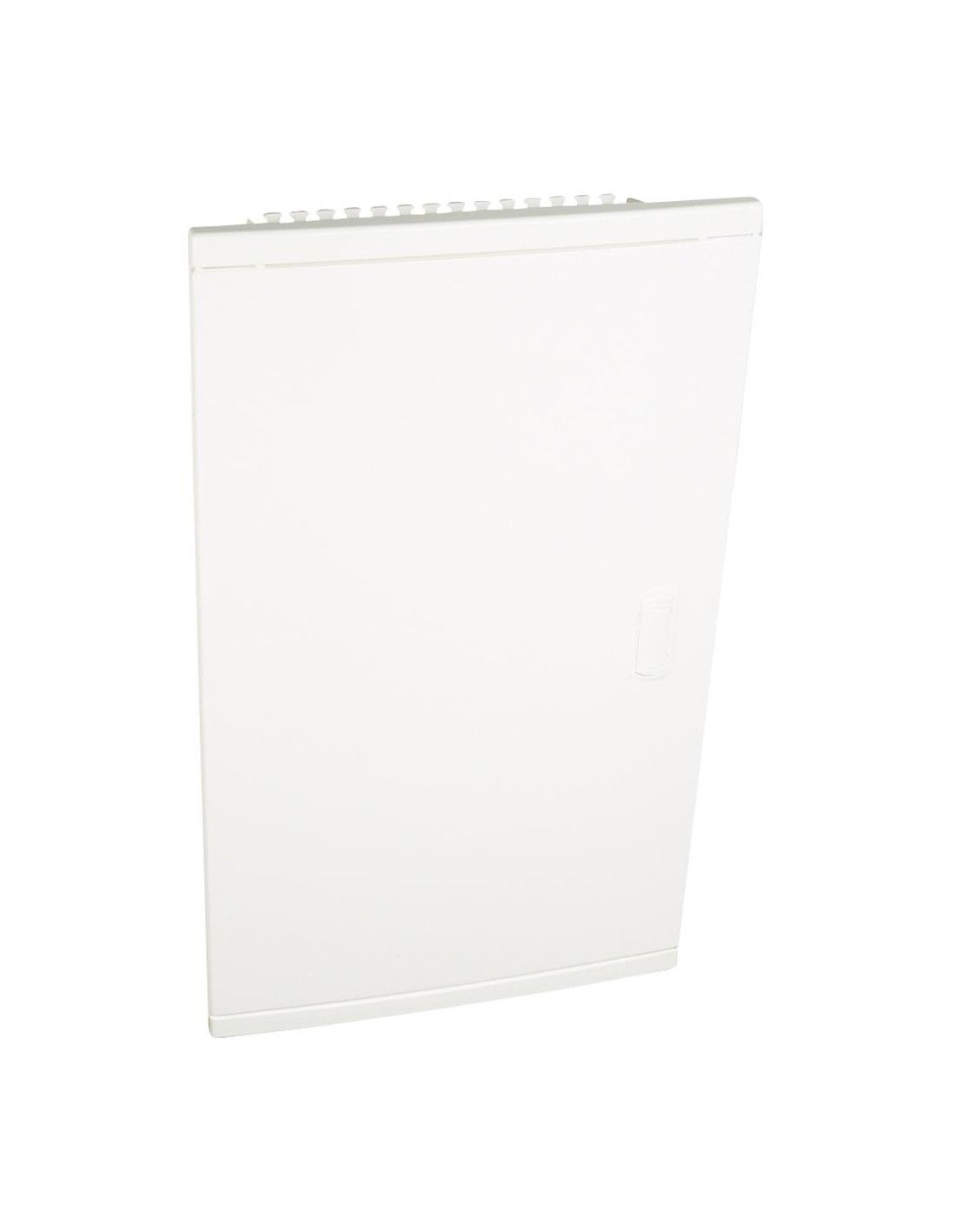

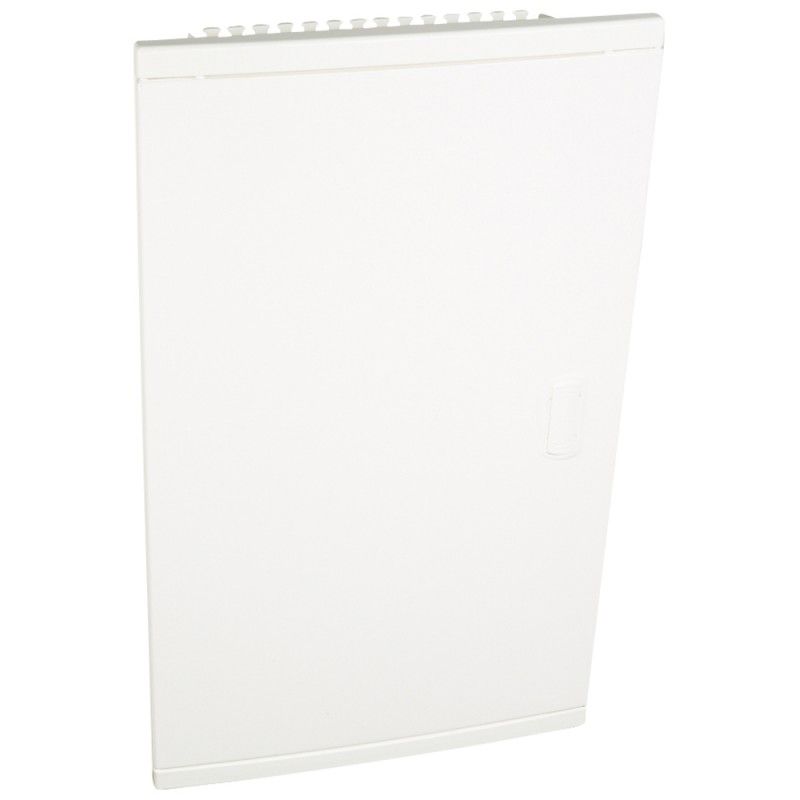

Caja modular de empotrar nedbox con puerta aislante extraplana 3 filas de 12+2 mód. LEGRAND 001513
Caja modular de empotrar nedbox con puerta aislante extraplana 3 filas de 12+2 mód. LEGRAND 001513

NEDBOX electrical panel with extra-flat insulating door 3 rows of 12 + 2 mod. LEGRAND 001513

LEGRAND 001513
Out of stock
€162.38
VAT included
Modular Nedbox recessed box with extra-flat insulating door 3 rows of 12 + 2 mod.

Manufacturer: Legrand

Description

Modular nedbox recessed box with extra-flat insulating door 3 rows of 12 + 2 mod.


Embedding boxes
For hollow or conventional partitions
12 modules per row (+2 cut-outs)
Equipped with reversible doors with handles suitable for locks with key ref. 0 014 91
Supplied with IP 2X automatic connection terminal block for protective conductors fixing legs for prefabricated partitions and seals separable by module and half module
Interrail between rails 125 mm With white insulated door RAL 9010
Number of rows: 3
Number of modules: 36 + 6
Dimensions of the recess hole (mm): 555x330x86

Modular embedment boxes Nedbox
Self-extinguishing: resistance to incandescent thread 750 ° according to EN 60695-2-11.In accordance with the regulations for installation in public places
Class II
IP 40
IK 07
They comply with IEC 62 208: allows assemblies conforming to IEC 61 439-3

Product Details

EAN
3245060015138
Manufacturer
LEGRAND
Protection
IP2X
IP40
Reference
LEGRAND 001513
Type of installation
Flush-mounted
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR EU responsible person
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR e-mail manufacturer
sat.espana@legrandgroup.es
