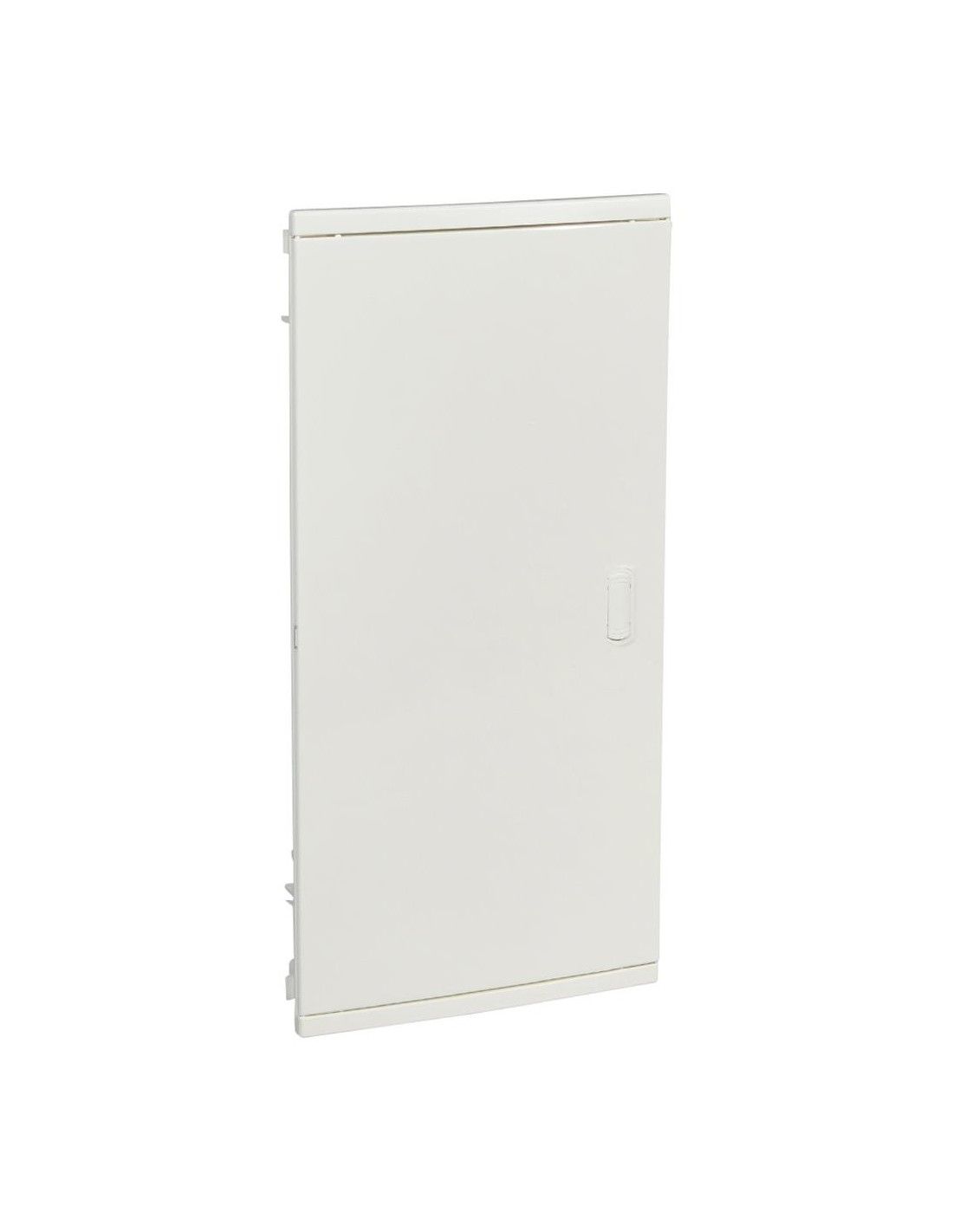

NEDBOX electrical panel with extra-flat insulating door 4 rows of 12 + 2 mod. LEGRAND 001514

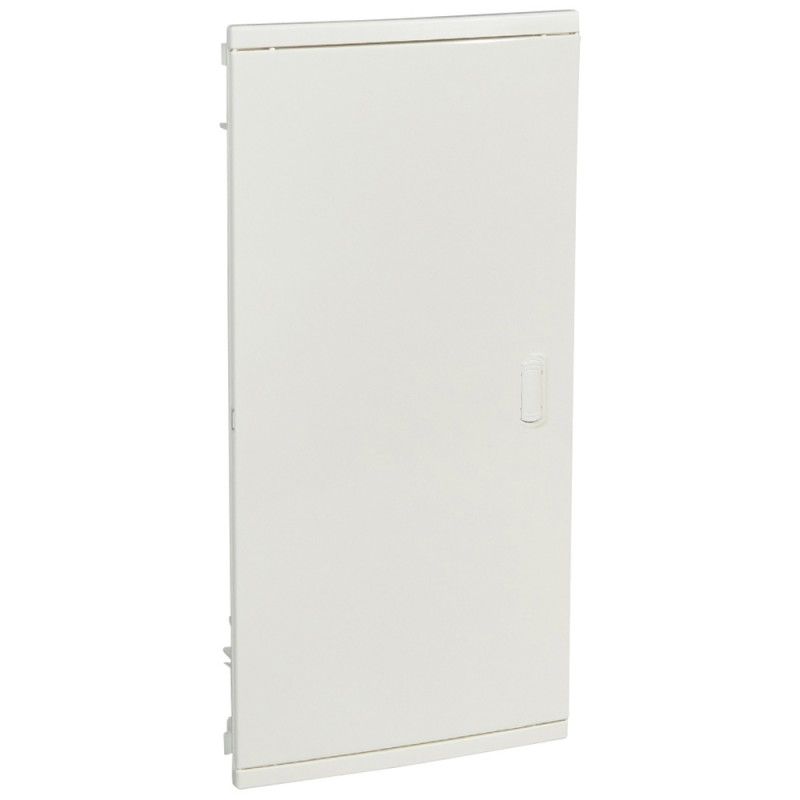

Modular nedbox recessed box with extra-flat insulating door 4 rows of 12 + 2 mod.

Embedding boxes
For hollow or conventional partitions
12 modules per row (+2 cut-outs)
Equipped with reversible doors with handles suitable for locks with key ref. 0 014 91
Supplied with IP 2X automatic connection terminal block for protective conductors fixing legs for prefabricated partitions and seals separable by module and half module
Interrail between rails 125 mm With white insulated door RAL 9010
Number of rows: 4
Number of modules: 48 + 8
Dimensions of the recess hole (mm): 680x330x86

Modular embedment boxes Nedbox
Self-extinguishing: resistance to incandescent thread 750 ° according to EN 60695-2-11.In accordance with the regulations for installation in public places
Class II
IP 40
IK 07
They comply with IEC 62 208: allows assemblies conforming to IEC 61 439-3
