CONT 12A 1NA/1NC 24V BC-AR-ANTIP
CONT 12A 1NA/1NC 24V BC-AR-ANTIP

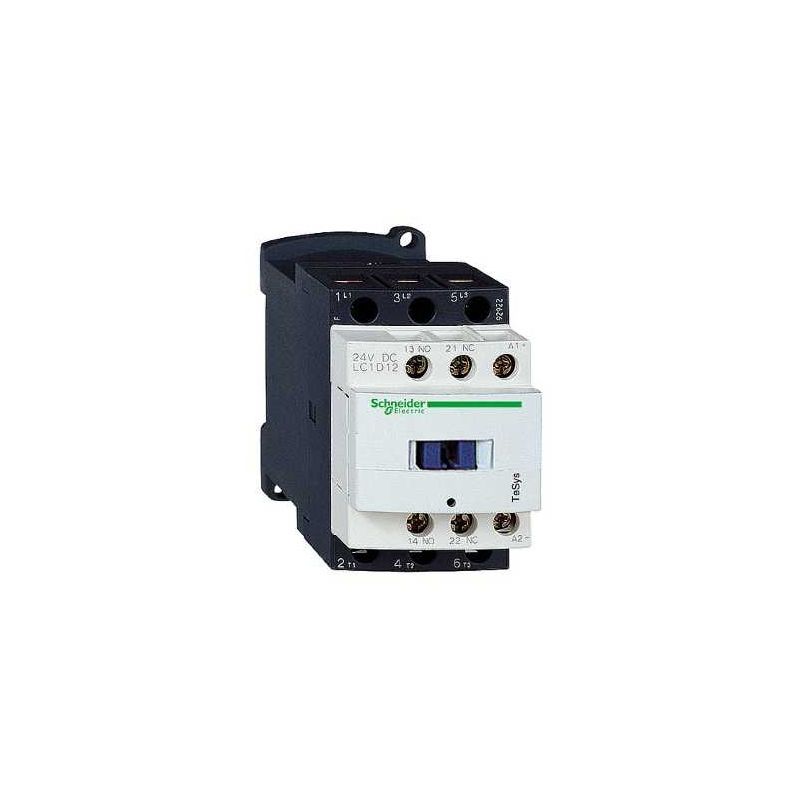

12A 1 NO/1 NC 24V BC-AR anti-interference contactor

SCHNEIDER LC1D12BL
Out of stock
€91.10
VAT included
3P AC-3 contactor =440 V 12 A 24 VDC coil suppressed TeSys D. Device short name LC1D. Contactor application Motor control. resistive load. Employment category AC-1/AC-3. Composition of contact poles 3 NO. [Ue] rated operating voltage = 690 V AC 25...400 Hz for power circuit = 300 V DC for power circuit. [Ie] rated operating current 12 A (= 60 °C) at <= 440 V AC AC-3 for supply circuit 25 A (= 60 °C) at = 440 V AC AC-1 for supply circuit. Motor power in kW 3 kW at 220...230 V AC 50/60 Hz 7.5 kW at 500 V AC 50/60 Hz 7.5 kW at 660...690 V AC 50/60 Hz 5.5 kW at 380... 400 V AC 50/60 Hz 5.5 kW at 415...440 V AC 50/60 Hz. Motor power in CV 1 hp at 115 V AC 50/60 Hzfor 1-phase motors 2 hp at 230/240 V AC 50/60 Hzfor 1 phase motors 3 hp at 200/208 Vac 50/60 Hzfor 3 phase motors 3 hp at 230/240 Vac 50/60 Hzfor 3 phase motors 7.5 hp at 460/480 Vac 50/60 Hzfor 3 phase motors 10 hp at 575/600 VAC 50/60 Hzfor 3 phase motors. Control circuit type DC low consumption.

Product Details

EAN
3389110361469
Manufacturer
Schneider
Reference
SCHNEIDER LC1D12BL
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR e-mail manufacturer
info@schneider-electric.com
