INT.DIF Legrand DX3 4P 40A 30mA AC Inst Acc
INT.DIF Legrand DX3 4P 40A 30mA AC Inst Acc

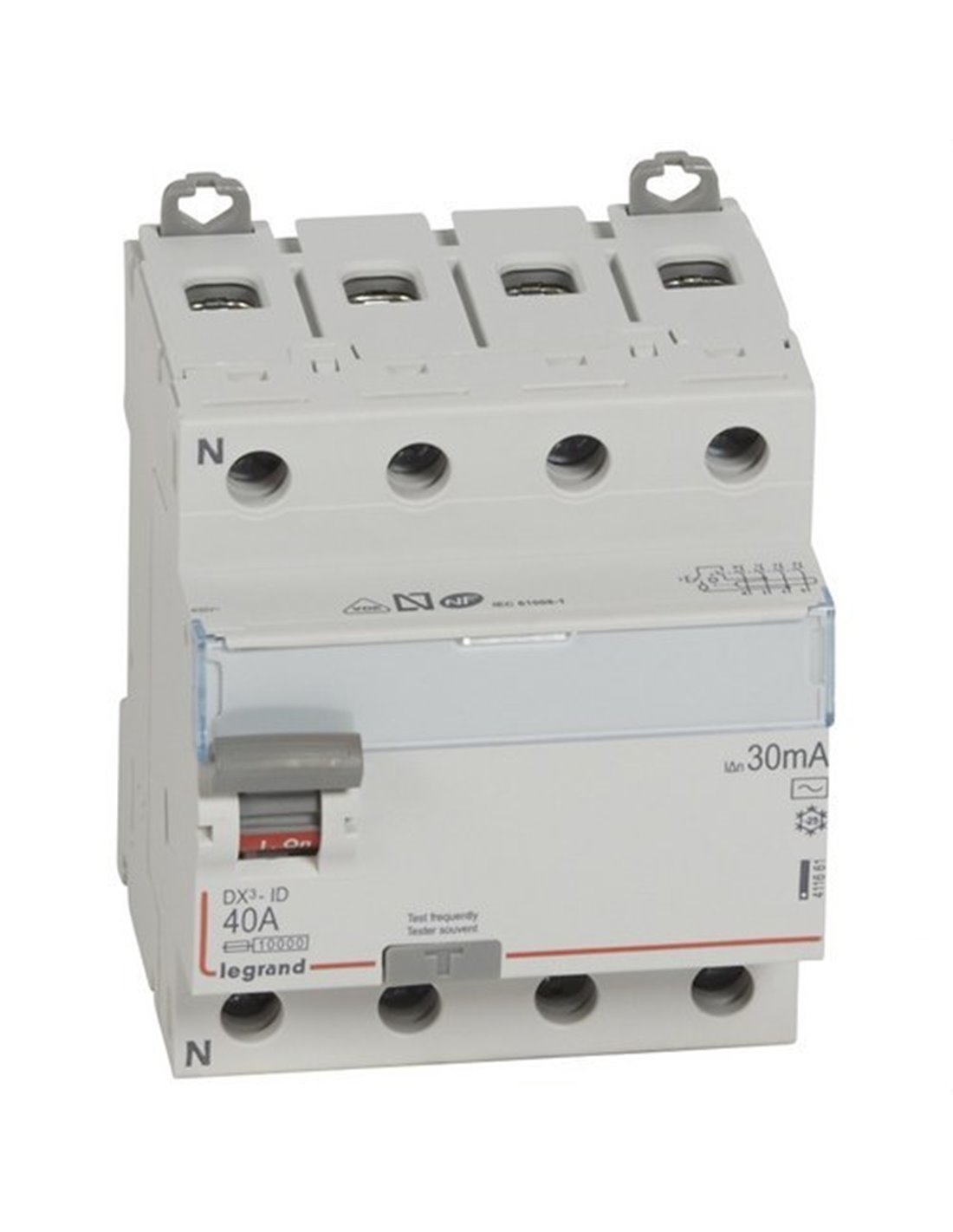

Differential switch DX3 4/40/30AC

LEGRAND 411661
Available
€203.16
VAT included

The DX3 4/40/30AC RCD is a 400 V~ four-pole RCD with a sensitivity of 30 mA and a nominal current of 40A. With a size of 4 modules, it is suitable for the detection of alternating component defects.

Technical characteristics:

  • Type AC, detects alternating component defects.
  • Screw/screw connection: upper entry and lower exit through screw terminals.
  • Comply with the UNE EN 61008-1 standard.
  • Admits auxiliaries, motorized controls and modules DX³ connection (except Type B).
  • Also available in Type A, Hpi and B for the detection of different types of defects.
  • Ideal for specialized circuits such as kitchens, washing machines, and computer circuits.
106 Items

Order now and receive it...

✔ 27-01-2025   with  MRW

✔ between 27-01-2025 and 28-01-2025   with  Correos

Product Details

Standards
UNE EN 61008-1
High
77,8
Width
71,2
Sensitivity
30 mA
EAN
3245064116619
Manufacturer
LEGRAND
Intensity
40
# Elements
4
No. of poles
4P
Weight (kg)
352
Protection
IP20
Reference
LEGRAND 411661
Nominal voltage (V)
380V
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR EU responsible person
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR e-mail manufacturer
sat.espana@legrandgroup.es
