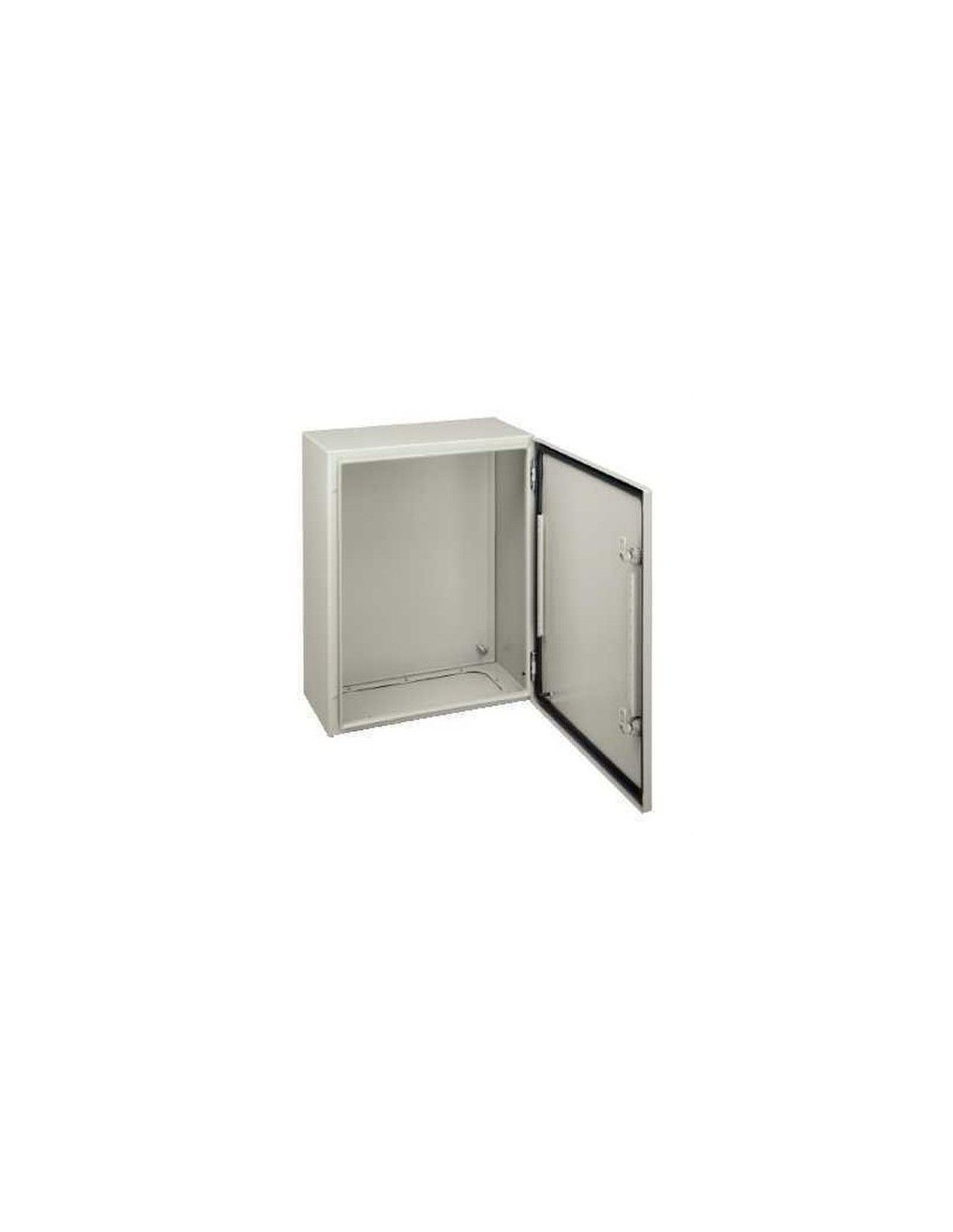

SCHNEIDER NSYCRN64200 | CRN cabinet with blind door 600x400x200mm

Spacial CRN plain door without mounting plate 600x400x200, IP66, IK10, Multipurpose. Wall mounting. Components: 1 lock, 1 door, 1 body and 1 cable gland plate, without mounting plate. Sides formed from a single folded section, subsequent welding with double profile forming a sealed and protected area. Number of doors: 1 front face. Door opening: Reversible 120°. 3mm double bar clasp. Cable gland plate: Standard by means of screws. Accessibility for operation: Front. Removable part: Door with hinges. Material: Steel for body, Gray RAL 7035. Benefits: Universal cabinets that facilitate work for general use with specific accessories depending on the application (automation, electrical distribution, electronic systems and networks). IP66 protection in the one door model and IP55 in the two door model, IK10 in the plain door model and IK08 in the glass door model. 2 products: CRN and CNRG cabinets (CRNG for large dimensions). The CRN and CRNG cabinets are: Smart: Easily removable and reversible door, opening at 120°, 2 locking points from 600mm in height. Maximum load: 50kg/m2. Polyurethane gasket. Hinges are easily released and repositioned to aid in door removal and reversal. Wide range of door inserts. Latches: Welded ground studs on body and door. Easy to handle: 4 welded back studs with 10mm shoulders to mount the chassis. Versatile: metal chassis, screen-printed chassis, micro-perforated chassis, telequick perforated chassis, symmetrical chassis, steel cable entry plate, semi-punched insulated cable entry plate, membrane cable entry plate. Durable: With epoxy-polyester coating and polyurethane gasket that guarantees watertightness for years. Attractive: Polyester paint in RAL7035 color.
