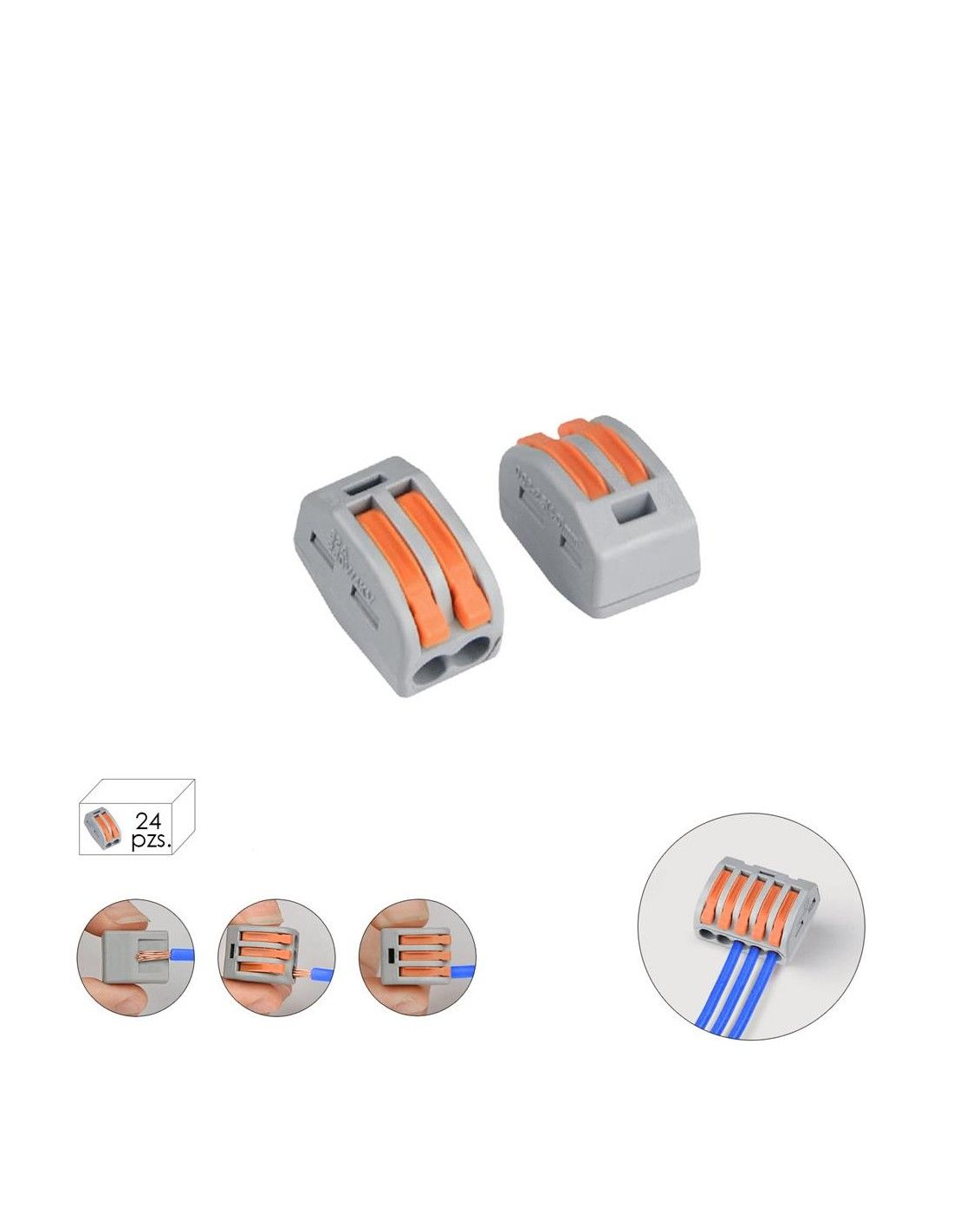

Quick Electrical Connection Strip,
- Number of connection poles: 2.
- Maximum amperage: 32 A.
- Max millimeters. wiring: Ø 4 mm.
- Mains voltage: 230 - 400v.
- Box of 24 units.
- Connection for copper cable, both rigid and flexible.
- Includes test port to check the voltage.
- They can be used in flush or surface connection boxes.
- Reusable.
- Easy, fast connection, using a lever, without screws, it does not require the use of tools.
- Compact size, adaptable to small spaces.
- Used in electrical installations, domestic connections such as lighting, blinds, awnings, speakers, doors and their controllers, intercoms, thermostats, doorbells, etc.
- Article also known as connection tab or connection tab splice.
- Connection process:
- Strip the wire about 9 or 10mm. To do this, use the mark at the bottom of the connector.
- Lift one of the orange levers all the way (it should be at 90°).
- Then insert the conductor and push the lever down completely.
- Pull the wire to see if it is well attached.
- Check the voltage through the test port behind the levers.
