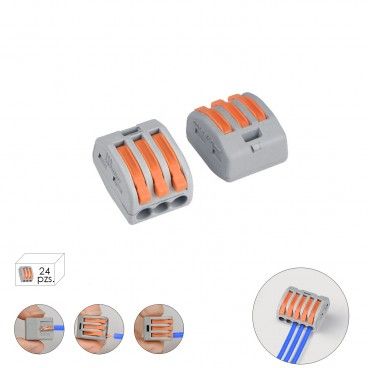

Regleta Conexion Rapida, Conexion Electrica 3 polos, 4mmØ, 24 unidades. AFT 19031205

Quick Electrical Connection Strip, 3 Poles, 4mmØ, 32A, 24 Units

WOLFPACK LINEA PROFESIONAL
AFT 19031205
Available
€5.88
VAT included
Quick Connection Strip, Electrical Connection 3 poles, 4mmØ, 24 units.
  • Quick strip for electrical connections. Box of 24 units.
  • Number of Connection Poles: 3. Maximum amperage: 32 A. Max millimeters. Wiring: Ø 4 mm. Mains voltage: 230 - 400v.
  • Connection for copper cable, both rigid and flexible. Includes test port to check voltage. They can be used in flush or surface connection boxes.
  • Reusable. Easy, quick connection by lever, without screws, does not require the use of tools. Compact size, adaptable to small spaces.
  • Used in electrical installations, domestic connections such as lighting, blinds, awnings, speakers, doors and their controllers, intercoms, thermostats, bells, etc. Article known also known as connection tab or splice tab.
    • 1 Item


    Quick Electrical Connection Strip,
    - Number of connection poles: 3.
    - Maximum amperage: 32 A.
    - Max millimeters. wiring: Ø 4 mm.
    - Mains voltage: 230 - 400v.
    - Box of 24 units.
    - Connection for copper cable, both rigid and flexible.
    - Includes test port to check the voltage.
    - They can be used in flush or surface connection boxes.
    - Reusable.
    - Easy, fast connection, using a lever, without screws, it does not require the use of tools.
    - Compact size, adaptable to small spaces.
    - Used in electrical installations, domestic connections such as lighting, blinds, awnings, speakers, doors and their controllers, intercoms, thermostats, doorbells, etc.
    - Article also known as connection tab or connection tab splice.


    - Connection process:
    - Strip the wire about 9 or 10mm. To do this, use the mark at the bottom of the connector.
    - Lift one of the orange levers all the way (it should be at 90°).
    - Then insert the conductor and push the lever down completely.
    - Pull the wire to see if it is well attached.
    - Check the voltage through the test port behind the levers.
    High
    6
    Width
    6
    EAN
    8435450433542
    Manufacturer
    WOLFPACK
    Long
    8cm
    Weight (kg)
    0,122
    Depth
    8
    Reference
    AFT 19031205
