Borna VIKING3 4mm²
Borna VIKING3 4mm²

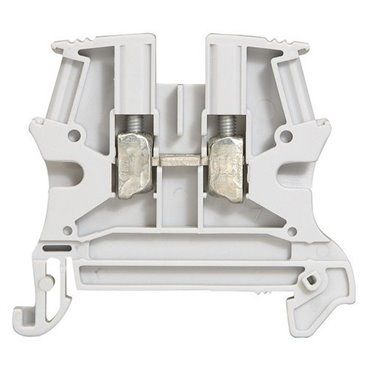

LEGRAND 037161 | VIKING3 terminal block 4mm²

LEGRAND 037161
Available
€1.56
VAT included
VIKING3 4mm2 terminal. Through
Grey for standard circuit, blue for neutral conductor, orange for circuit not cut by the general disconnecting device, red for specific circuits (safety, protected, etc.), green for class II equivalent protection circuit 1 union
1 input/1 output
Colour: Grey
Nominal section: 4 mm²
Rigid conductor capacity: 0.25 to 6 mm²
Flexible conductor capacity with or without terminal: 0. 25 to 4 mm²
Pitch: 6 mm. Viking™ 3 screw connection terminal blocks
for copper cable
They allow to ensure the electrical connection between 2 flexible copper conductors (with or without terminal) or rigid
2 zones for equipotential interconnection combs with automatic insertion up to 8 mm pitch (upper deck only for multi-storey blocks)
For symmetrical rails depth 15 mm, symmetrical EN 60715 depth 7.5 mm and 15 mm.
1462 Items

Order now and receive it...

21-01-2025   with  MRW

between 21-01-2025 and 22-01-2025   with  Correos

Product Details

EAN
3414971431492
Manufacturer
LEGRAND
Weight (kg)
0
Reference
LEGRAND 037161
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR EU responsible person
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR e-mail manufacturer
sat.espana@legrandgroup.es
