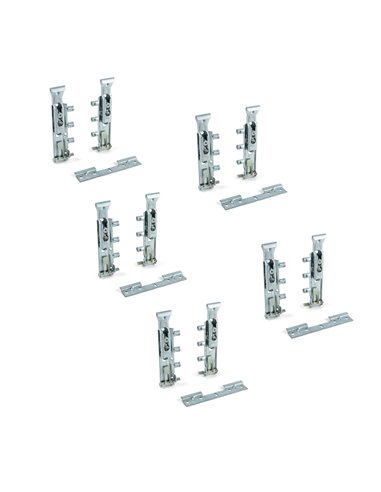

Emuca Lot of 5 hidden hanger kits for Levelup1 tall modules with plate, Steel, Zinc-plated

EMUCA 4030605
Out of stock
€38.41
VAT included
  • Hanging kit for upper modules in kitchen, bathroom and home furniture.
  • The hangers are hidden once the upper cabinets of the furniture are assembled.
  • For modules between 600 and 1,000 mm in height and from 300 to 350 mm in depth.
  • They have a right and left hand for placement in the furniture.

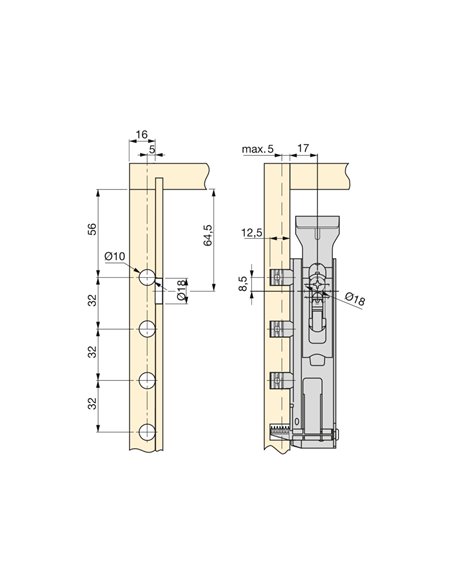

  • They can be adjusted once the module is hung with a 18 mm diameter machining.
  • With 3 adjustments: side 16 mm, height up to 18 mm and depth up to 25 mm.
  • The placement of the hangers on the wall is It is carried out using an included plate.
  • The fixation is carried out on the side of the module independent of the upper cover.
  • Requires preliminary drilling with a diameter of 10 mm for its assembly.
  • Each set has a load capacity of 65 kg of weight.
  • For better fixation it includes a rotating pin that is fixed to the module by moving the lever.
  • It is recommended to use a #2 Ø6 Philips screwdriver or a #2 Ø6 Pozidrive screwdriver.
  • Made of steel with a zinc-plated finish.

Description

Kit of hangers for upper cabinet modules in kitchen, bathroom and home furniture. It stands out for supporting large weight loads of up to 65 kg, and for its adjustment of the module position laterally, in height or in depth. They are placed on the wall using a plate and are hidden from view once mounted on the furniture. The only point visible from the inside of the furniture is a small machining that must be carried out to adjust the module once it is hung.

Product Details

High
10
Width
15
Color
Cincado
EAN
8432393279862
Manufacturer
EMUCA
Long
27
Material
Steel
Measures
-
Weight (kg)
1
4
Depth
27
Reference
EMUCA 4030605
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
GPSR e-mail manufacturer
info@emuca.es
