Emuca Hinge for glass door with stainless steel trim, horizontal hinge with 34mm blade, for 8-12mm door, stainless steel

EMUCA 1026165
Out of stock
€33.25
VAT included

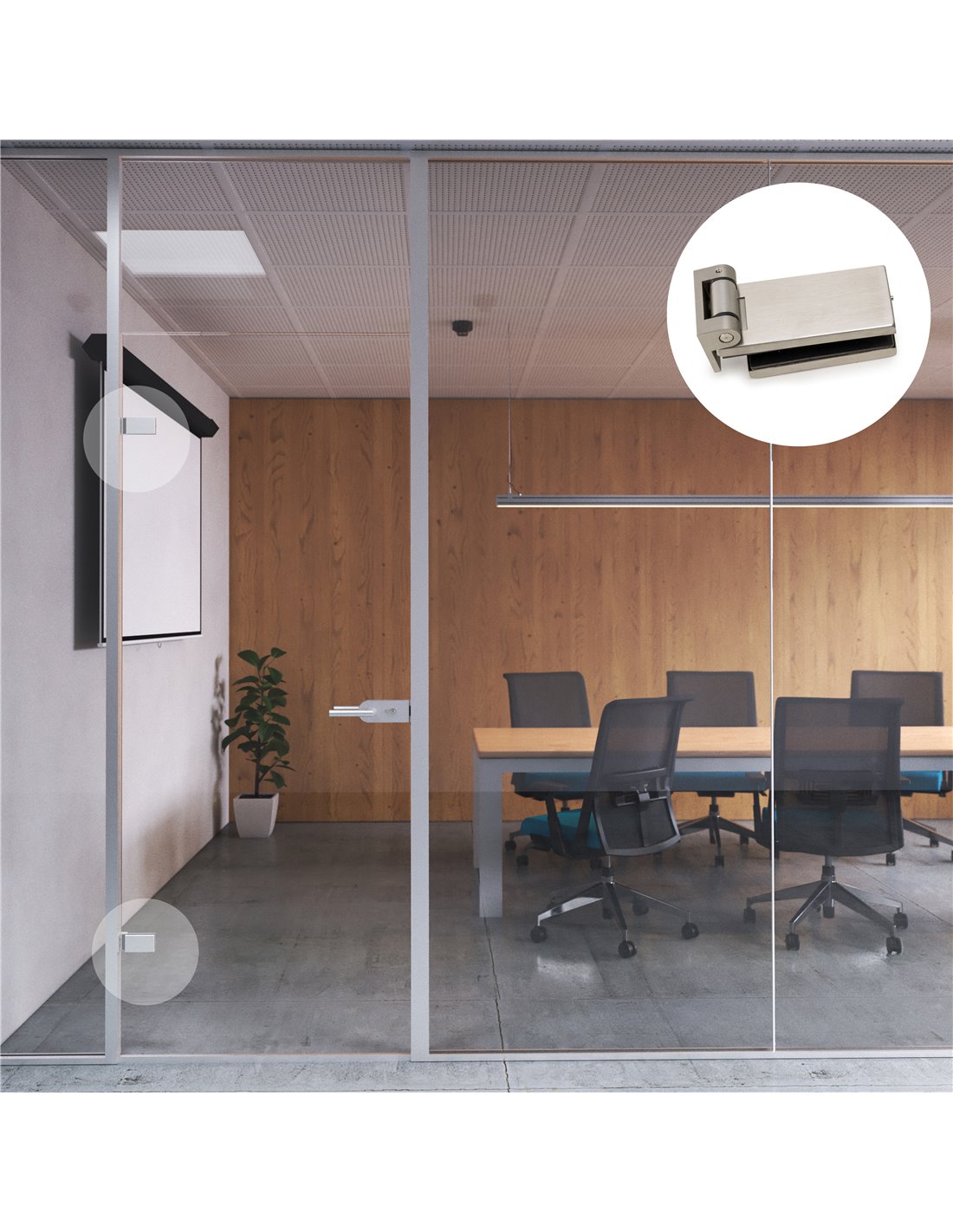

  • Horizontal hinge for glass door with stainless steel trims. Ideal for glass passage doors or showcases.

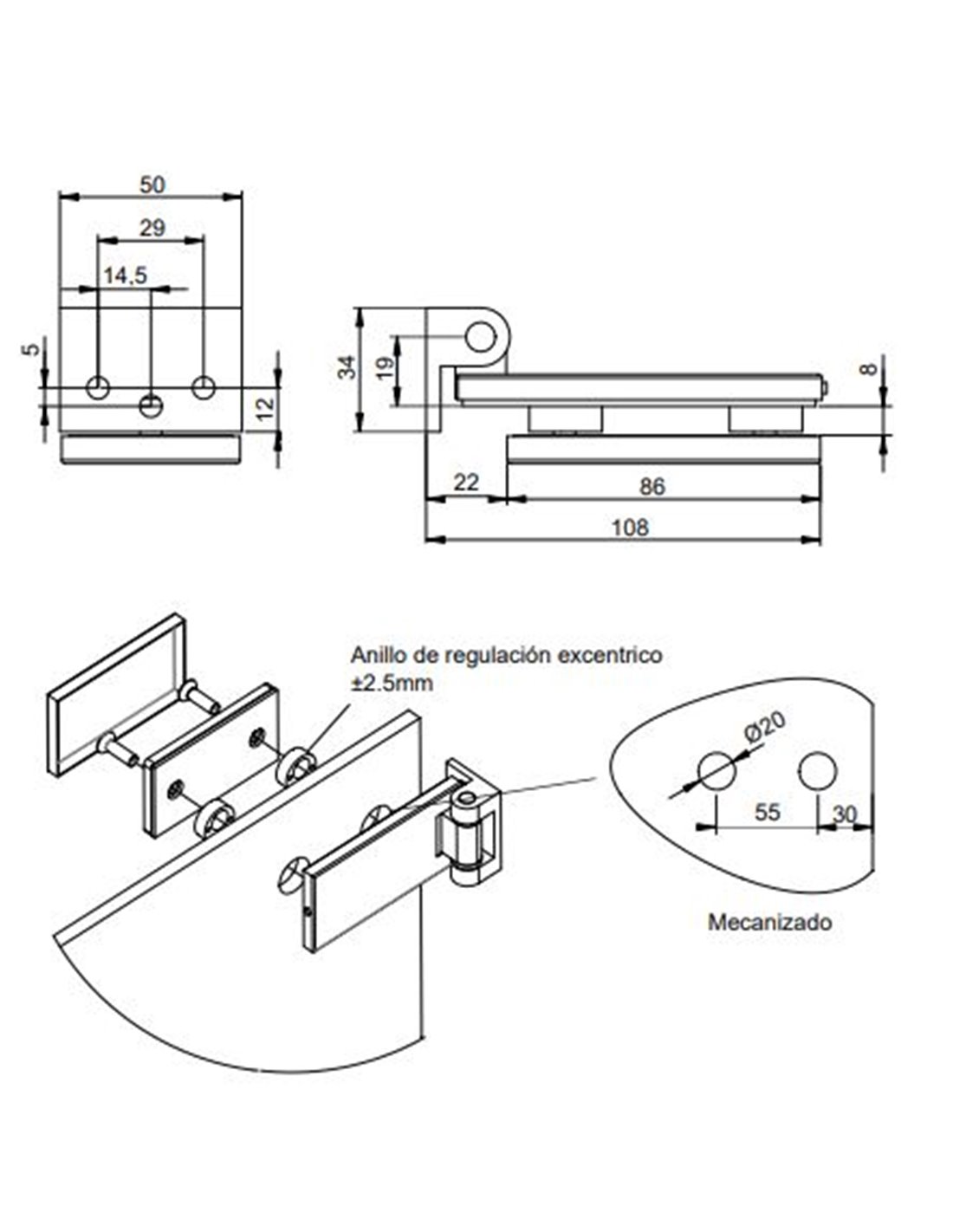

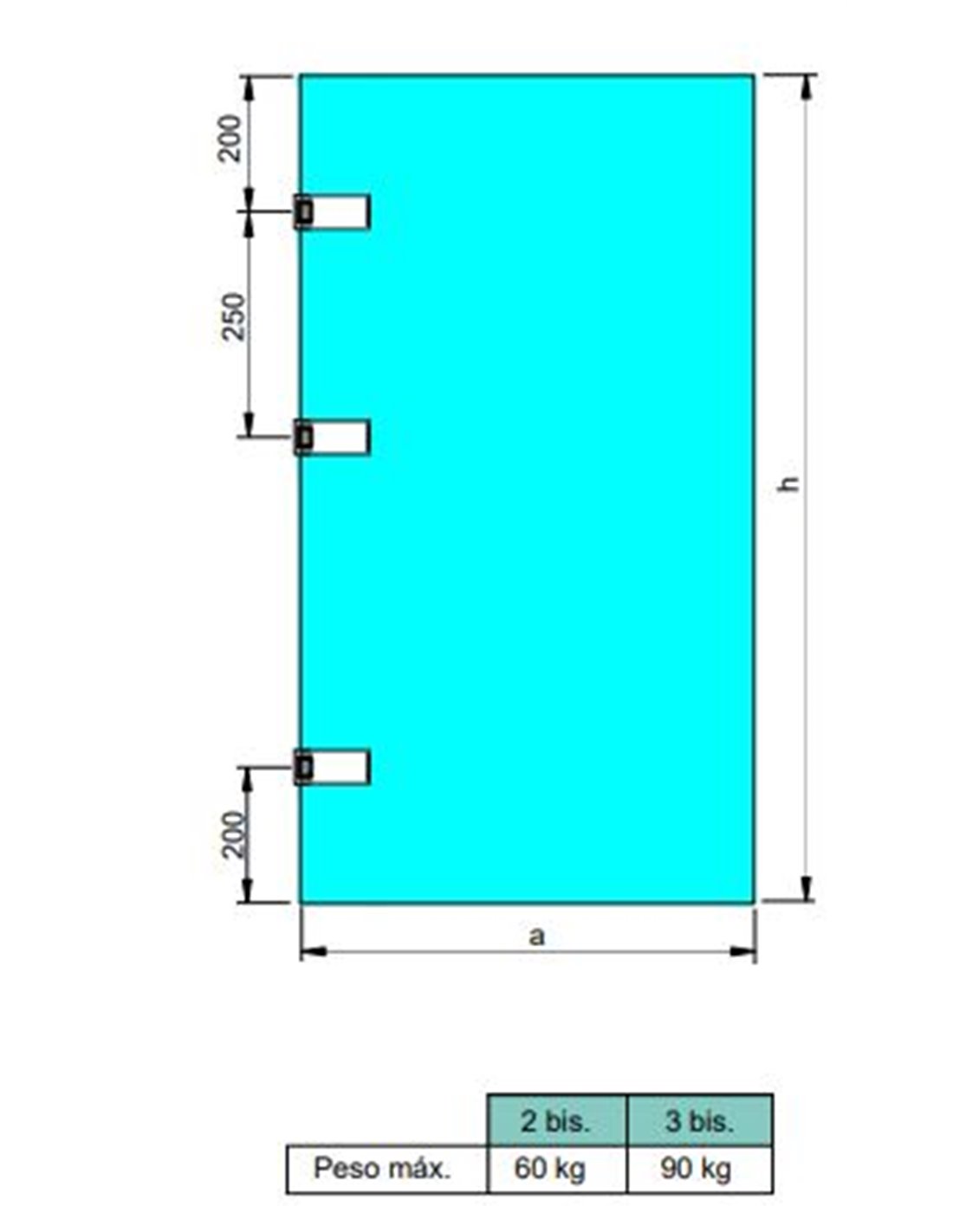

  • The hinge blade is 34mm, it can be installed on glass doors with a thickness of 8 to 12mm and has a rotation range of 180º. It has eccentric rings that allow adjustment of ±2.5 mm. Two hinges support 60kg and 3 hinges 90kg.
  • This hinge can be installed together with the Emuca glass door handles corresponding to code 9172662 or 9172762.
  • Made of steel.
  • Includes a hinge and all mounting hardware.

Quantity Unit discount You Save
5 10% €16.63
10 20% €66.50
Certificación
Wrapper image


Horizontal hinge for glass doors with stainless steel trims, ideal for glass passage doors, showcases or shower doors.

The hinge blade is 34mm, it can be installed on glass doors with a thickness of 8 to 12mm and has a rotation range of 180º. It has eccentric rings that allow adjustment of ±2.5 mm. Two hinges support 60kg and 3 hinges 90kg.

Made of aluminum. Includes a hinge and all mounting hardware.

High
5
Width
7
Color
Stainless steel
EAN
8432393317168
Manufacturer
EMUCA
Material
Steel
Weight (kg)
0
4
Depth
12
Reference
EMUCA 1026165
Certification
CE
