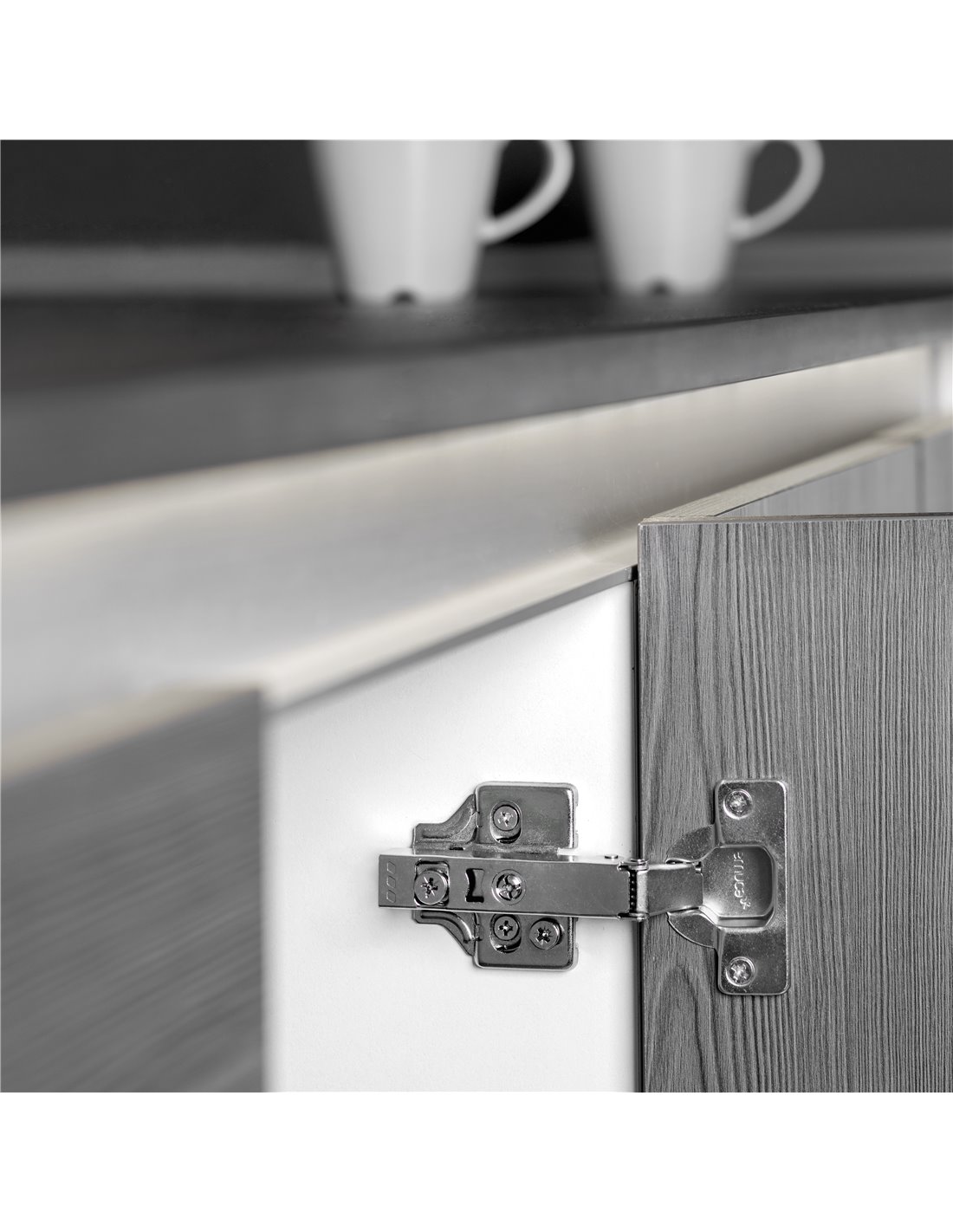

Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. They stand out for their shock-absorbing piston that provides soft closing of the door. They are available in straight version with a door opening of 105º. For installation, they require a previous 35 mm diameter drill for the cup. And their fixation to the board is done using the included screws.
They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment.
Emuca Lot of 20 X92 hinges with 105 degree opening with soft closing and inserts for screwing, Steel, Satin Nickel
EMUCA 1065607
Available
€28.34
VAT included
- Straight hinge with soft closing, Ø35 cup and 105º opening angle; valid for door thicknesses from 14 to 24 mm
- Clip or automatic assembly of the hinge to the insert.
- Three-dimensionally adjustable, with depth adjustment of the hinge by eccentric.
- The door completely overlaps the side of the furniture.
- Supplement for screwing height 0.
- Spring in the closure.
- Drilling range of cup D = 3 ~ 7 mm

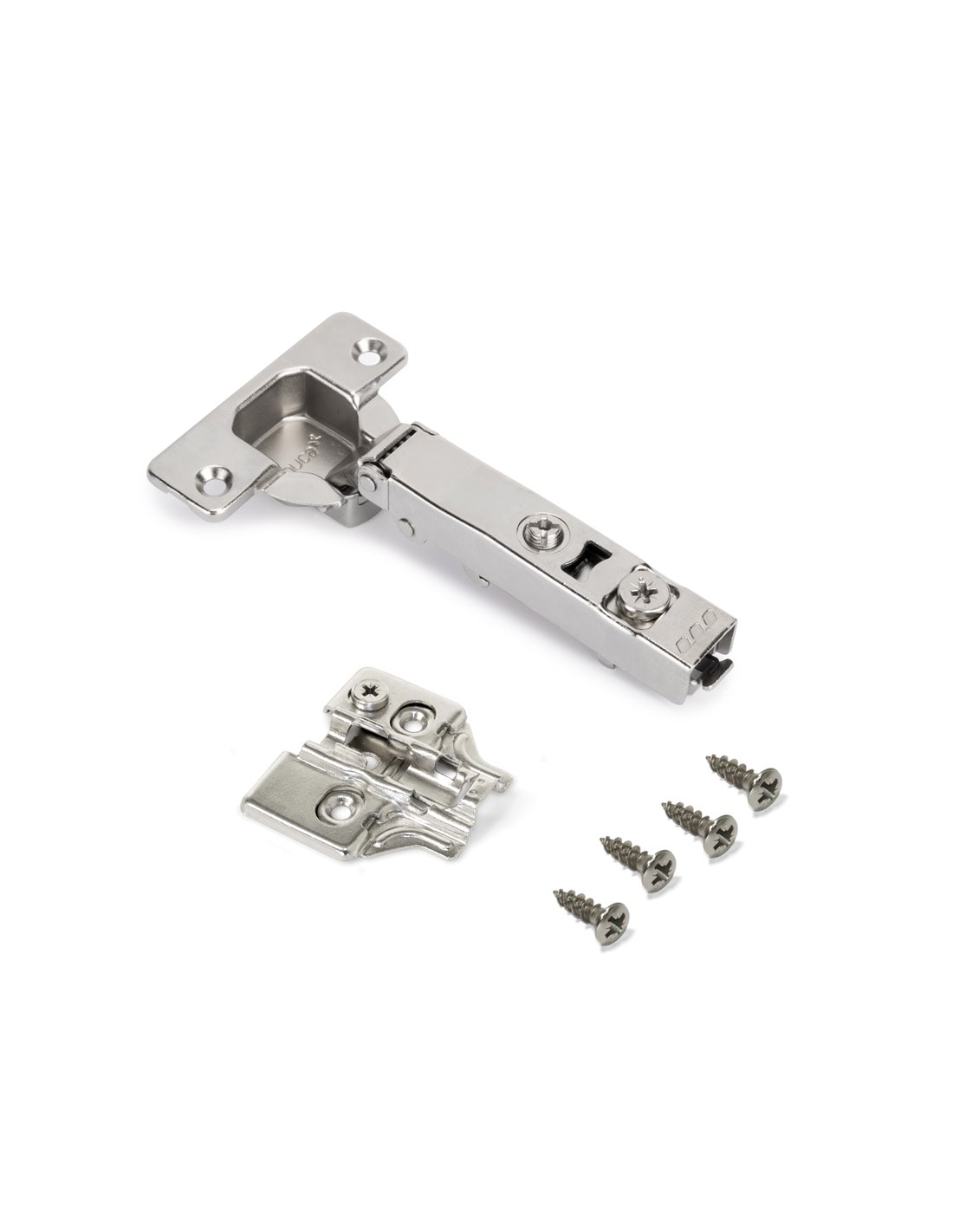

- 20 straight hinges, 20 inserts with eccentric height adjustment 0 and 80 screws for assembly.
Subscribe To When In Stock
You have successfully subscribed to this product
Description
Product Details
- High
- 8
- Width
- 19
- Color
- Niquelado
- EAN
- 8432393281889
- Manufacturer
- EMUCA
- Material
- Steel
- Weight (kg)
- 2
24 - Depth
- 25
- Reference
- EMUCA 1065607
- Certification
- CE
- Safety warning
- No
- GPSR Safety warning
- No
- GPSR Manufacturer information
- EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
- GPSR EU responsible person
- EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
- GPSR e-mail manufacturer
- info@emuca.es
