Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. The main characteristic of the X92N hinges is that they are the same as the X92 but without a damping device, that is, they come with the traditional door closing spring. These hinges are used in conjunction with the X92 hinges on the same door to reduce the soft effect and overall cost. They are available in straight, elbow and super elbow versions with a door opening of 105º. For installation, they require a previous drill with a diameter of 35 mm for the bowl. And its fixation to the board is done using included screws. They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment.
Emuca Lot of 20 straight hinges X92N to screw and supplements to screw, Steel, Nickel-plated
EMUCA 1125407
Available
€26.90
VAT included

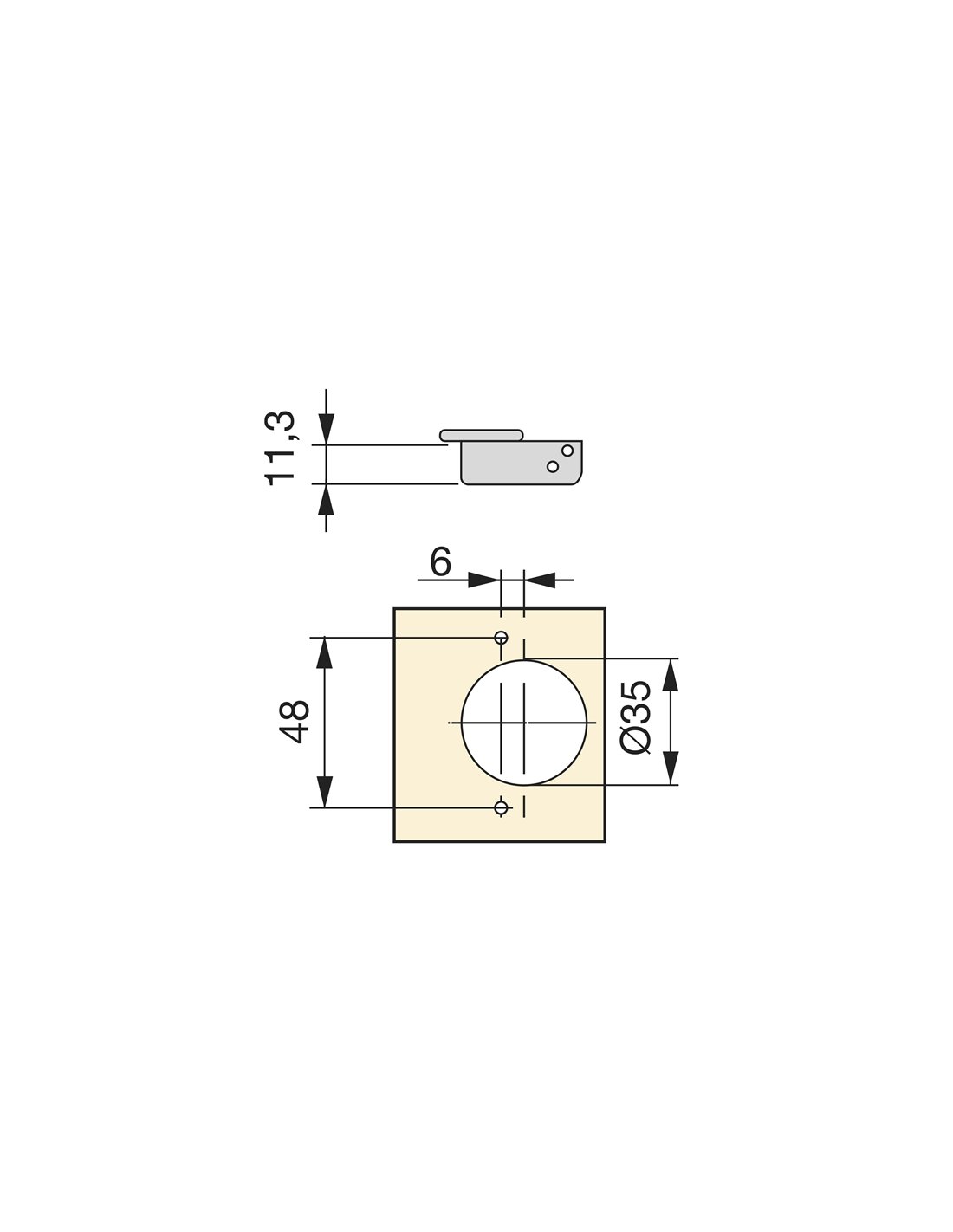

- Hinge with 35 mm diameter cup
- Clip or automatic assembly of the hinge to the insert.
- Three-dimensionally adjustable, with depth regulation by eccentric. li>
- Open angle 105⁰, with spring in closing.
- Valid for door thicknesses from 14 to 24 mm
- Drilling range of cup D = 3 ~ 7 mm
- The door completely overlaps the side of the furniture.
Subscribe To When In Stock
You have successfully subscribed to this product
Description
Product Details
- High
- 10
- Width
- 15
- Color
- Niquelado
- EAN
- 8432393303635
- Manufacturer
- EMUCA
- Material
- Steel
- Weight (kg)
- 2
33 - Depth
- 0
27 - Reference
- EMUCA 1125407
- Certification
- CE
- Safety warning
- No
- GPSR Safety warning
- No
- GPSR Manufacturer information
- EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
- GPSR EU responsible person
- EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
- GPSR e-mail manufacturer
- info@emuca.es
