Emuca Lot of 20 X91 elbow hinges with soft closing and inserts for screwing, Height 0, Steel, Nickel-plated

EMUCA 1011407
Available
€39.00
VAT included
  • X91 elbow hinge.
  • Screw fixing.
  • Cup with 35 mm diameter.
  • 105º opening.
    • li>It has a shock-absorbing piston for the soft closing of the door.
  • Automatic clip mounting system from the hinge to the supplement.
  • Door thickness from 14 to 24 mm.
  • Three-dimensionally adjustable.
  • Drilling range of cup D = 3 ~ 7 mm.
  • Depth regulation by eccentric.
  • Spring in both closing and opening.
  • Supplement .
  • Includes the screws necessary for assembly.
  • Made of nickel-plated steel.
29 Items

Quantity Unit discount You Save
5 10% €19.50
10 20% €78.00
Certificación
Wrapper image

Order it before 10 minutes and receive it on 09-12-2024 with MRW

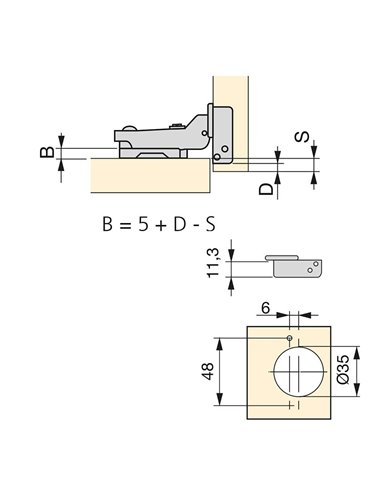

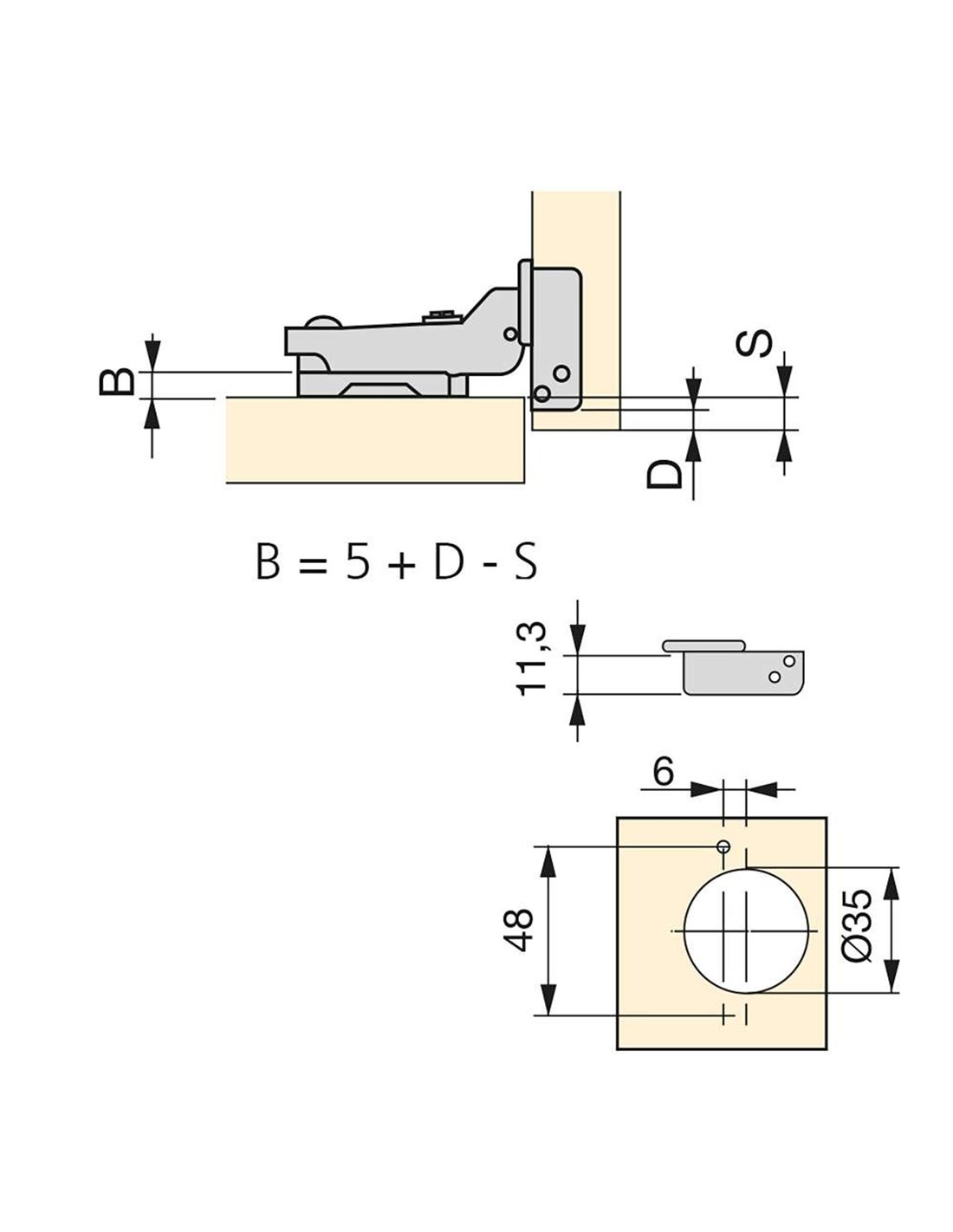

Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. They stand out for their shock-absorbing piston that provides soft closing of the door. They are available in straight version with a door opening of 105º. For installation, they require a previous drill with a diameter of 35 mm for the bowl. And its fixation to the board is done using included screws. They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment. The fixation of the supplement is carried out with a Euro screw that requires a previous drill with a diameter of 5 x 12 mm used in boards with a drill rack.

High
10
Width
15
Color
Niquelado
EAN
8432393003047
Manufacturer
EMUCA
Format
20 JG
Material
Steel
Measures
Codo
Other specifications
Codo
Weight (kg)
2
563
Depth
27
Reference
EMUCA 1011407
Certification
CE
Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, Espańa / info@emuca.es / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, Espańa / info@emuca.es / +34 963136906
