Emuca Lot of 20 X91 straight hinges with soft closing and Euro inserts, Height 0, Steel, Nickel-plated

EMUCA 1011607
Out of stock
€39.35
VAT included
  • Straight hinge li>It has a shock-absorbing piston for the soft closing of the door.
  • Automatic clip mounting system from the hinge to the supplement.
  • Door thickness from 14 to 24 mm.
  • Three-dimensionally adjustable.
  • Drilling range of cup D = 3 ~ 7 mm.
  • Depth regulation by eccentric.
  • Spring in both closing and opening.
  • Supplement X91.
  • Fixing with Euro D. 5 x 12 mm screw.
  • Height 0 mm.
  • With eccentric adjustment.
  • Includes the necessary screws for assembly.
  • Made of nickel-plated steel.

Quantity Unit discount You Save
5 10% €19.67
10 20% €78.70
Certificación
Wrapper image

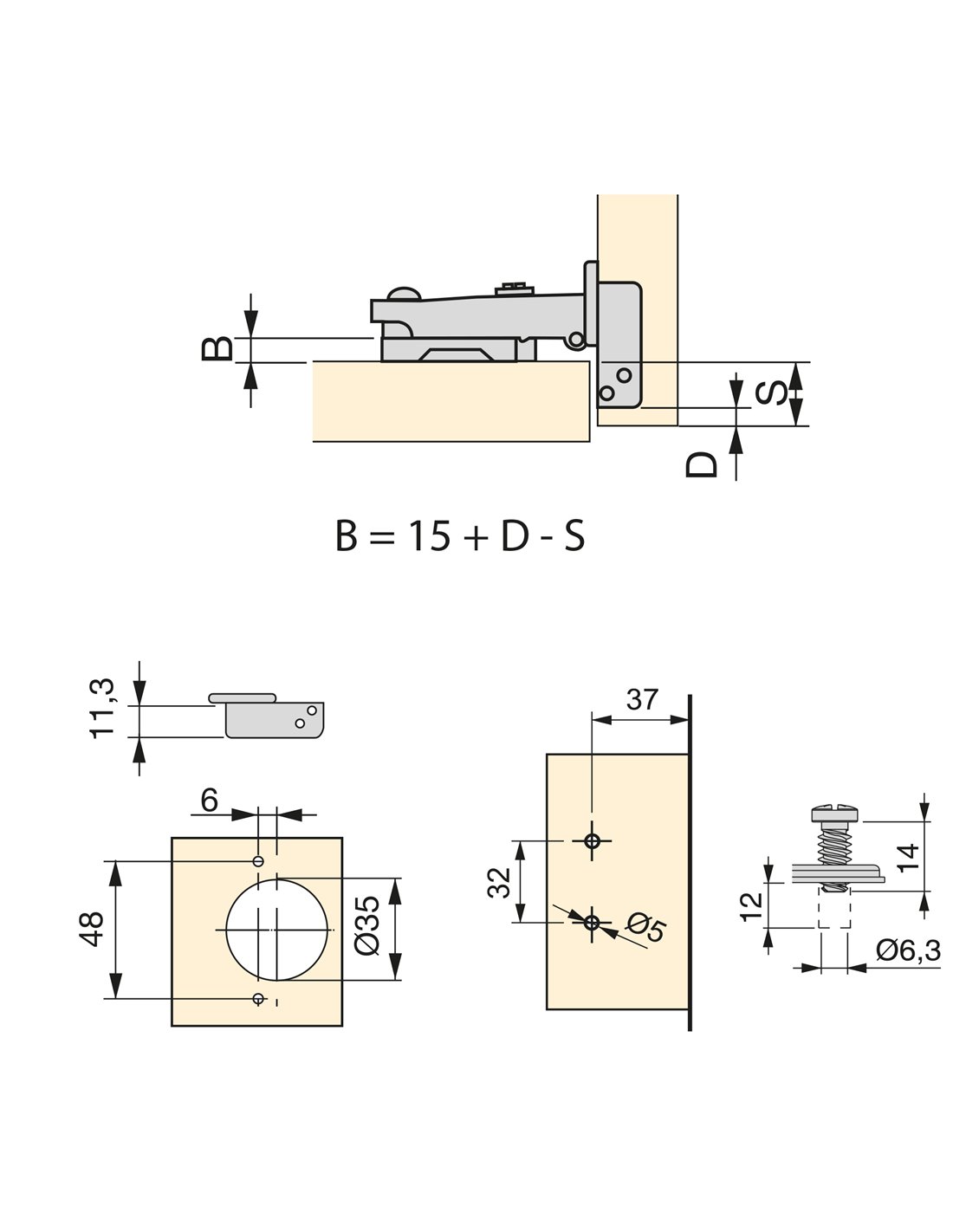

Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. They stand out for their shock-absorbing piston that provides soft closing of the door. They are available in straight version with a door opening of 105º. For installation, they require a previous drill with a diameter of 35 mm for the bowl. And its fixation to the board is done using included screws. They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment. The fixation of the supplement is carried out with a Euro screw that requires a previous drill with a diameter of 5 x 12 mm used in boards with a drill rack.

High
10
Width
15
Color
Niquelado
EAN
8432393003061
Manufacturer
EMUCA
Format
20 JG
Material
Steel
Measures
Recta
Other specifications
Recta
Weight (kg)
2
628
Depth
27
Reference
EMUCA 1011607
Certification
CE
Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, Espańa / info@emuca.es / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, Espańa / info@emuca.es / +34 963136906
