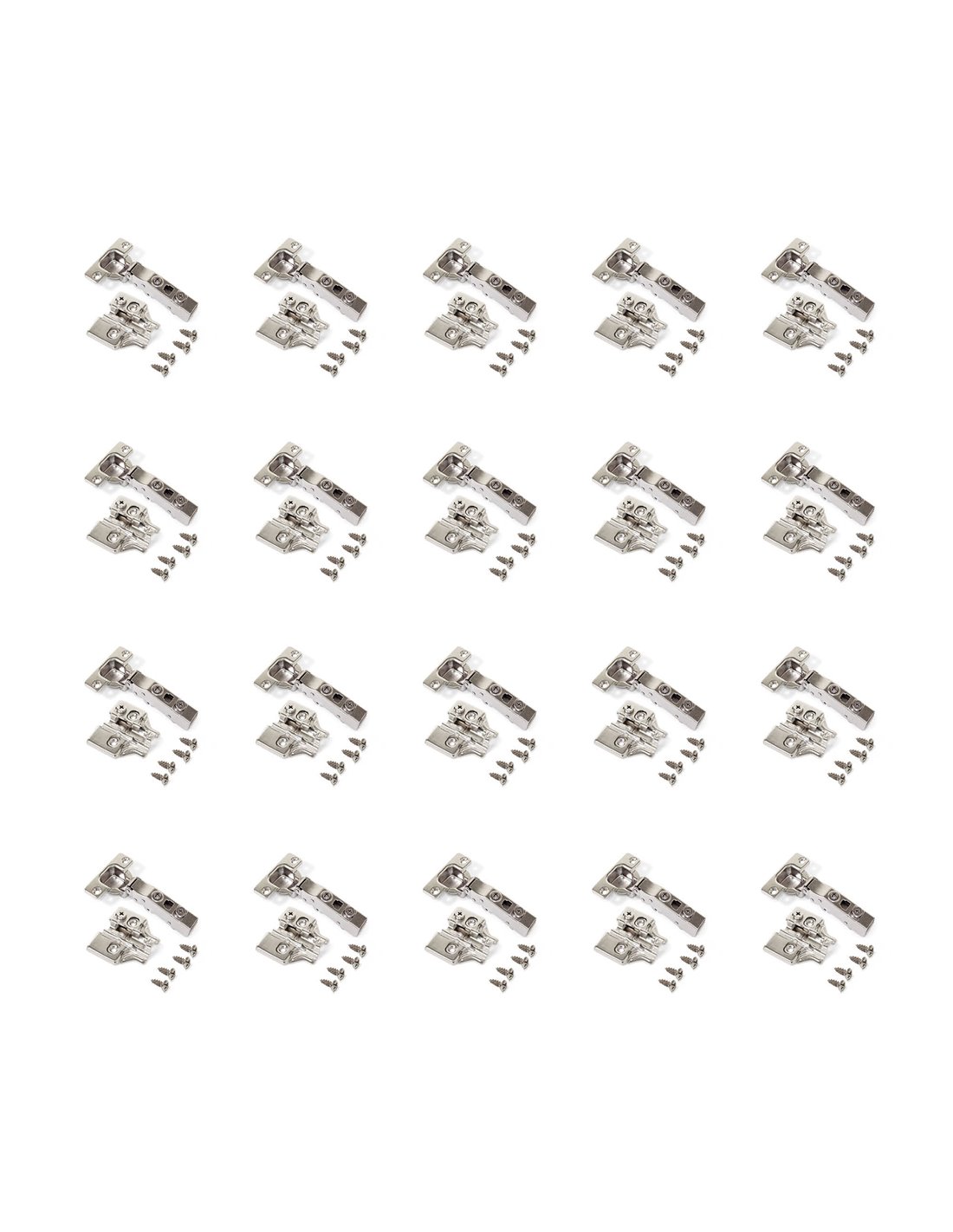

Emuca Lot of 20 X91N straight hinges with supplements for screwing, Height 0, Steel, Nickel-plated
- Straight hinge li>It is recommended to use the X91 and li>
- Three-dimensionally adjustable.
- Drilling range of cup D = 3 ~ 7 mm.
- Depth regulation by eccentric.
- Spring both in closing and in opening.
- Supplement/li>
- Includes the screws necessary for assembly.
- Made of nickel-plated steel.
- Certificación

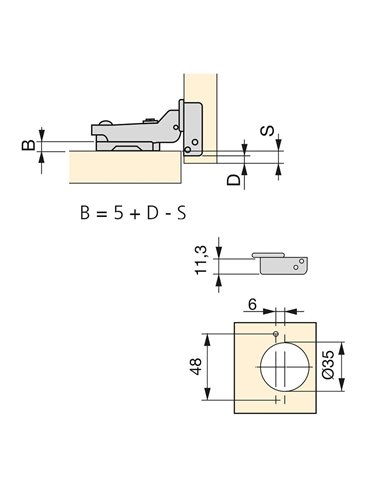

Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. The main characteristic of the X91N hinges is that they are the same as the X91 but without a damping device, that is, they come with the traditional door closing spring. These hinges are used in conjunction with the X91 hinges on the same door to reduce the soft effect and overall cost. They are available in straight, elbow and super elbow versions with a door opening of 105º. For installation, they require a previous drill with a diameter of 35 mm for the bowl. And its fixation to the board is done using included screws. They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment.
- High
- 10
- Width
- 15
- Color
- Niquelado
- EAN
- 8432393003009
- Manufacturer
- EMUCA
- Format
- 20 JG
- Material
- Steel
- Measures
- Recta
- Other specifications
- Recta
- Weight (kg)
- 2
34 - Depth
- 27
- Reference
- EMUCA 1011007
- Certification
- CE
