Emuca Set of side spacers for Hack frame, Stone gray plastic, Plastic,

EMUCA 7112436
Out of stock
€12.54
VAT included

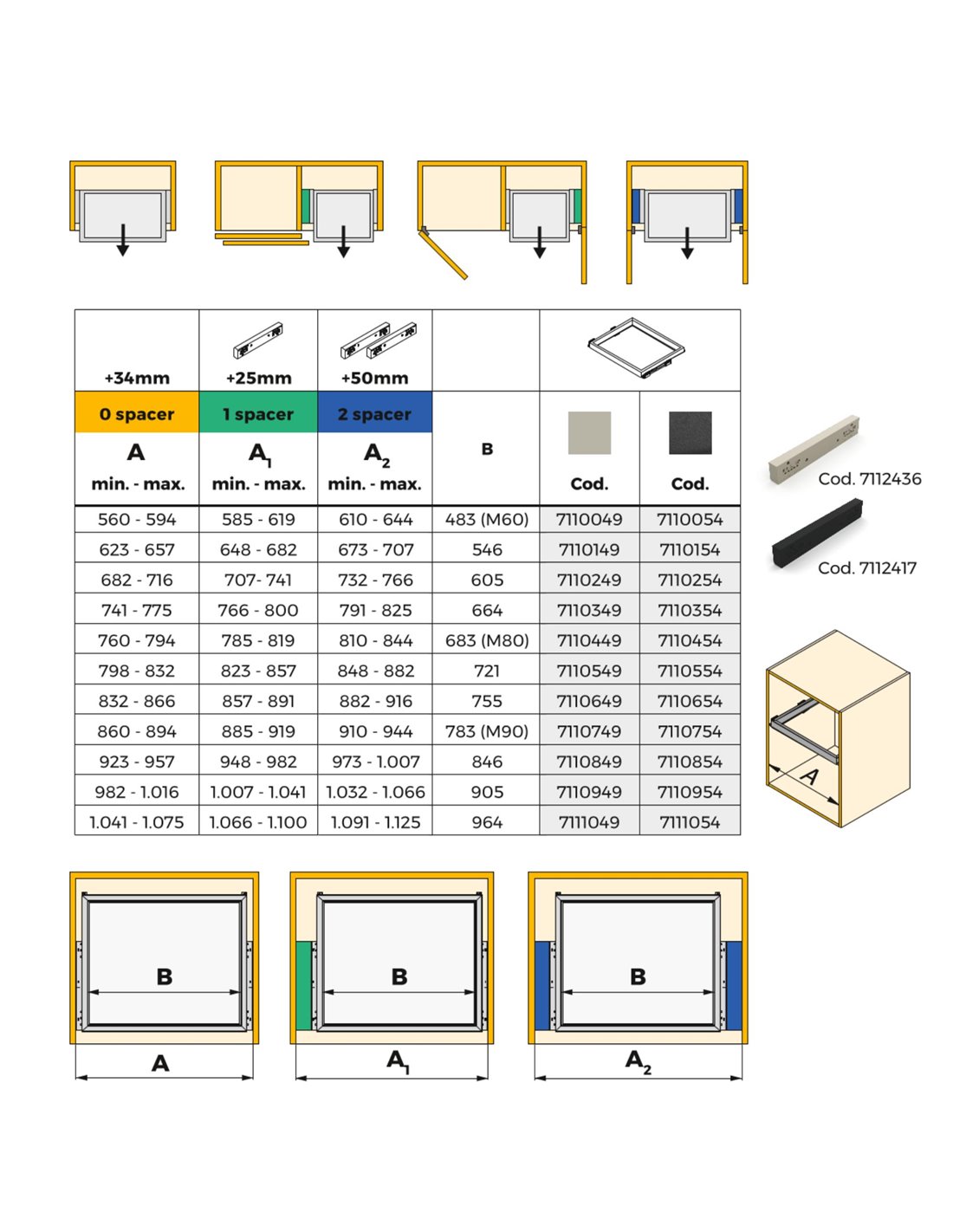

  • Set of side spacers to be installed together with the Hack removable frame in cabinets with hinged or sliding doors.
  • A spacer is required on the side of the cabinet where it coincides with the door and is install in the place where the guide goes. Its function is to leave a space of 25mm between the frame and the side of the cabinet so that the door does not collide with the frame.
  • You can first install the spacer to the cabinet with Ø4x25mm screws and then join the guide with EURO screws Ø6.2x13mm. Or you can pre-attach the spacer to the guide with some included clips, and then attach the assembly to the cabinet with Ø4x40mm screws.
  • Includes 4 side spacers and 16 EURO Ø6.2x13mm screws.
  • It is made of plastic with a stone gray finish.

Description

The side spacer is designed to be installed in cabinets with hinged or sliding doors together with the removable Hack frame. A spacer is required on the side of the cabinet where it coincides with the door and is installed in the place where the guide goes. Its function is to leave a space of 25mm between the frame and the side of the cabinet so that the door does not collide with the frame.

You can first install the spacer to the cabinet with screws. Ø4x25mm and then join the guide with Ø6.2x13mm EURO screws. Or you can pre-attach the spacer to the guide with some clips that it includes, and then attach the assembly to the cabinet with Ø4x40mm screws. 1 side spacer and 8 EURO Ø6.2x13mm screws are supplied. It is made of plastic with a stone gray or black finish, depending on the model selected.

Product Details

High
6
Width
11
Color
Gris piedra
EAN
8432393288369
Manufacturer
EMUCA
Material
Plástico
Weight (kg)
0
4
Depth
31
Reference
EMUCA 7112436
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / info@emuca.es / +34 963136906
GPSR e-mail manufacturer
info@emuca.es
