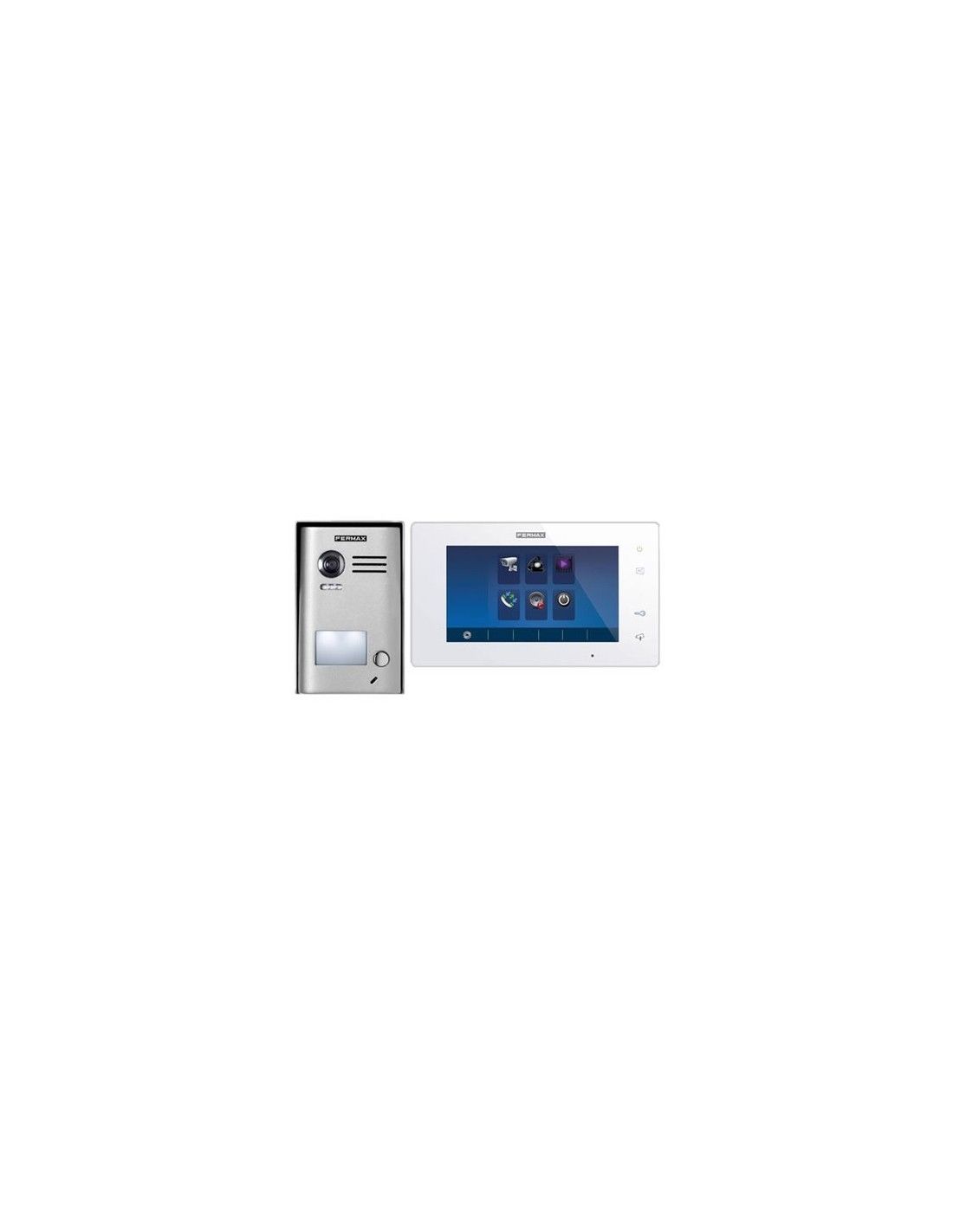

Kit cover kit WAY 7” 1-line FERMAX 1401
For those who like to do things differently, FERMAX presents the new Kit Way.
Choose from 20 melodies different, customize monitor settings, record videos and capture images of your visits, and all this in a single kit.
The kit Way includes a plate of street, made in zamak with CCD color camera series. Installation of surface.
- Intercommunication: communication between the monitors installed within the housing.
- Player: after 3 seconds, the monitor will automatically record a video (in the event that there is a micro SD card installed), or a picture of the visits. You also have the option of taking a picture manually while you answer the call. The videos/photos recorded from the plate of a street is displayed on the screen of the monitor.
- Adjustments: Brightness/contrast, selection of melodies, date and time, call volume for day and night, choice of languages (16 languages), etc
- Function “do Not disturb”: 1 hour, 8 hours or permanently.
- Call log: All the calls of the plate to the monitor, from the monitor to the motherboard such as between monitors, are recorded and can be reviewed later.
- Capacitive touch screen: digital Monitor TFT 7” color capacitive touch screen that allows intuitive use.
- Visor: Protects the plate of street, in the rain, snow, etc .. Included in kit.
Technical specifications of the video door WAY
Technology: 2-wire non-polarized
The kit includes:
- Plate street with a brim.
- Color Monitor TFT 7” with capacitive touch screen.
- Source of power.
Monitor specifications:
- Power supply for the monitor: DC 24~28V.
- Power consumption: Standby 12mA; Operation 350mA.
- Monitor screen: TFT digital colour 7” . Capacitive screen.
- Video signal: 1 Vpp, 75Ω, CCIR standard.
- Wiring: 2-wire, non-polarized.
- Dimensions: 225(H) x 131(V) x 18(P)mm
Specifications of the outdoor panel:
- Manufactured in Zamak.
- Card cases backlit.
- Visor for surface mounting.
- CCD color camera of high sensitivity.
- Sensor lighting.
- Control a relay to activate a door opener.
- Measures: 95(H) x 155(V) x 25(P)mm
- With the feeder included in the kit can be connected to an electric lock of 12Vdc 250mA.
Weight: 2,238 kg
Product dimensions packed: 25,7x23,4x15,5 cm
EAN 13: 8424299014012
