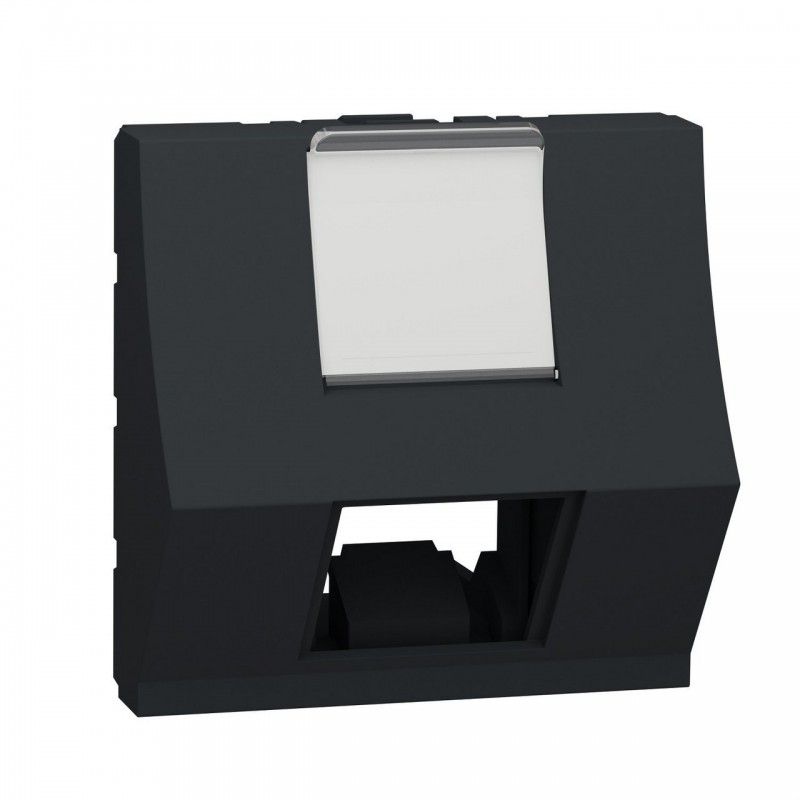

Angled RJ45 socket cover 2 modules anthracite SCHNEIDER NU940754

Schneider New Unica electrical mechanisms

SCHNEIDER NU940754

Angled RJ45 socket cover 2 modules anthracite SCHNEIDER NU940754

After many years in the market, the series returns more functional from Schneider with the new look. The new range, New Unica, comes with innovative solutions, with a renewed design and high performance for the home.

New Unica is Practical

The innovative solutions that New Unica presents respond to all installation needs, both residential and tertiary. In addition, guaranteeing backward compatibility with Unica products already installed.

New Unica is Innovative

With Wiser, Schneider Electric's Smart Home solution, we can control our facilities like never before imagined. The control of your home will evolve as the connection needs in your home change. From a simple local control of lighting or blinds with our mobile phone to total control
from anywhere, through useful simple programming to create environments according to your day to day.
Without complicated or expensive installations, without works or hassles. Simply replacing the existing mechanisms.

New Unica is Attractive

New Unica presents new designs in shapes and materials that adapt to your decorative needs:

Studio : simplicity in shapes and finishes.
Studio Color : personalization of each of your environments.
Studio Metal : presence and elegance.
Pure : the essence of noble materials.

Ease of installation

New Unica mechanisms and sockets They have been designed with the needs of the installer in mind. Its modular design and its fixing systems allow installation on any support. Included on a channel, without frame or special frames, which provides great versatility.
Built to make handling intuitive, comfortable and practical, so as to help solve those small problems that always arise in any installation.

Backward compatibility

As Unica has long been a reference product for installation in homes and buildings across Europe, it was vitally important that New Unica was backward compatible with it. That is why we designed New Unica, to further improve a product like Unica, ensuring its integration in these facilities when necessary.

Schneider New Unica mechanisms

Modular mechanisms available in 2 dimensions of key: 1 module 22.5 x 45 and 2 modules 45 x 45.

Clipping dimensions of the 40 mm mechanisms that allow direct fixing on the channel without the need for special frames.

Keys and covers made of halogen-free, self-extinguishing technopolymer with high resistance to impact and UV rays in Glossy Polar White
(RAL 9003), Matt Aluminum and Matt Anthracite (RAL 7021) finishes.

Mechanisms designed to achieve maximum space for wiring inside the box. Greater handling comfort and ease of installation.

In the switches and pushbuttons, the connection terminals are on the same side to facilitate and speed up the connection.

In the crossings, each one of The 2 circuits are of different color for an easy distinction of each circuit.

Separation partitions between terminals that make contact between cables impossible.

Conical inputs for the cables that facilitate connection with flexible cable.

10A mechanisms with quick rear terminal connection prepared for rigid or flexible cable with easy identification of phase terminal by means of red terminal.

The input of non-active terminals are Blocked to speed up the installation.

16A mechanisms with screw terminal connection.

Electrical characteristics:

• Contact opening distance & gt; 3 mm
• Insulation resistance & gt; 5 Mohm at 500 V
• Minimum breaking capacity : 200 operations at 1.25 x In and 275 V with cosφ = 0.3

• Minimum service life: 40,000 changes of position at 1.25 x In and 250 V with cosφ = 0.6
