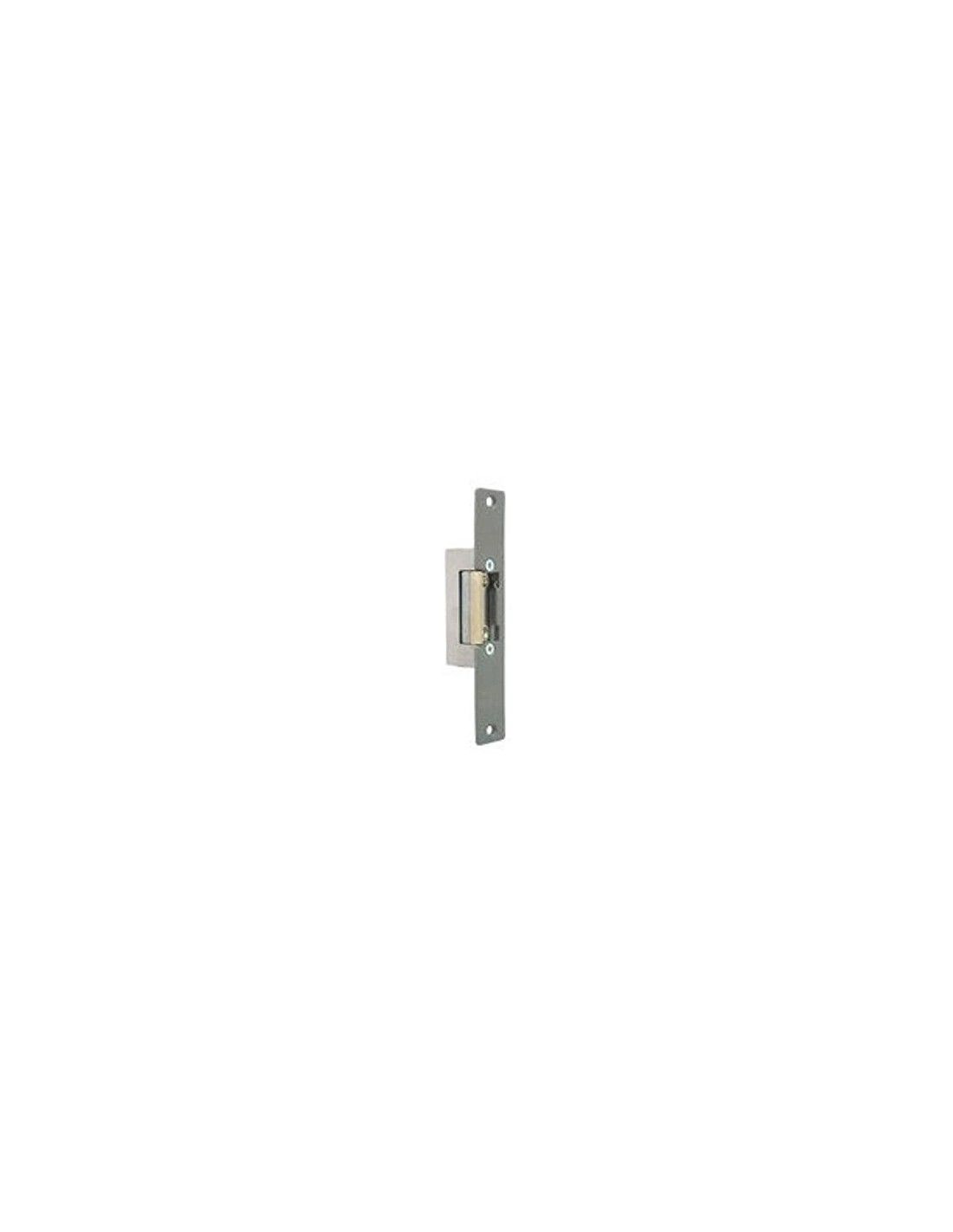

The built-in electric lock release is a device that is installed in the door frame to control its opening from a remote place by means of an electrical device. In an electronic door entry system, it is possible to activate the door opener at the entrance to the building and allow the visitor access from the telephone or monitor of the house by pressing the 'key' button for the door opener. A flush-mount lock release is composed of an electrical mechanism and an armature.
Reversible (DIN Right or DIN Left).
It allows the opening both to the right and to the left.
Symmetrical.
It allows changing hands while maintaining the symmetry of the body.
DIN REGULATIONS
DIN REGULATIONS establishes the opening direction of the door and designates the type of lock release installed.
Looking at the door from the side where the hinges are visible:
-If the Hinges are to the left of the observer, it is a Left DIN lock release.
-If the hinges are to the right of the observer, it is a Right DIN lock release.
There are several types of lock release mechanisms, it depends on the TYPE OF OPERATION required.
TYPE N-412_NORMAL 12Vdc:
• N-412 (Normal Operation and activation at 12 Vdc): the lock release it is unlocked for as long as a voltage of 1 is applied to it 2 Vdc.
D UNLOCKING
The lock release includes a manual release lever, which inhibits its operation, allowing free access.
< b> MAX ADJUSTABLE LATCH:
The lock release includes an adjustable latch, allowing an exact fit between the latch and the latch of the lock, with a margin of 4mm. Allows the door leaf not to press the lock release latch.
Embedding frame Type S.
For interior doors.
Gray metallic trim type S that together with an electrical mechanism forms a flush-mount lock release.
Dimensions: 25 (H) x160 (V) mm.
TECHNICAL SPECIFICATIONS
Weight: 0.2459 kg
Measures of the packed product: 3.4x16.3x2, 7 cm
EAN 13: 8424299305912
