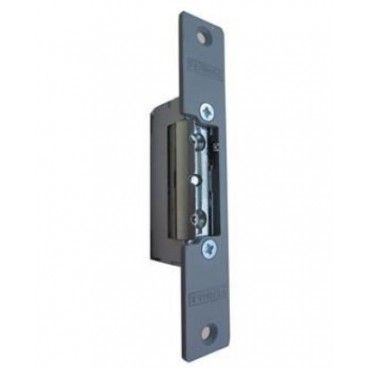

The built-in electric lock release is a device that is installed in the door frame to control its opening from a remote place by means of an electrical device. In an electronic door entry system, it is possible to activate the door opener at the entrance to the building and allow the visitor access from the telephone or monitor of the house by pressing the 'key' button for the door opener. A flush-mount lock release is made up of an electrical mechanism and an armature.
TECHNICAL SPECIFICATIONS
DIMENSIONS
66 (V) x 16 (H) x 25.5 (P)
MAX regulation: 2mm
Holding force: 330kg-f/3230N
Temperature: -15ºC to + 40ºC
Tested cycles: 400,000
Power supply:
12-24 Vac/dc
Active consumption:
12Vac/dc 250mA
24Vac 500mA
24Vdc 560mA
Automatic operation.
With adjustable latch.
Weight: 0.1964 kg
Measures of the packed product: 3.4x16.3x2 , 7 cm
EAN 13: 8424299675244
