The MECHANISM electrical is a device which is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the mechanism of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener is composed by an electrical mechanism and an armature or sheath depending on if it is recessed or surface.
SERIES 540

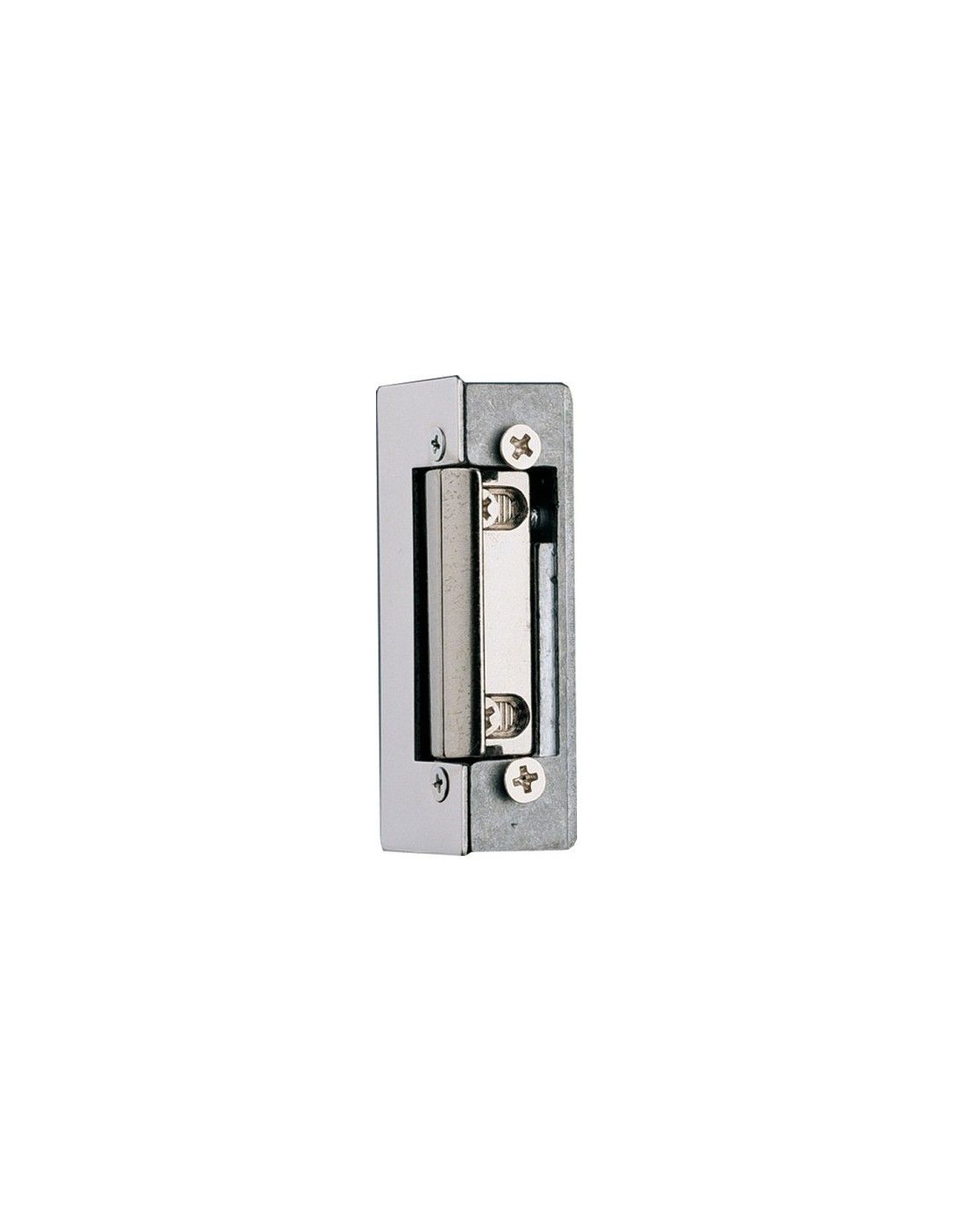

Mechanism electric STANDARD Series 540, whose dimensions are:
67(V)mmx20,5(H)mmx28(P)mm
Recessed in frames of wood or metal. Its small size (67mm height) allows change of hand without having to enlarge the hole which houses the opener and makes it especially suitable for the aftermarket as well as for new work.
Its standard version offers latch adjustable MAX, which allows the adjustment between the latch and the floor protector with an adjustment of up to 3mm, in the process of installation.
It is recommended that your installation flush-mounted with the armature short type S ref. 2973 or for doors with input of lock, the long type M REF. 2893.
Recommended for installation in surface caps concealed fastening type 2005 (chrome plated) ref.2983, type 2007 (gray) ref. 2964 or subject view type 2001 (chrome plated) ref. 2979, type 2006 (grey) ref. 2987.
Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Symmetric.
Allows you to change the hand while maintaining the symmetry of the body.
ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.
There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE N_NORMAL 12Vac:
• N (Normal Functioning and activation at 12 Vac): the electric lock is unlocked during the time that applies a voltage of 12 Vac.
MAX LATCH ADJUSTABLE:
The opener includes a latch adjustable, allowing a precise adjustment between the latch and the slip of the lock, with a margin of 4mm. Allows the door leaf do not press on the latch of the door opener.
Specifications
Consumption:
N, A 12Vac: 560mA
N-412 12Vdc: 260mA.
N-424 24Vdc: 180mA.
N-512 12Vdc: 200mA.
N-524 12Vdc: 120mA.
Dimensions:
Series 540, 67(V)mmx20,5(H)mmx28(P)mm
MAX Latch adjustable: 3mm
Weight: 0,1650 kg
Measures of the product to be packed: 2,7x10,2x3,2 cm
EAN 13: 8424299017778
