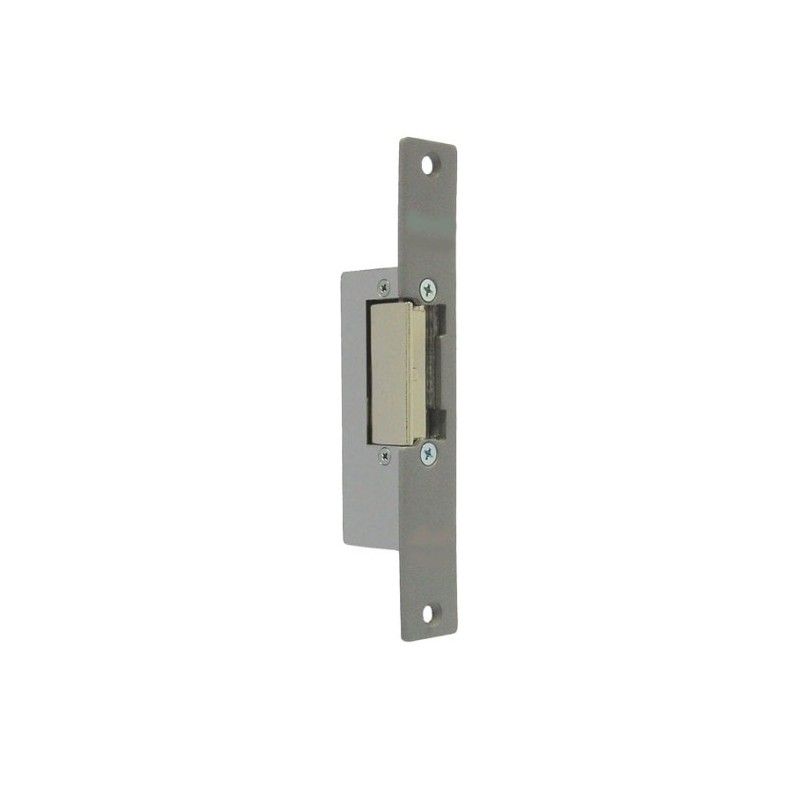

Opener 300N-S
Manufacturer: FERMAX
Recessed.
The electric opener recessed luminaire is a device that is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the electric lock of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener flush mount is composed of an electrical mechanism and an armature.
300 SERIES
This door opener is composed by an electric mechanism series 300, whose dimensions are:
90(V)x20(H)mmx28(P)mm, the use in version MAX allows you to adjust the latch up to 4mm.
Recessed in frames of wood or metal. Are characterized by their rugged design and low power consumption in direct current.
Includes:
Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Non-symmetrical.
Allows you to change the hand, but taking into account that the body does not keep symmetry with the change from DIN RIGHT DIN LEFT.
ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.
There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE N_NORMAL 12Vac:
• N (Normal Functioning and activation at 12 Vac): the electric lock is unlocked during the time that applies a voltage of 12 Vac.
Armor of recessed Type S.
For passage doors.
Bezel grey metallic S-type that is attached to an electrical mechanism to form an electric lock recessed.
Dimensions: 25(H)x160(V) mm
Consumption:
N, A 12Vac: 980mA
N-412 12Vdc: 180mA.
N-424 24Vdc: 180mA.
N-512 12Vdc: 150mA.
N-524 24Vdc: 120mA.
Dimensions:
90(V)mmx20(H)mmx28(P)mm
Weight: 0,2775 kg
Product dimensions packed: 3,4x16,3x2,7 cm
EAN 13: 8424299029115
