Description
The MECHANISM electrical is a device which is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the mechanism of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener is composed by an electrical mechanism and an armature or sheath depending on if it is recessed or surface.

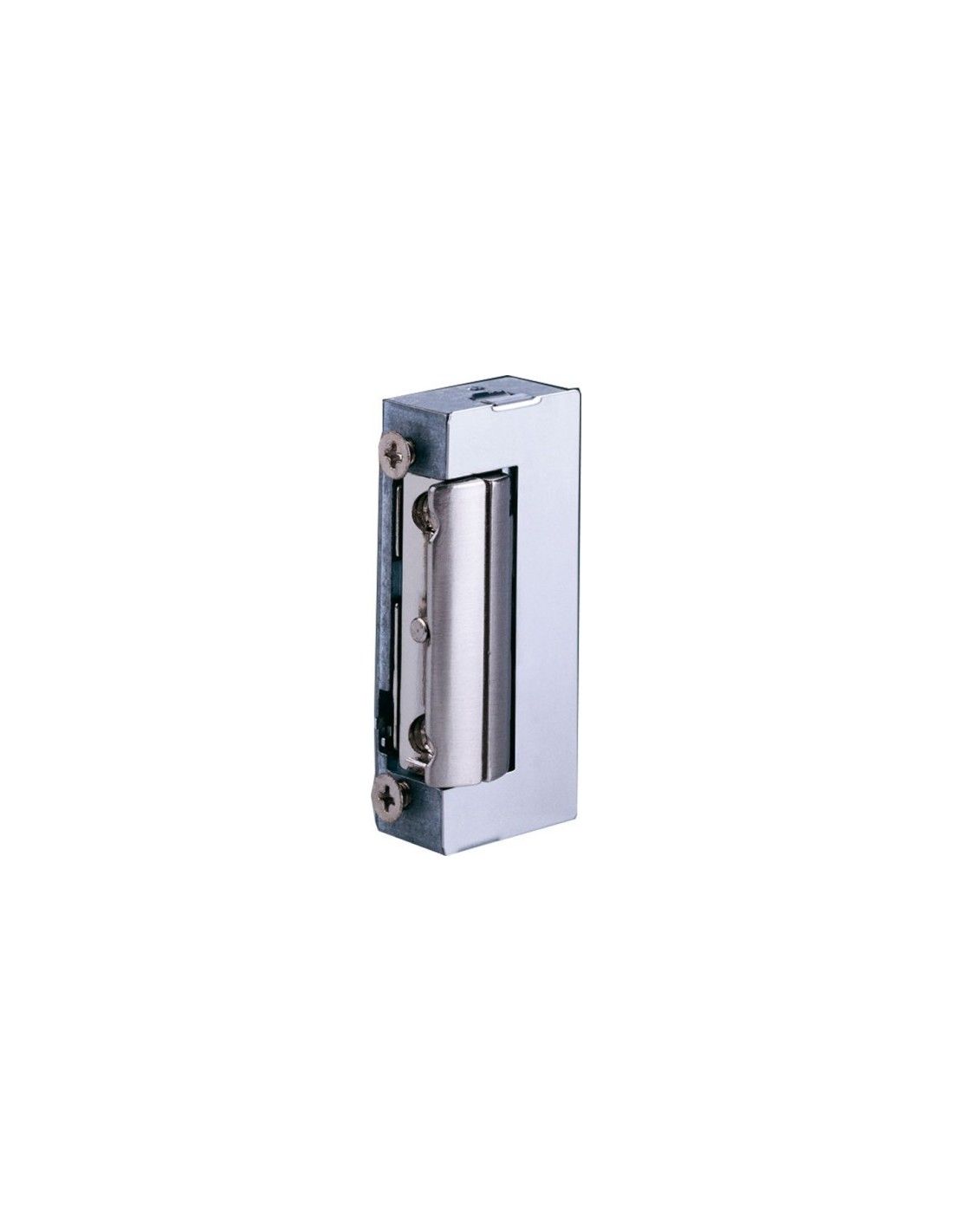

SERIES 410
Electric mechanism series 410, whose dimensions are:
67(V)x16,4(H)mmx28(P)mm.
Recommended to mark European profile of aluminium or PVC. Mechanism with bezel 16.4 mm
Includes latch RADIAL that allows you to rotate the latch about its own axis without having to make the court side in the door frame, which is not possible in electric lock with latch traditional.
Its standard version offers latch adjustable MAX, which allows the adjustment between the latch and the slip of 1mm, in the process of installation.
It is recommended that your installation flush-mounted with the armature short-P22 ref. 2894 width special 22mm or for doors with input of lock armor long-L22 REF. 2892, also 22mm wide.
Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Symmetric.
Allows you to change the hand while maintaining the symmetry of the body.
ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.
There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE A_AUTOMÁTICO 12Vac:
• A (Automatic Functioning and activation at 12 Vac): the electric lock is automatically unlocked when receiving a pulse voltage of 12Vac. The opener will re-lock once it stops being tension and mechanically opens and again closes the door. For a correct installation the teton machine must be pressed in about 3mm for the floor protector to the door once it is closed.
D UNLOCK
The opener includes a lever for manual release, which inhibits its operation, allowing free access.
MAX LATCH ADJUSTABLE:
The opener includes a latch adjustable, allowing a precise adjustment between the latch and the slip of the lock, with a margin of 4mm. Allows the door leaf do not press on the latch of the door opener.
Specifications
Consumption:
N, A 12Vac: 980mA
N-412 12Vdc: 400mA.
N-512 12Vdc: 200mA.
Dimensions:
Series 410, 67(V)mmx16,4(H)mmx28(P)mm
MAX Latch adjustable: 1mm
Weight: 0,1405 kg
Measures of the product to be packed: 2,7x10,2x3,2 cm
EAN 13: 8424299029146
