Description
Recessed.

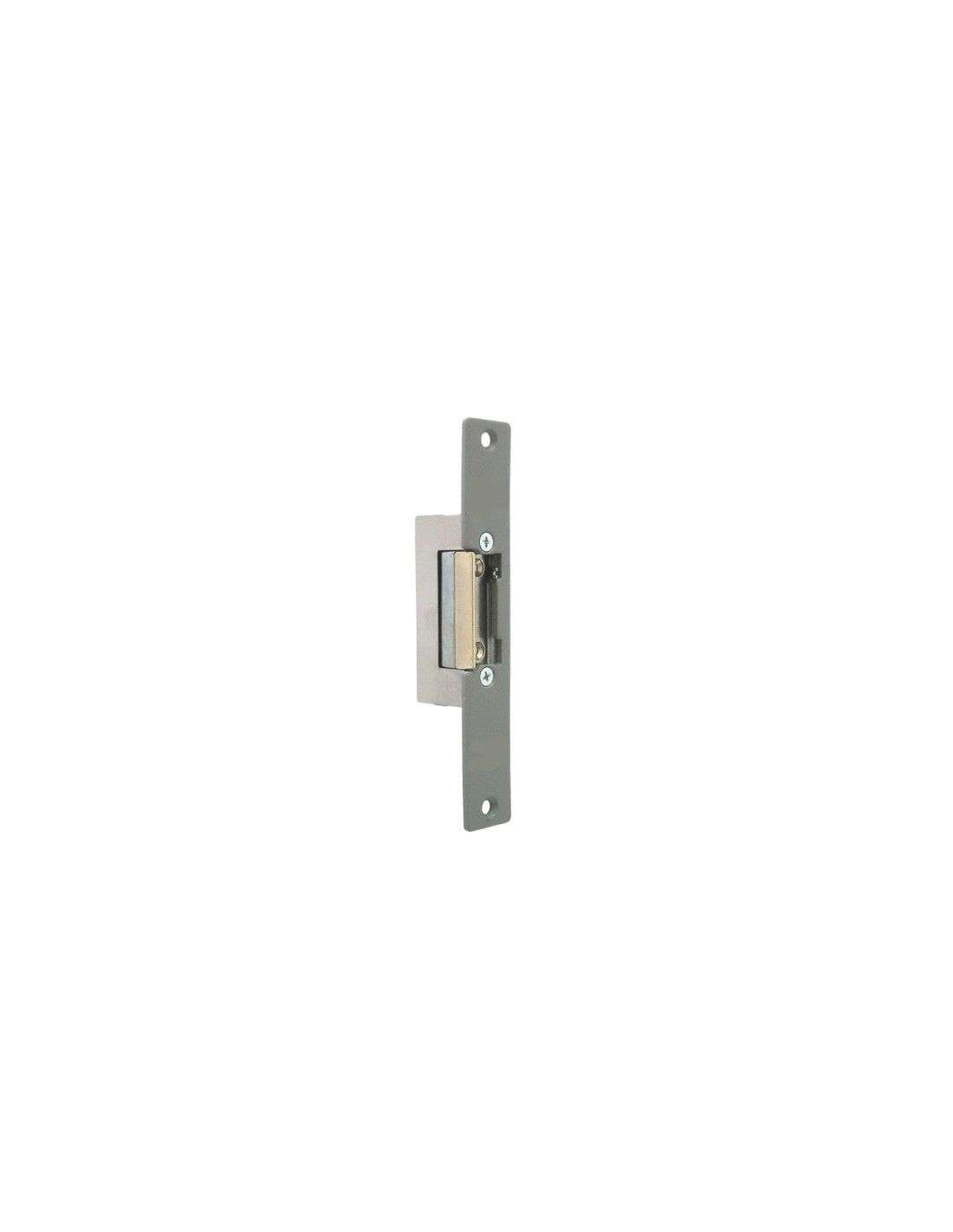

The electric opener recessed luminaire is a device that is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the electric lock of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener flush mount is composed of an electrical mechanism and an armature.
SERIES 410
This door opener is composed by an electric mechanism series 410, whose dimensions are:
67(V)x16,4(H)mmx28(P)mm.
Recommended for replacement. The garage door opener includes the mechanism with a width of frontal 16.5 mm
Installed in aluminium profiles and PVC small size.
Includes latch RADIAL that allows you to rotate the latch about its own axis without having to make the court side in the door frame, which is not possible in electric lock with latch traditional.
Its standard version offers latch adjustable MAX, which allows the adjustment between the latch and the slip of 1mm, in the process of installation.
Includes:
Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Symmetric.
Allows you to change the hand while maintaining the symmetry of the body.
ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.
There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE N_NORMAL 12Vac:
• N (Normal Functioning and activation at 12 Vac): the electric lock is unlocked during the time that applies a voltage of 12 Vac.
MAX LATCH ADJUSTABLE:
The opener includes a latch adjustable, allowing a precise adjustment between the latch and the slip of the lock, with a margin of 4mm. Allows the door leaf do not press on the latch of the door opener.
Armor of recessed Type P22.
For passage doors.
Bezel grey metallic-type P22, which, together with an electrical mechanism to form an electric lock recessed. Recommended for aluminium profiles and PVC small size.
Dimensions: 22(H)x130(V) mm
Specifications
Consumption:
N, A 12Vac: 980mA
N-412 12Vdc: 400mA.
N-512 12Vdc: 200mA.
Dimensions:
67(V)mmx16,5(H)mmx28(P)mm
Weight: 0,1865 kg
Product dimensions packed: 3,4x16,3x2,7 cm
EAN 13: 8424299030401
