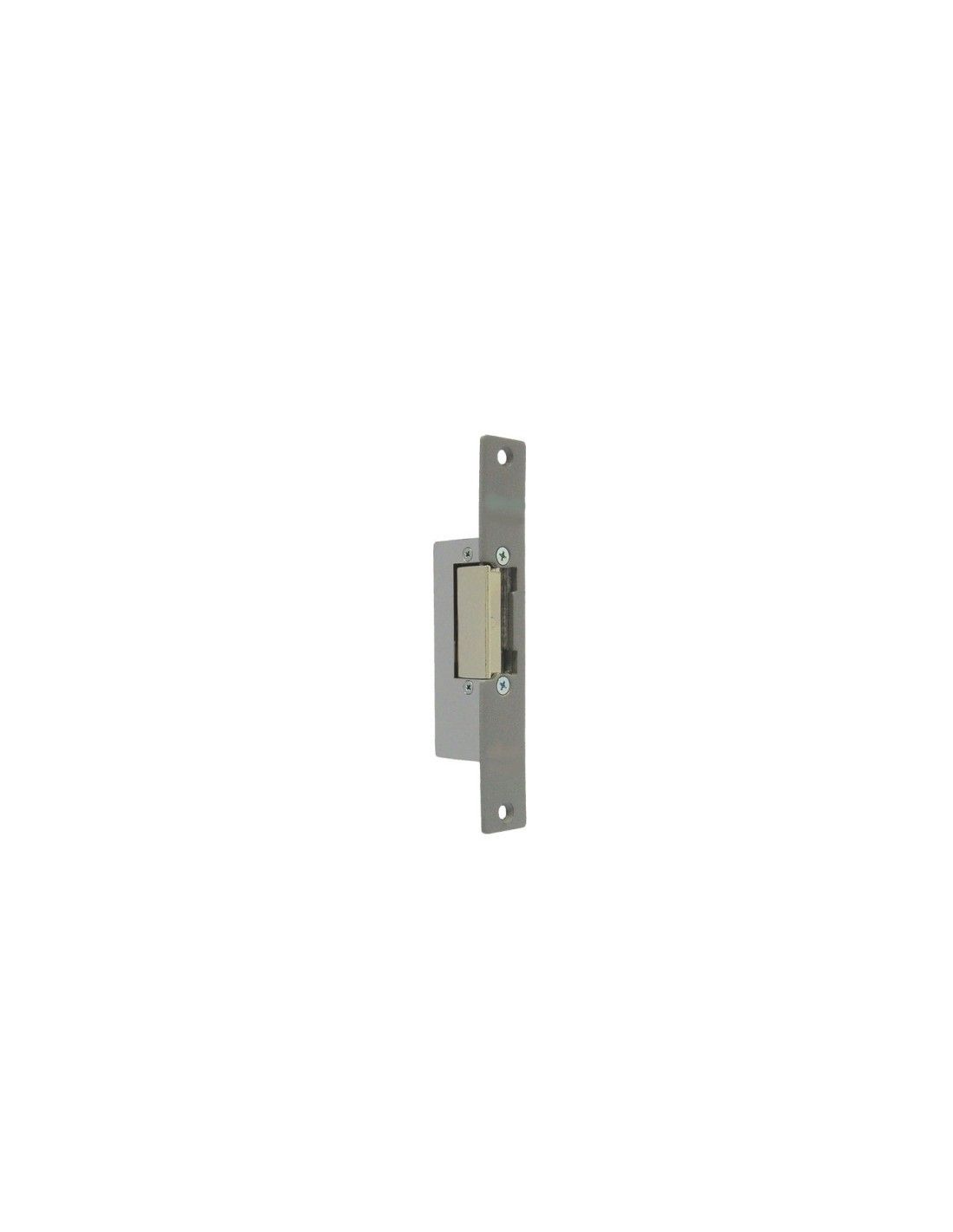

Door opener 300AD-412-S. FERMAX 3093

Description

Recessed.
The electric opener recessed luminaire is a device that is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the electric lock of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener flush mount is composed of an electrical mechanism and an armature.

300 SERIES
This door opener is composed by an electric mechanism series 300, whose dimensions are:
90(V)x20(H)mmx28(P)mm, the use in version MAX allows you to adjust the latch up to 4mm.
Recessed in frames of wood or metal. Are characterized by their rugged design and low power consumption in direct current.
Includes:

Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Non-symmetrical.
Allows you to change the hand, but taking into account that the body does not keep symmetry with the change from DIN RIGHT DIN LEFT.

ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.

There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE A-412_AUTOMÁTICO 12Vdc:
• A-412 (Automatic Functioning and activation at 12 Vdc): the electric lock is automatically unlocked when receiving a pulse voltage of 12Vdc. The opener will re-lock once it stops being tension and mechanically opens and again closes the door. For a correct installation the teton machine must be pressed in about 3mm for the floor protector to the door once it is closed.

D UNLOCK
The opener includes a lever for manual release, which inhibits its operation, allowing free access.

Armor of recessed Type S.
For passage doors.
Bezel grey metallic S-type that is attached to an electrical mechanism to form an electric lock recessed.
Dimensions: 25(H)x160(V) mm
