Description
Recessed.

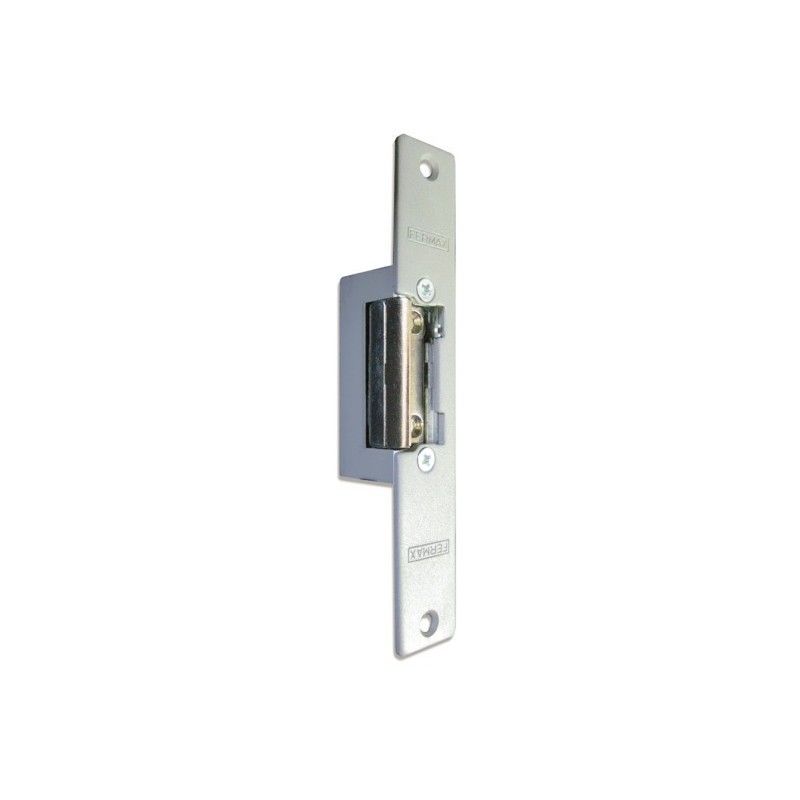

The electric opener recessed luminaire is a device that is installed in the door frame to control its opening from a remote location through an electrical device. In an installation of entryphone it is possible to activate the electric lock of the entrance to the building and allow access to the visit from your phone or monitor from the housing by pressing the button key door openers. A door opener flush mount is composed of an electrical mechanism and an armature.
Reversible (DIN Right or DIN Left).
Allows for opening both the right-and left-handed.
Symmetric.
Allows you to change the hand while maintaining the symmetry of the body.
ACCORDANCE WITH DIN REGULATIONS
The NORMATIVE DIN establishes the sense of opening of the door and called the type of door opener installed.
Looking at the door from the side on which the hinges are visible:
-If the hinges are to the left of the observer, it is a door opener to DIN Left.
-If the hinges are to the right of the observer, it is an electric lock DIN-Right.
There are several types of mechanisms for door openers, it depends on the TYPE OF OPERATION that is needed.
TYPE Aa_AUTOMÁTICO_INVISIBLE 12Vac:
• Aa (Auto Operation Invisible and activation at 12 Vac): the electric lock is automatically unlocked when receiving a pulse voltage of 12Vac. The opener will re-lock once it stops being tension and mechanically opens and again closes the door. It indicates that it is invisible because it does not have the teton normal Automatic door openers.
MAX LATCH ADJUSTABLE:
The opener includes a latch adjustable, allowing a precise adjustment between the latch and the slip of the lock, with a margin of 4mm. Allows the door leaf do not press on the latch of the door opener.
Specifications
Weight: 0,2595 kg
Product dimensions packed: 3,4x16,3x2,7 cm
EAN 13: 8424299281513
