Mobile call forwarding from the FERMAX Wi-box WIBOX device is a small module that allows you to connect one or more mobiles to your home's VDS monitor or phone by simply downloading the App and pairing it with your wifi. Perform all the functions you do from your VDS phone without even being at home
FERMAX 3266 WIBOX mobile call forwarding
Wi-Box is a WiFi device with VDS technology that allows you to divert calls received on the VDS monitor or phone from the home to your mobile phone through an app. You only need to download the Fermax Wi-Box application, available for free in the Play Store and App Store and pair it with the Wi-Box module.

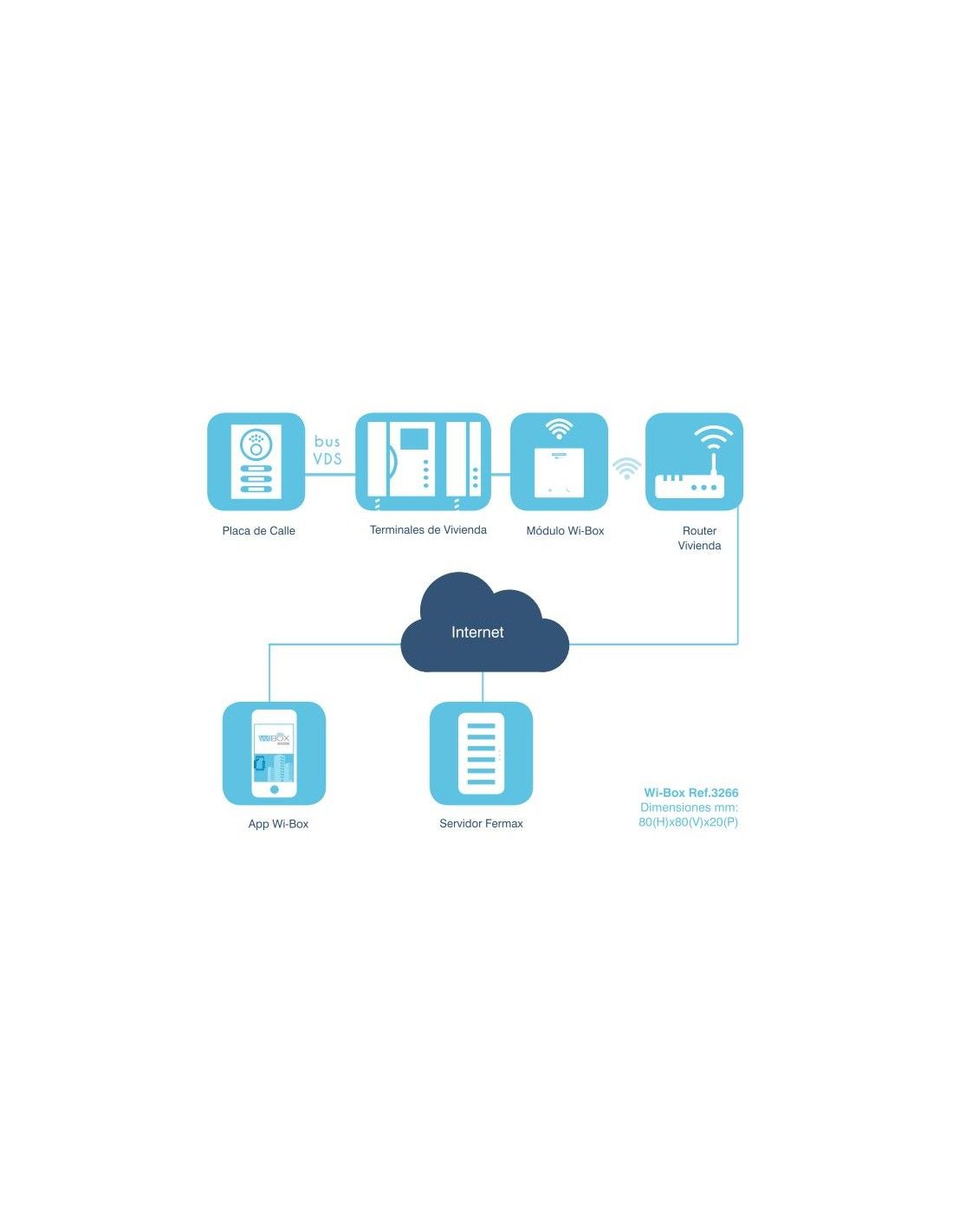

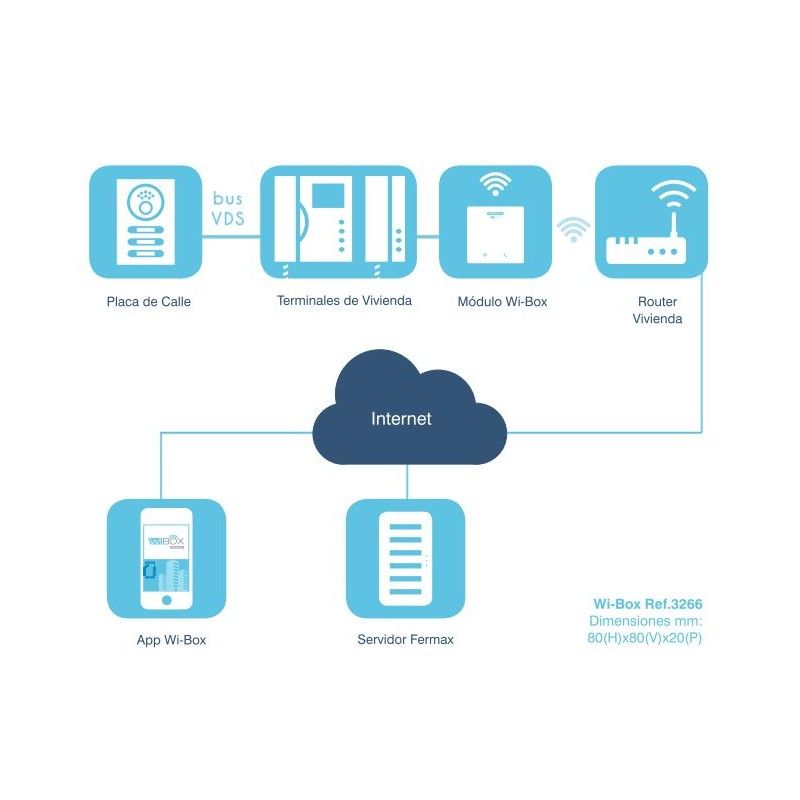

It is physically installed near the VDS terminal, in parallel and acts as one more terminal, and through the Wi-Box application it is possible to remotely perform the functions you do from the terminal of the house, and many more! for everyone from anywhere.
TECHNICAL SPECIFICATIONS
Product dimensions (Width x Height x Depth mm): 80 x 80 x 20 mm.//3.14 x 3.14 x 0.78 inches
Connectivity: Wifi (2.4 Ghz)
Date and time: 24h autonomy without power
Supply voltage: 18 Vdc (the module is powered directly from the terminal)
Maximum consumption: 2.7 W
Standby consumption (paired and connected): 1.8 W
Operating temperature (ºC); Humidity: [-5 ° C, + 40 ° C]; [0%, 90%]
Product weight (kg): 0.097
Line adapter: Yes. 75 Ohm resistor included for video impedance adjustment (V, M)
Cable terminals with molex connector: +, L, -, V, M, Ct, F1
What can you do with Wi-box
RECEPTION CALLS. CONVERSATION:
Speak or mute the microphone
DOOR OPENING
Opening of the main door.
AUTO START. SWITCH PLATE OR CHAMBER
Main, secondary or auxiliary camera display
CAPTURE OF PHOTOS
Image capture No limit during the conversation or before answering
VIDEO CAPTURE
Record video with a maximum duration of 90 seconds per conversation.
CALL TO CONSERJE
If the building has a concierge, you can call it from your mobile and wait for it to be answered
ACTIVATE ADDITIONAL FUNCTION
Opening a secondary door or turning on lights.
IMPORTANT: compatible terminals
VEO monitors
LOFT monitors
Citymax monitors
Smyle 7 "and 3.5" monitors
ILoft monitors
Phones: loft, extra loft, citymax and iLoft
