• Regulator to control luminaires, fluorescence or LED, with Ballast or Driver adjustable by 1-10Vdc signal.
• Control by means of conventional push buttons: short presses turn on/off and long presses regulate.
• Memory function: when turned on with the button, the lights return to the same level they had before they were turned off.
• Tablet format. Recessed mounting in register box.
• It has a relay that allows the physical disconnection of the luminaires.
• Possibility of adjusting the dimming speed while the button is held down.

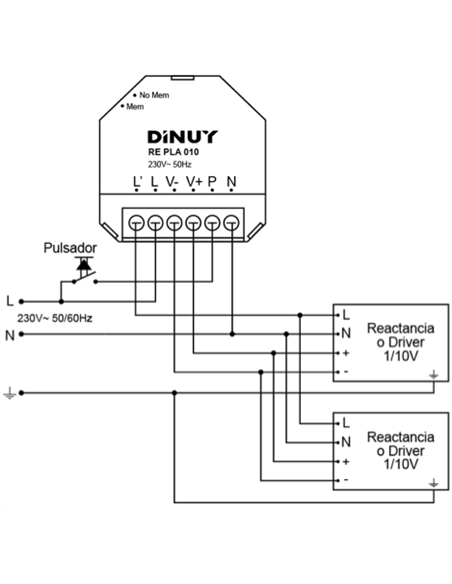

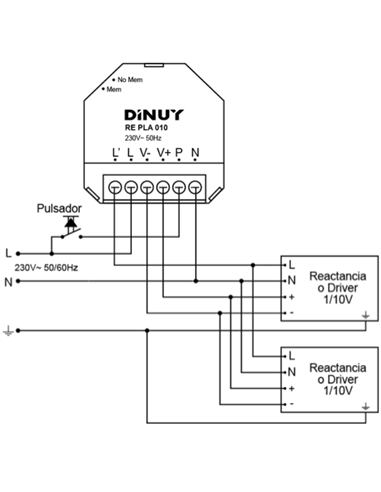

Product reference RE PLA 010
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption < 5W
Output Channels 1
Relay breaking power (A) 5
Maximum power (VA) 275
Load Type Ballast or Driver 1-10Vdc
Maximum absorption current per 1/10V (mA) 500
Maximum injection current per 1/10V (mA) 250
Maximum number of devices 125
Pushbutton control
Maximum number of illuminated pushbuttons 0
No. of modules 0
Type of connection terminals Captive screws
Cable section (mm2) 2.5
Storage temperature (ºC) (min) -30
Temperature of storage (ºC) (max) 70
Installation Registration box
Operating Temperature (ºC) (min) 0
Operating Temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE 20324
According to the Low Voltage Directives 2014/35/EU; Electromagnetic Compatibility 2014/30/EU; 2011/65/EU
In accordance with the UNE-EN 60669-1:2018 Standard; UNE-EN 60669-2-1:2005, +erratum:2008, +/A1:2010, +/A12:2011; UNE-EN 60669-2-3:2007
