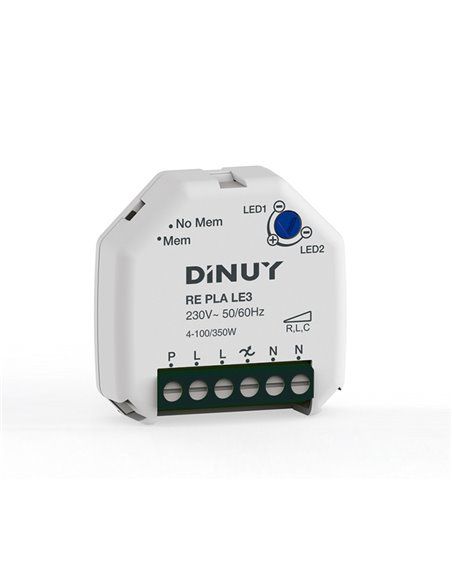

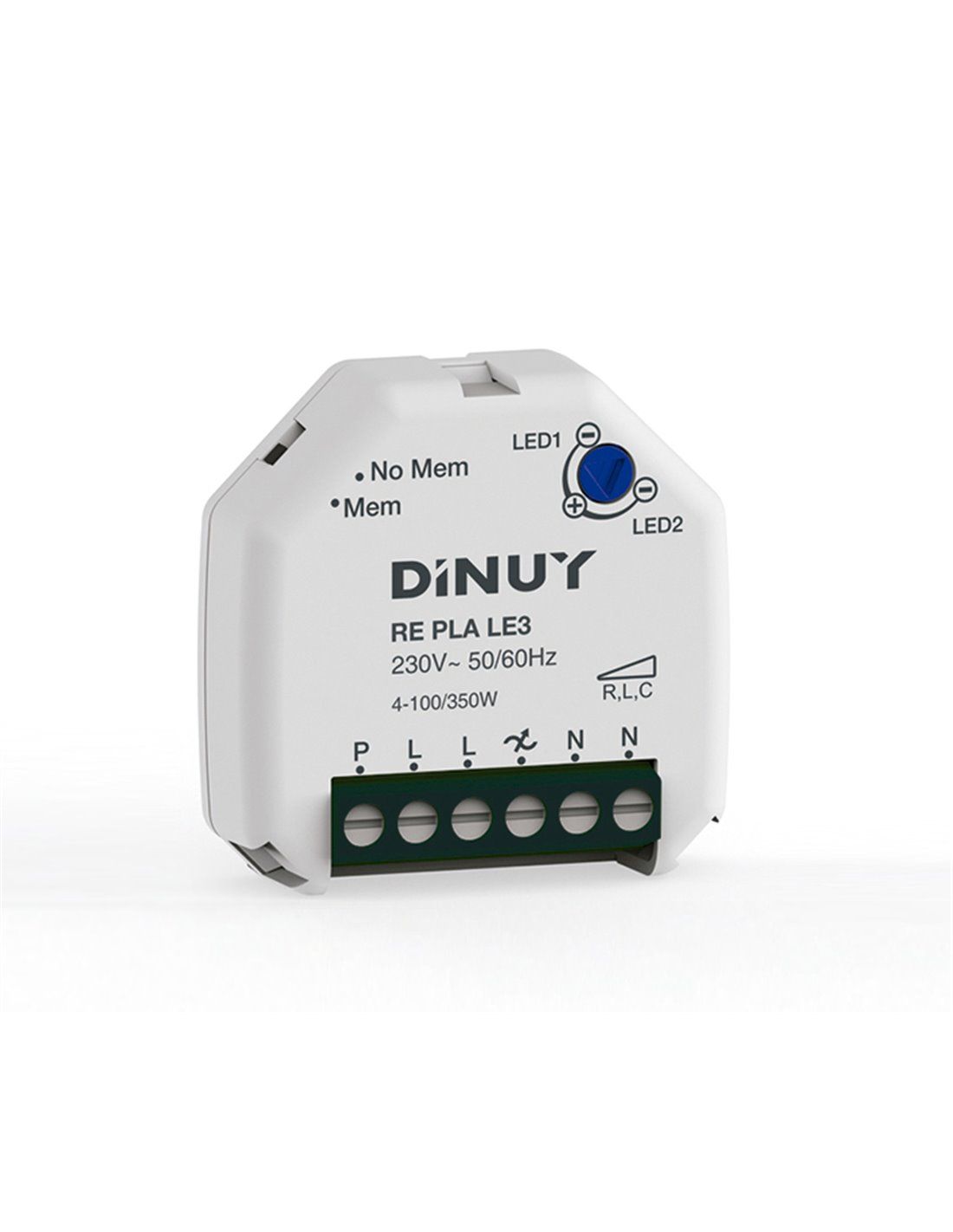

Regulator for led lamps with terminals

DINUY RE PLA LE3
Out of stock
€91.03
VAT included

• Regulator, in tablet format, specially developed to control dimmable LED lamps.
• Compatible with:

– 230V LED lamps dimmable at the beginning of the phase.
– 230V LED lamps dimmable at end of phase.
– 12V LED lamps dimmable with electronic transformer.

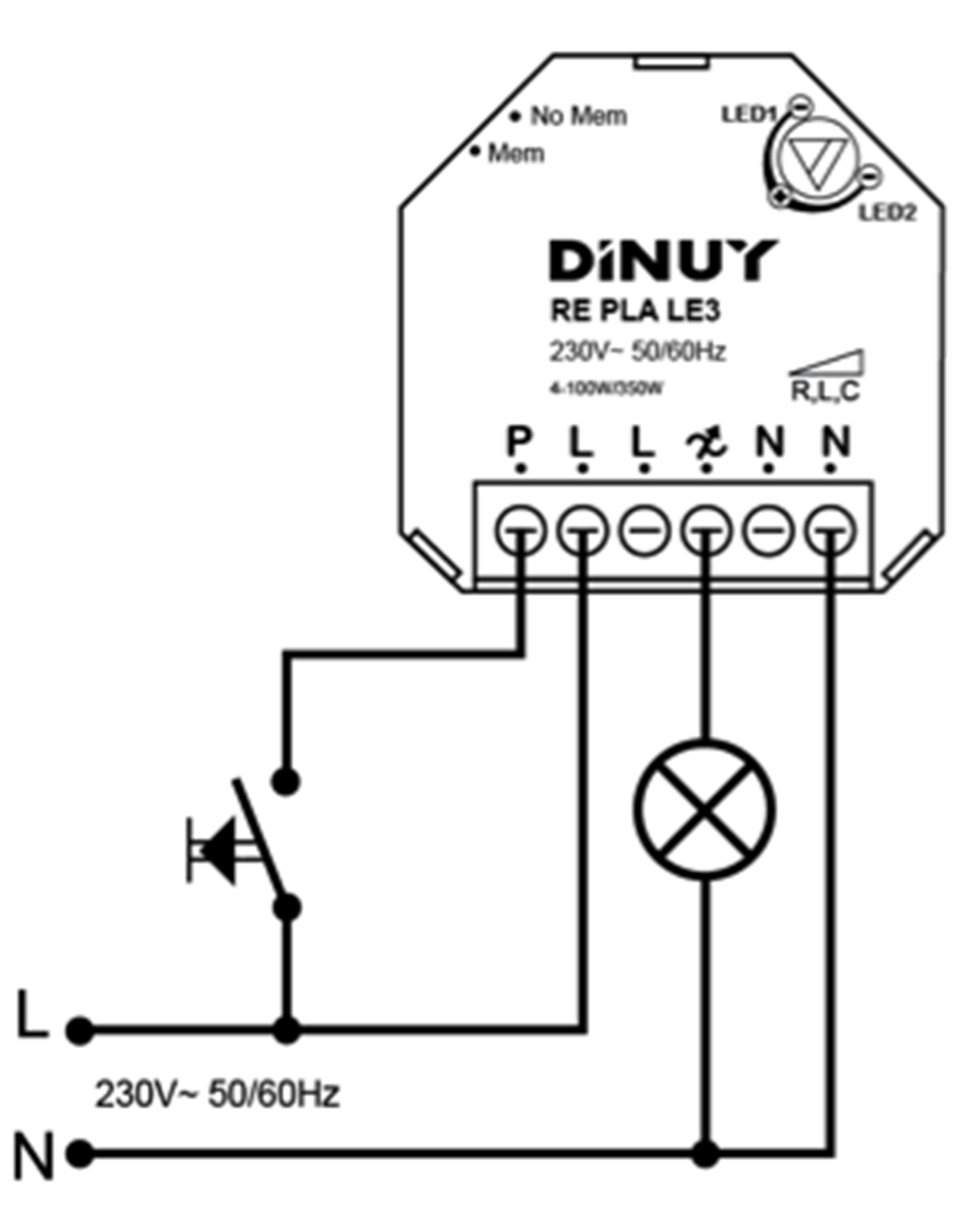

• Control by means of conventional pushbuttons: short presses turn on/off and long presses dim.
• Memory function: when switched on with the button, the luminaires return to the same level they had before they were switched off.

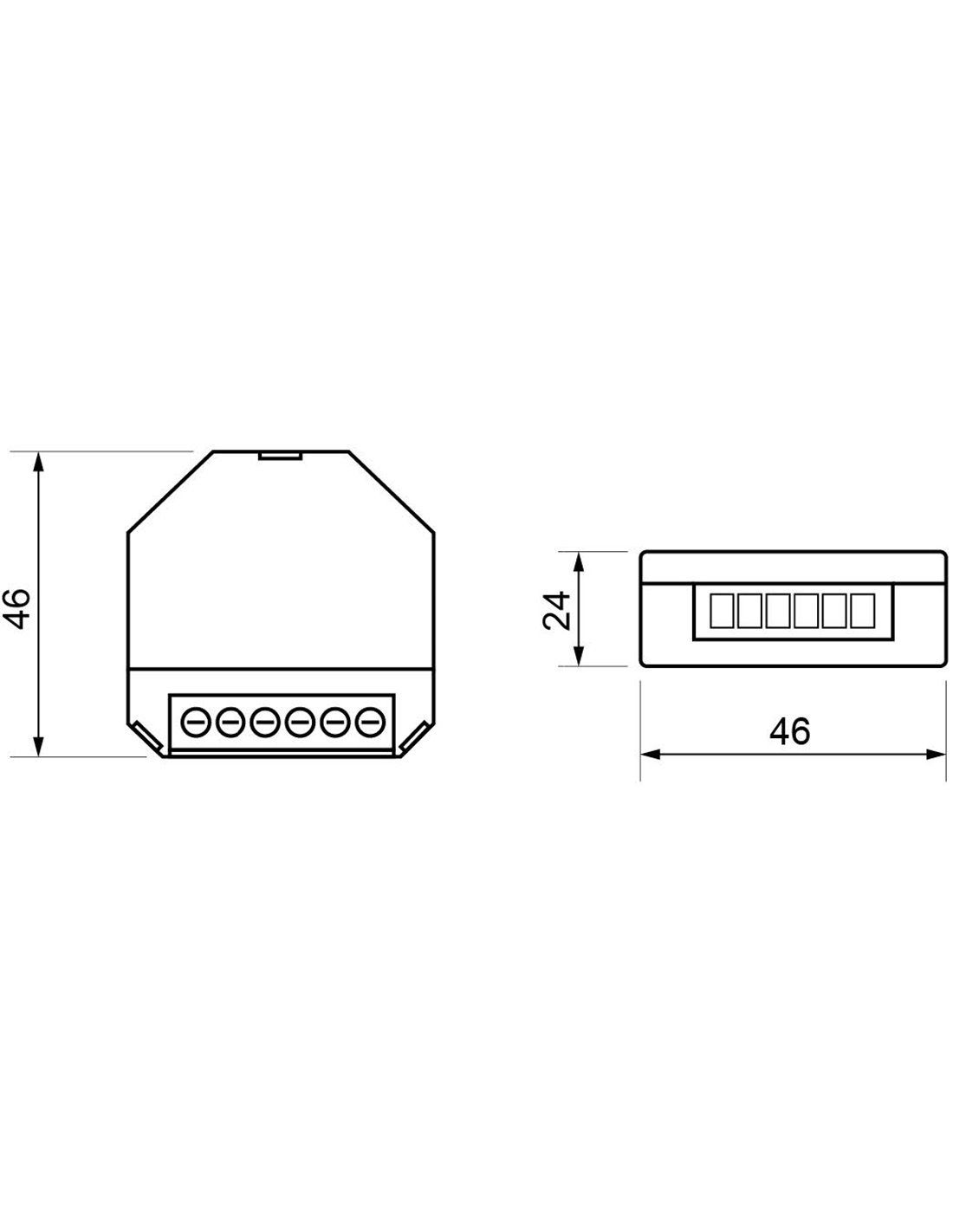

• Flat format. Mounting in a register box.
• Possibility of adjusting the minimum level of regulation of the lamps, avoiding unwanted flickering or turning off at low levels.
• Protected against overloads and short circuits. It incorporates thermal protection that reduces the intensity of the light in case of overheating.

Description

Product reference RE PLA LE3
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 2VA
Maximum Power (VA) 0
Load Type Dimmable LED lamps
230V LED lamps dimmable at the beginning of phase 4W ~ 100W
230V LED lamps dimmable at the end of phase 4W ~ 350W
12V Dimmable LED lamps with electronic transformer 6 transformers x 50W and 1 lamp/transformer or 3 transformers x 100W and 1 lamp/transformer
Maximum absorption current per 1/10V (mA) 0
Maximum number of devices 0
Push button control
Maximum number of illuminated pushbuttons 3
No. of modules 0
Type of connection terminals Captive screws
Cable section (mm2) 2.5
Storage temperature (ºC) (min) -30
Storage temperature (ºC) (max) 70
Installation Registration box
Operating temperature (ºC) (min) 0
Operating temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE 20324
According to Low Tens Directives ion 2014/35/EU; Electromagnetic Compatibility 2014/30/EU; 2011/65/EU
In accordance with the UNE-EN 60669-1:2018 Standard; UNE-EN 60669-2-1:2005, +erratum:2008, +/A1:2010, +/A12:2011; UNE-EN 60669-2-3:2007

Product Details

EAN
8422447015775
Manufacturer
Dinuy
Reference
DINUY RE PLA LE3
Nominal voltage (V)
12/230
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
GPSR EU responsible person
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
GPSR e-mail manufacturer
info@dinuy.com
