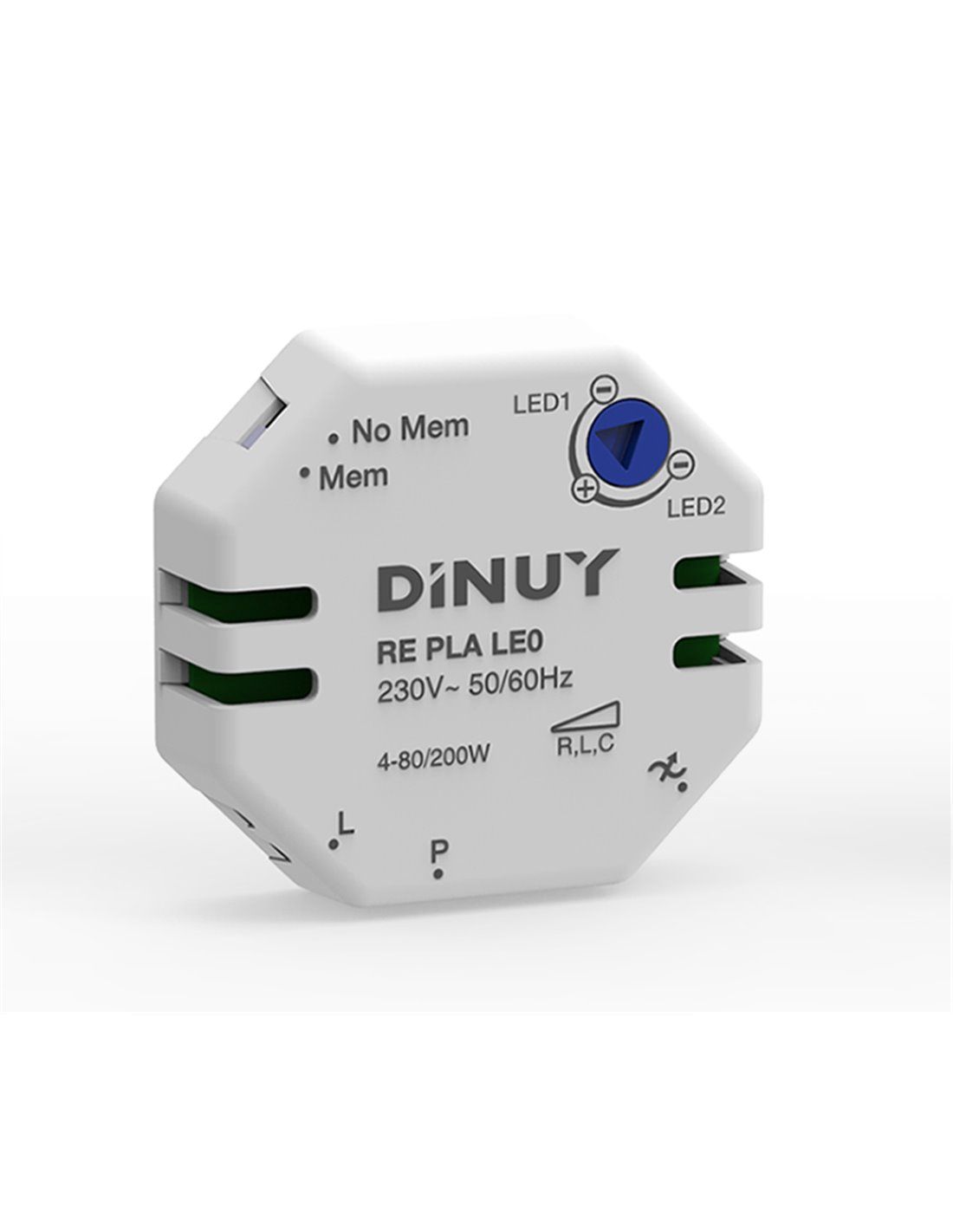

• Regulator, in tablet format, specially developed for the control of dimmable LED lamps, without the need for the Neutral, with 2 wires.
• Compatible with:
– 230V LED lamps dimmable to start of phase.
– 230V LED lamps adjustable at the end of phase.
– 12V LED lamps with electronic transformer.
• Control by means of conventional buttons: short presses turn on/off and presses maintained dim.
• Memory function: when switched on with the button, the luminaires return to the same level they had before they were switched off.

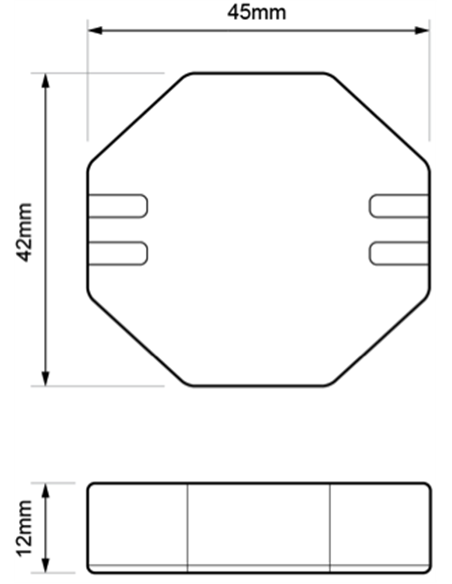

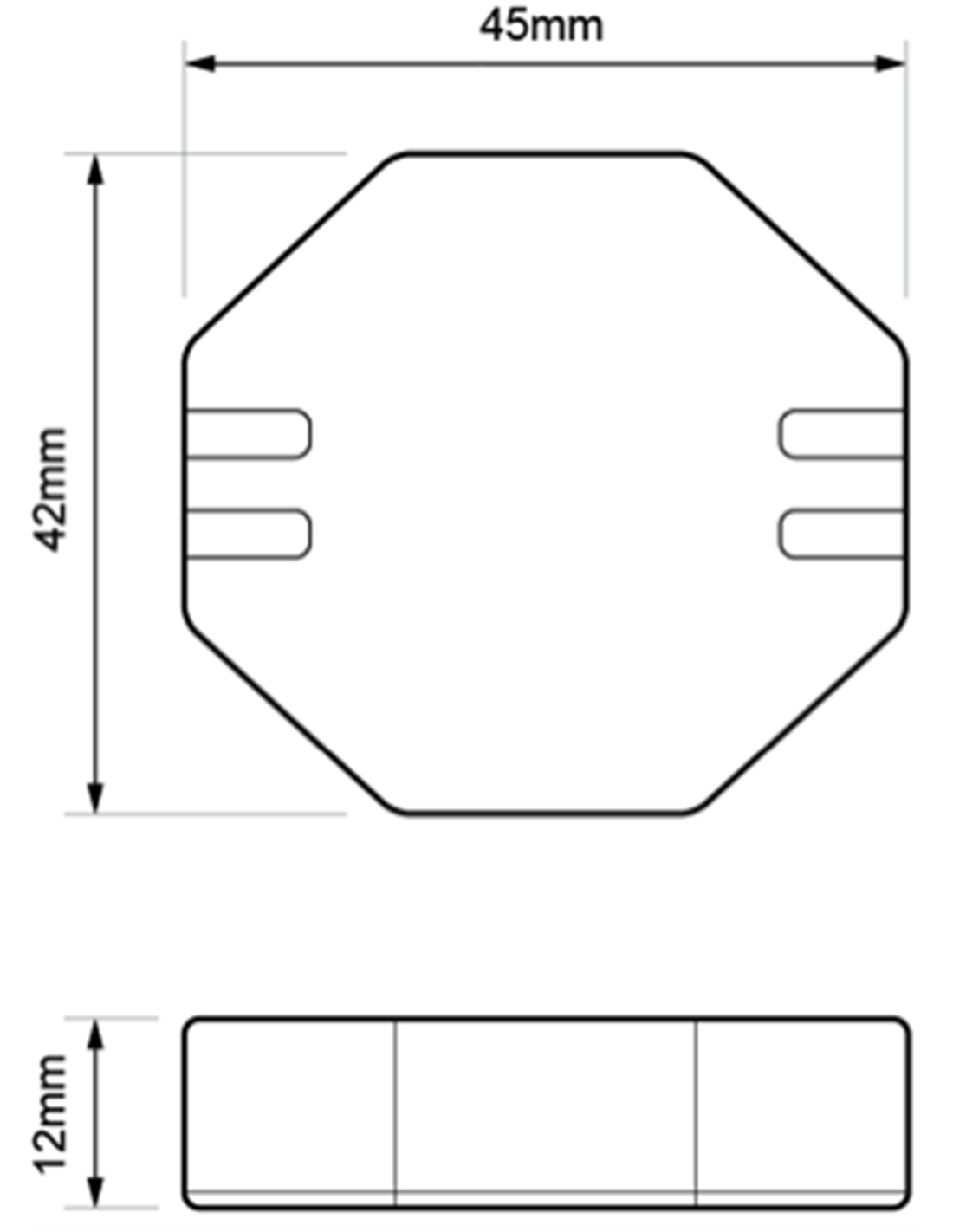

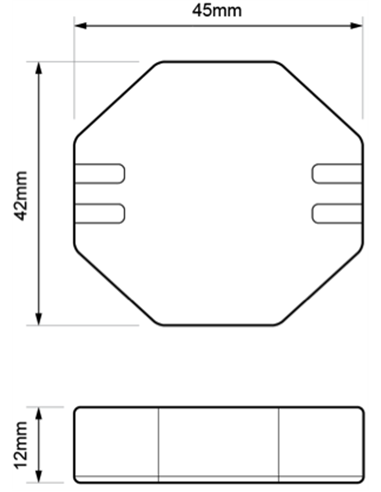

• Extra-flat format, only 12mm thick. Mounting in a mechanism box, behind the button.
• Possibility of adjusting the minimum dimming level of the lamps, avoiding unwanted flickering or turning off at low levels.
• Protected against overloads and short circuits. It incorporates thermal protection that reduces the intensity of the light in the event of overheating.

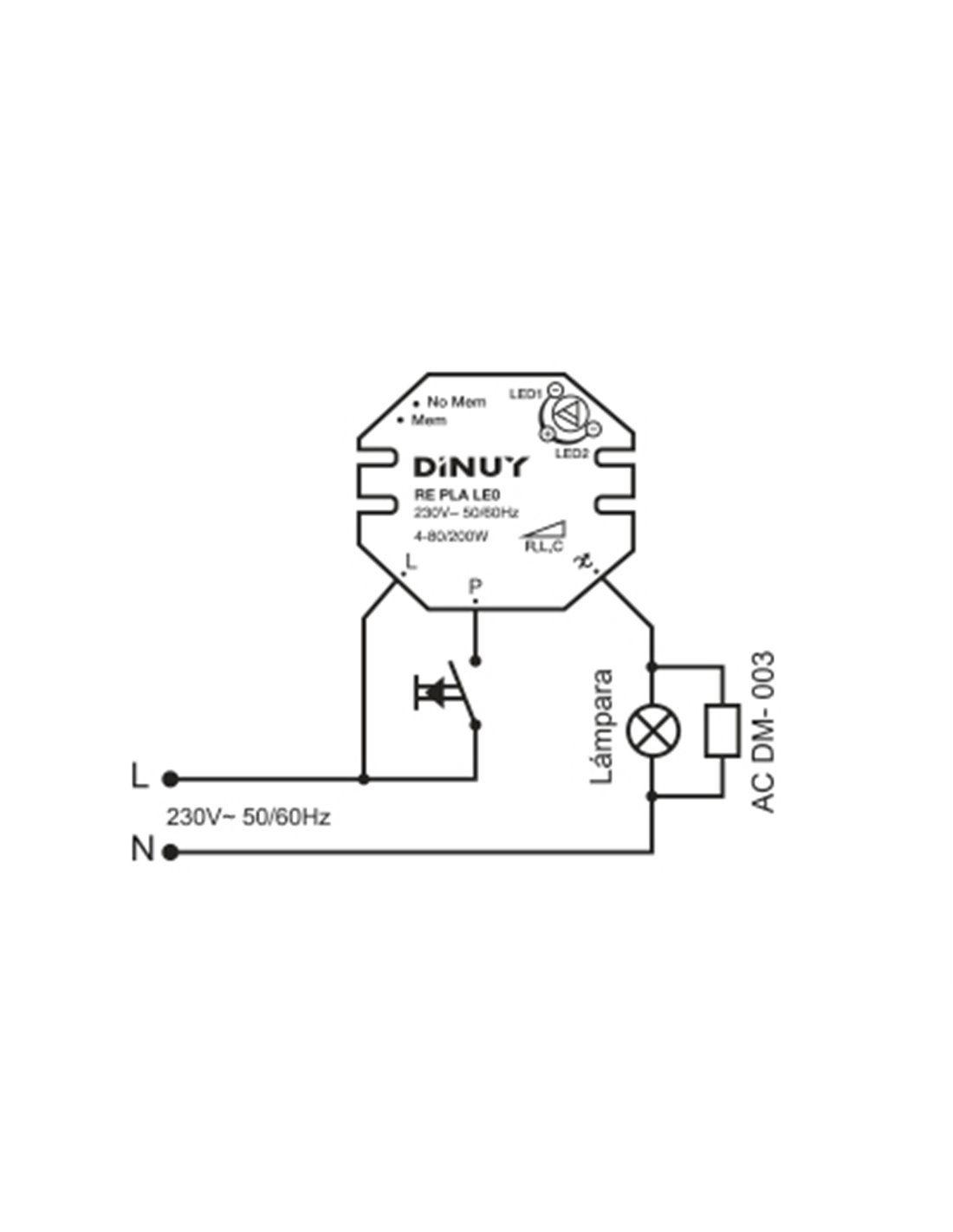

• Application: installations where you want to dim LED lamps and do not have them, or it is difficult to bring the Neutral to the dimmer.
Product reference RE PLA LE0
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 0.7W
Maximum Power (VA) 0
Load Type Dimmable LED lamps
230V LED lamps dimmable at the beginning of phase 4W ~ 80W
230V LED lamps dimmable at the end of phase 4W ~ 200W
12V LED lamps dimmable with transformer electronic 4 transformers x 50W and 1 lamp/transformer or 2 transformers x 100W and 1 lamp/transformer
Maximum absorption current per 1/10V (mA) 0
Maximum number of devices 0
Push button control< br/>Maximum No. of Illuminated Pushbuttons 0
No. of Modules 0
Cable section (mm2) 0
Storage temperature (ºC) (min) -30
Storage temperature ( ºC) (max) 70
Installation Mechanism box
Operating Temperature (ºC) (min) 0
Operating Temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE 20324
According to the Directives Low Voltage Directive 2014/35/EU; Electromagnetic Compatibility 2014/30/EU; 2011/65/EU
In accordance with UNE-EN 60669-2-1:2005, +erratum:2008, +/A1:2010, +/A12:2011
