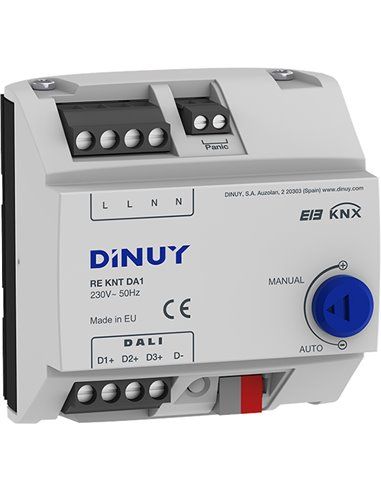

Product reference RE KNT DA1
Supply Voltage (V) 110VAC - 230VAC
Frequency (Hz) 50
Own Consumption 10W
Output Channels 3
Type of Load Ballast or DALI Driver
Maximum number of devices 128
DIN Rail Installation
No. of Modules 5
KNX Bus Control
Programming through ETS4 or later
Compatible with KNX
Type of connection terminals Captive screws
Cable section (mm2) 6
Storage temperature (ºC) (min) -30
Storage temperature (ºC ) (max) 70
Operating Temperature (ºC) (min) -5
Operating Temperature (ºC) (max) 45
Environmental Protection IP20 according to UNE 20324
According to the Safety Directives 2014/35/EU; EMC 2014/30/EU
According to the KNX Standard 2.0//EN60669-1, 2-1 and 2-3
• DALI Dimming Actuator with 3 Broadcast output channels.
• Supports up to 64 DALI Ballasts or Drivers per channel (128 in total).
• Unidirectional Communication and Broadcast with the luminaires.
• Incorporates overload and short-circuit protection.
• Modular format (5 modules wide), DIN rail installation.
• It has a potentiometer for manual control, without the need for the Bus, which allows checking the perfect operation of the dimmer with the lamps.
• Anti-panic input for security systems.
• Programming by ETS: ETS4 program or later versions
Subscribe To When In Stock
You have successfully subscribed to this product
Description
Product Details
- EAN
- 8422447013993
- Manufacturer
- Dinuy
- Reference
- DINUY RE KNT DA1
- Certification
- CE
- Safety warning
- No
- GPSR Safety warning
- No
- GPSR Manufacturer information
- Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
