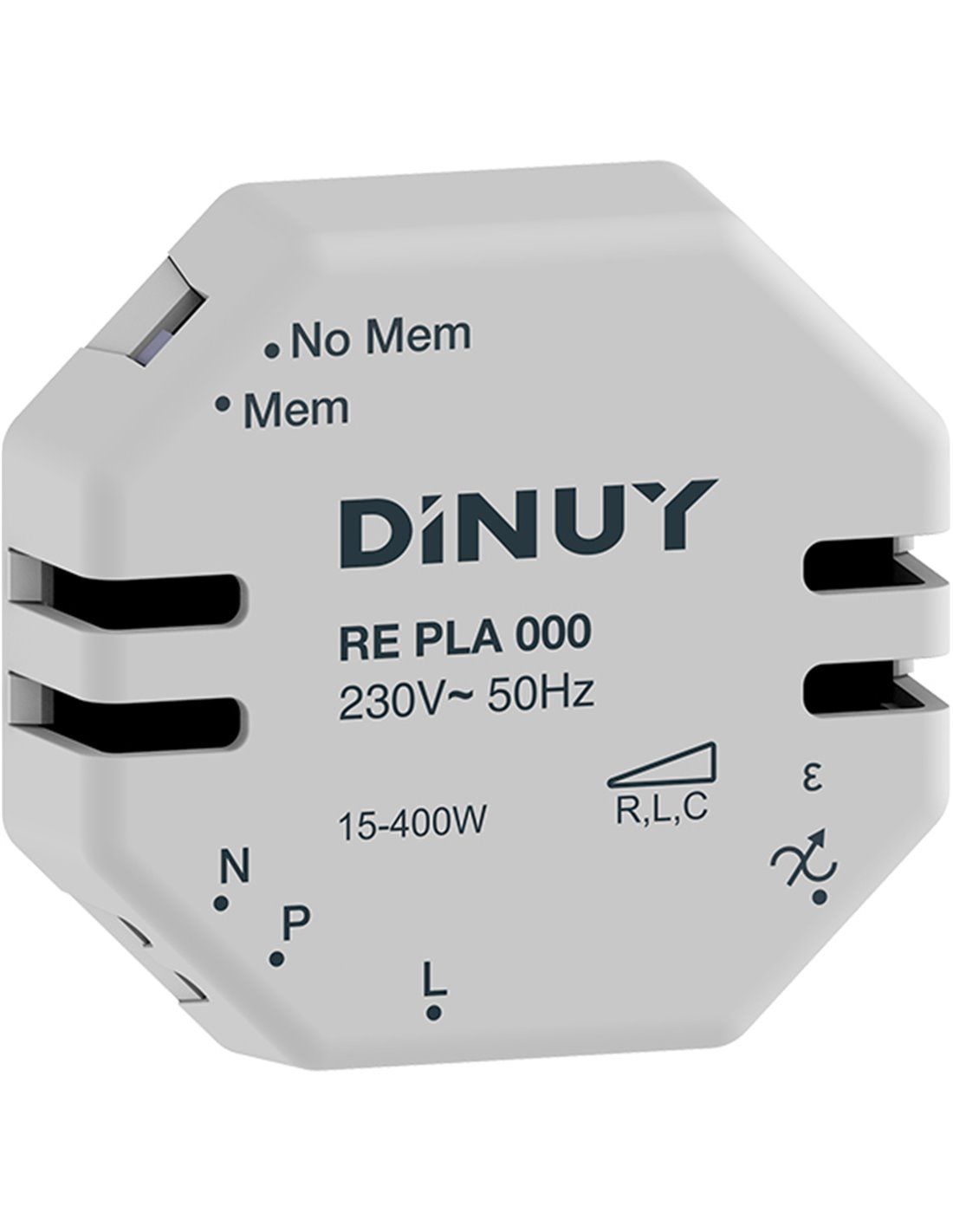

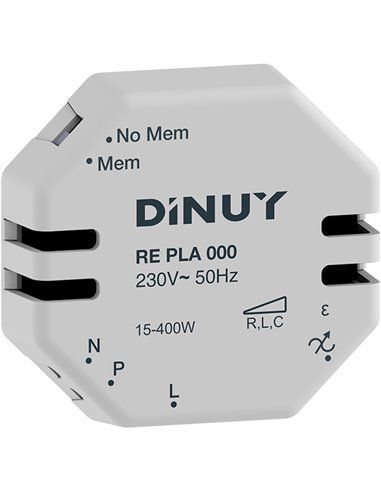

Dimmer 400W incandescent 320W halogen

DINUY RE PLA 000
Out of stock
€74.62
VAT included

• IGBT regulator, in chip format, developed for the control of RLC loads.
• Maximum load of 400W.
• Compatible with:

– Incandescent and Halogen 230V .
– 12V halogen lamps with ferromagnetic transformer.
– 12V halogen lamps with electronic transformer (type L or C).

• Control by means of conventional buttons: short presses turn on/off and long presses regulate.
• Memory function.

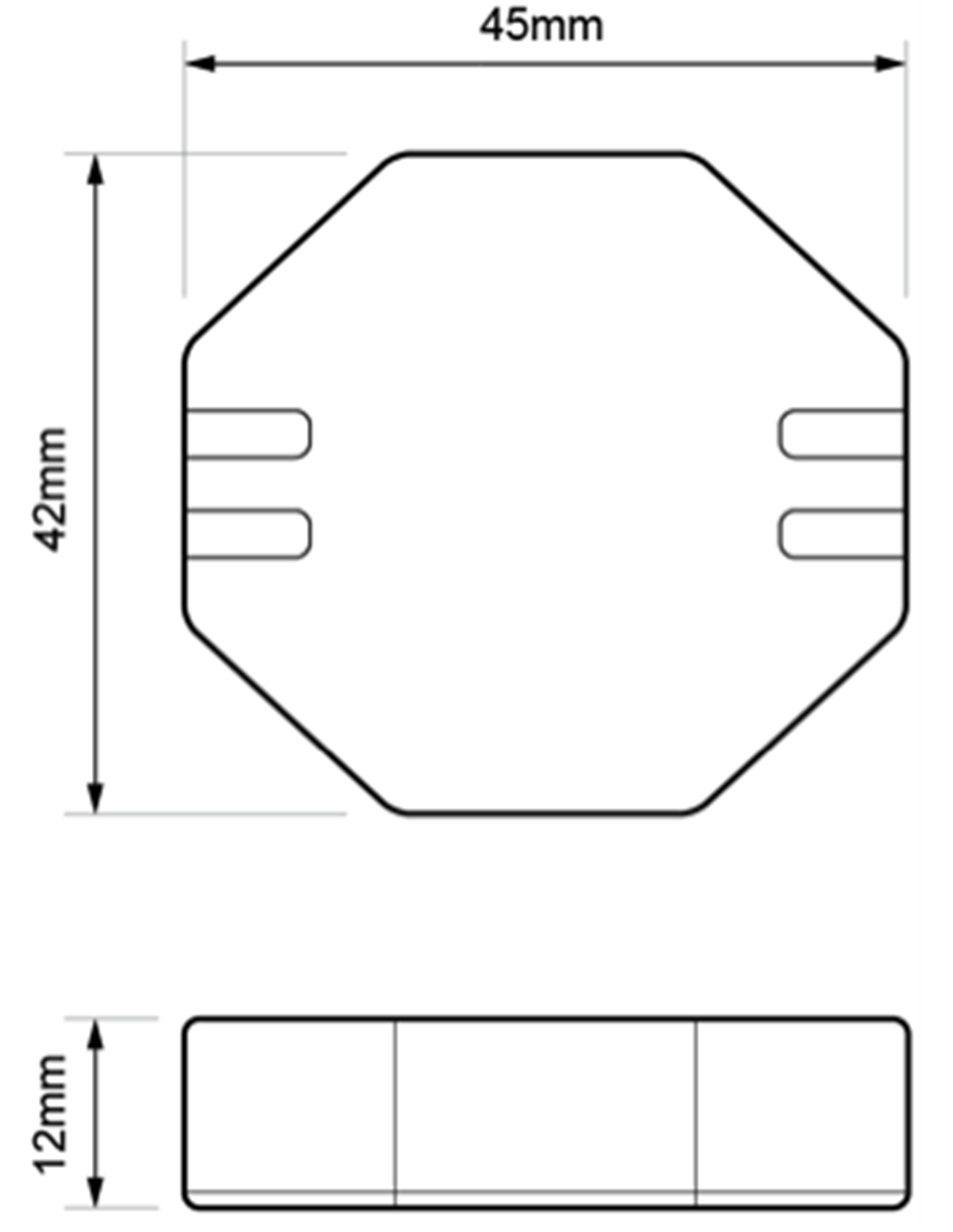

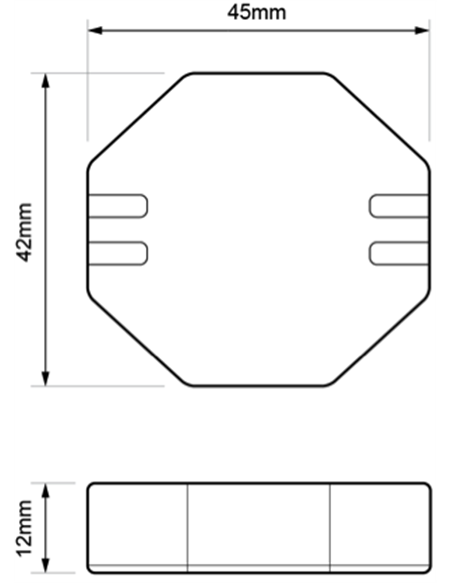

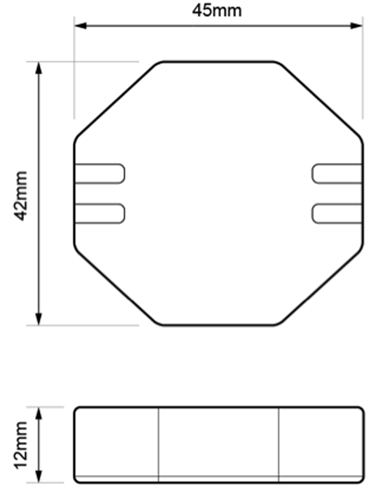

• Extra-flat format, only 12mm thick. Assembly in mechanism box.
• Protected against overloads and short circuits. It incorporates automatic shutdown protection against overheating and thermal safety protector.

Description

Product reference RE PLA 000
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 3VA
Output Channels 1
Maximum power (VA) 0
Type of Load Incandescent and Halogen
Incandescent and Halogen 230V (W) 400
Halogen with ferromagnetic transformer (W) 250
Halogen 12V with electronic transformer ( W) 400
Maximum absorption current per 1/10V (mA) 0
Maximum number of devices 0
Push button control
Maximum number of illuminated pushbuttons 3
No. of modules 0
Cable section (mm2) 0
Storage temperature (ºC) (min) -30
Storage temperature (ºC) (max) 70
Installation Mechanism box< br/>Operating Temperature (ºC) (min) 0
Operating Temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE 20324
According to UNE EN 60669- 2-1

Product Details

EAN
8422447015409
Manufacturer
Dinuy
Reference
DINUY RE PLA 000
Nominal voltage (V)
230V
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
GPSR EU responsible person
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
