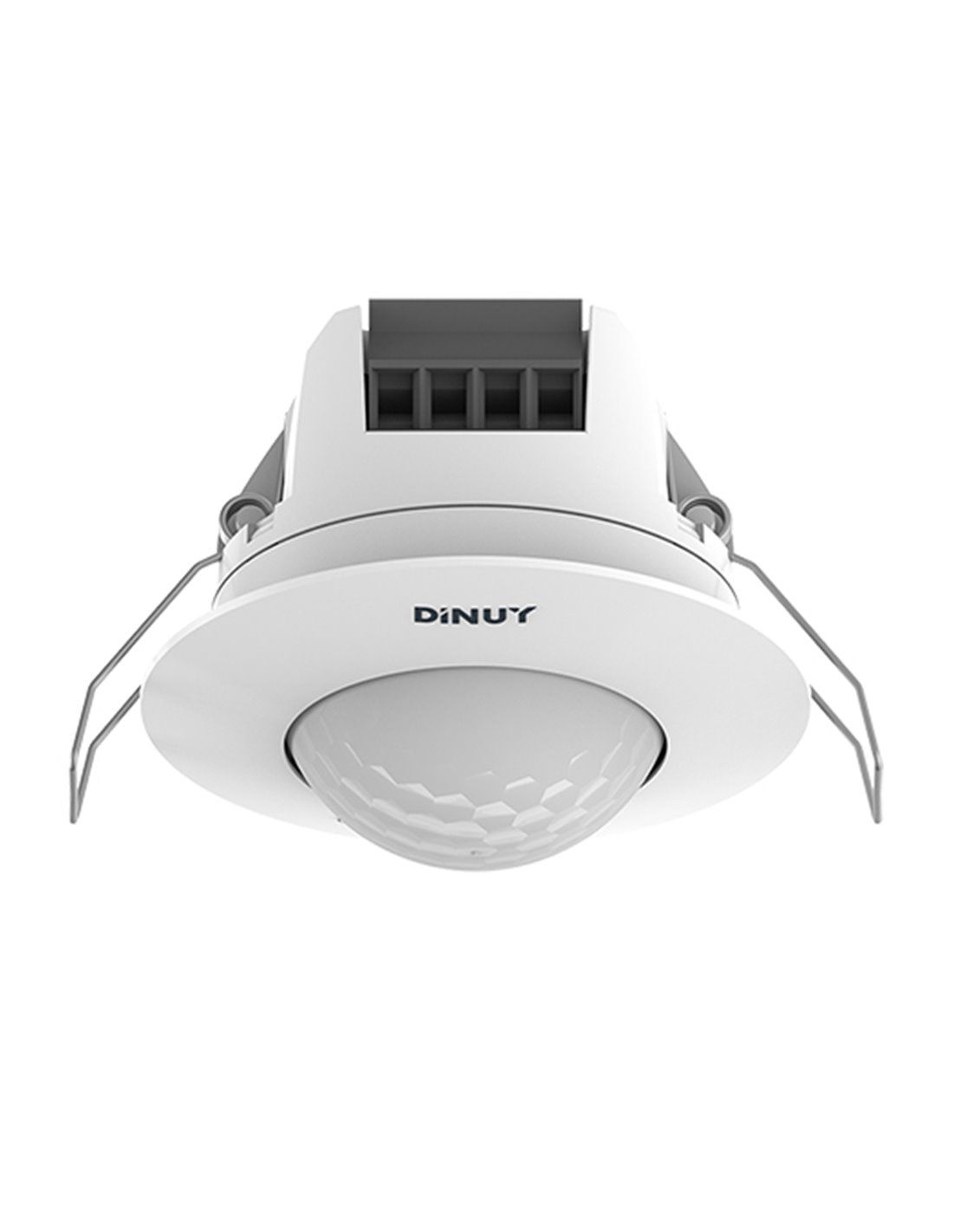

Recessed ceiling detector 1 channel 10A

DINUY DM TEC 008
Available
€87.20
VAT included

• Motion detector, with PIR technology, for recessed installation in the ceiling, indoors.
• Timing and brightness level adjustable by means of potentiometers.
• Maximum coverage of 360º and Ø7m, at 2, 5m high.
• It incorporates a 10A relay and zero-pass switching control, which allows the protection of its relay.
• Valid for all types of lamps, including LEDs and Fluorescence .

132 Items

Description

Product reference DM TEC 008
Supply Voltage (V) 230VAC
Frequency (Hz) 50
Own Consumption < 1W
Output Channels 1
Relay breaking power (A) 10
LED lamps (W) 200
Incandescent and Halogen 230V (W) 2000
Halogen 12V with electronic transformer (W) 2000
Halogens with ferromagnetic transformer (W) 2400
Maximum number of devices 0
Voltage-free contact No
Detection angle (º) 360
Mounting height (m) 2.5
Detection diameter (m) 7
Maximum number of extra motion sensors 0
Minimum time delay (seconds) 6
Maximum time delay (minutes) 12
Brightness level (lux) (min) 3
Brightness level (lux) (max) 100
INFRARED Technology (PIR)
Recessed ceiling mounting
Fluorescent lamps ( VA) 600
Allows contactor Yes
Zero crossing Yes
Operating Temperature (ºC) (min) -10
Operating Temperature (ºC) (max) 45
Environmental Protection IP40, Class II

Product Details

EAN
8422447016383
Manufacturer
Dinuy
Reference
DINUY DM TEC 008
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
GPSR EU responsible person
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / info@dinuy.com / +34 943627988
GPSR e-mail manufacturer
info@dinuy.com
